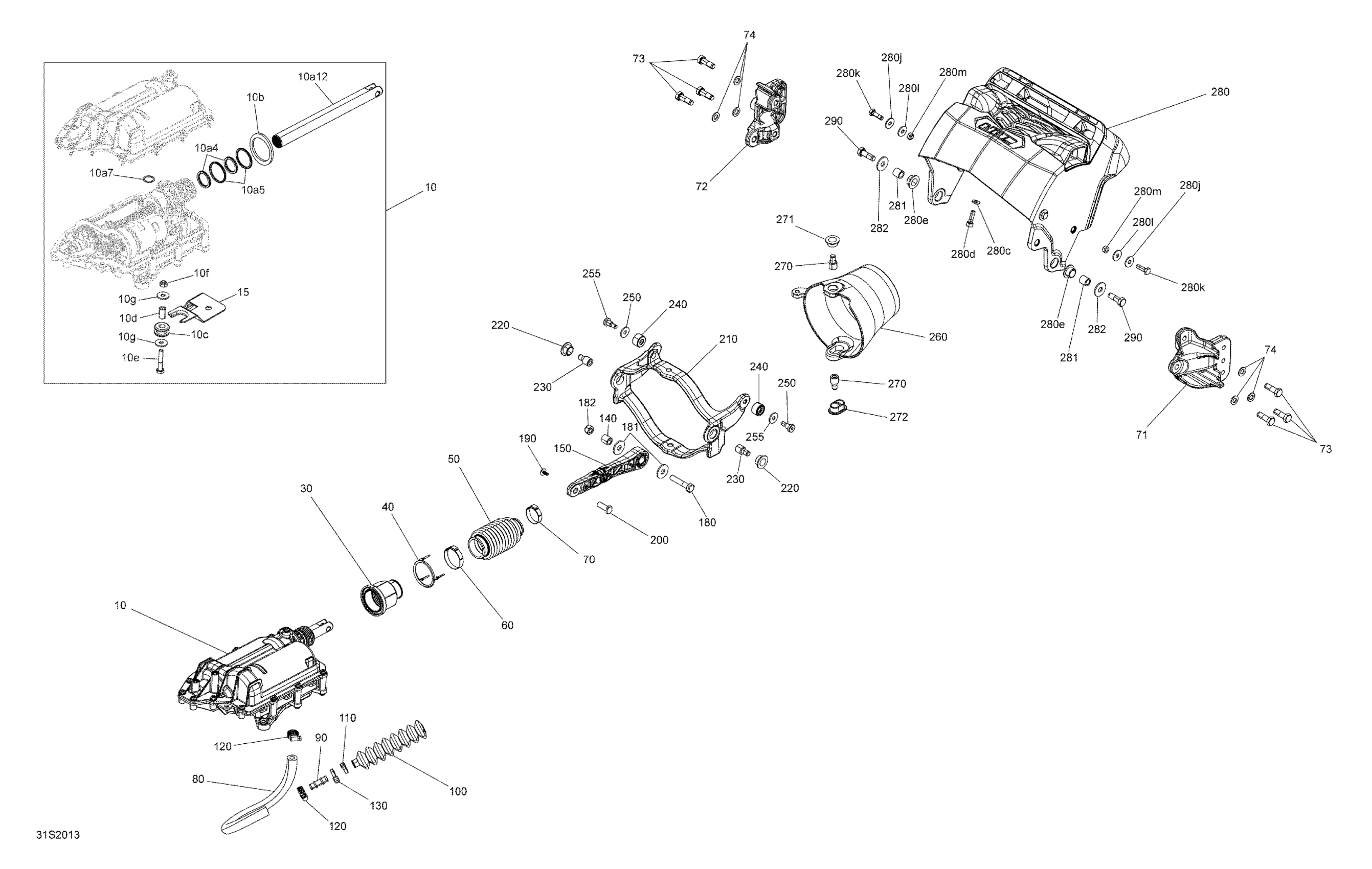

Sea-doo 001 - Spark 900 ACE, 2020 05- Reverse Diagram
#
10<10g
Actuator | Includes 10 to 10j
278003606
$829.99
10a4
O-Ring
279000108
$6.03
10a5
O-Ring
293300107
$1.01
10a7
O-Ring
293300187
$4.89
10a12
Output Shaft
278003027
$54.99
10b
Gasket
268000208
$15.37
10c
Grommet
293720104
$5.29
10d
Spacer
271001020
$12.99
10e
Hex. Screw M6 X 35
207063560
$2.22
10f
Elastic Stop Nut M6, Brass
232561200
$4.23
10g
Flat Washer M6, Stainless
234062600
$0.77
15
Actuator Support
268000210
$20.99
30
IBR Nut
268000308
$12.59
40
Rubber Gasket
277001977
$2.61
50
Boot
268000186
$27.49
60
Oetiker Gear Clamp, 36.5-706R
509000529
$9.95
70
Crimp Clamp
293650099
$4.29
71
LH Reverse Support
268000163
$27.99
72
RH Reverse Support
268000166
$31.99
73
Hex. Screw M8 X 25, Scotch Grip
207382560
$2.43
74
Flat Washer M8, Stainless
234080600
$1.48
80
Was 509000407 Hose 8 mm
219704420
$50.99
90
Fitting-Straig
293710157
$8.29
100
Inner Boot This part replaces 268000345.
268000211
$12.06
110
Tie Wrap 142 mm
293750002
$1.25
120
Tridon Gear Clamp
293650171
$3.09
130
Tie Wrap 142 mm
293750002
$1.25
140
Spacer
271001039
$16.49
150
Reverse Rod
268000187
$28.99
180
Hex. Screw M8 X 40
207084060
$2.22
181
Flat Washer 8 mm, Stainless
234082600
$2.43
182
Hex. Elastic Nut M8 Brass
232581200
$2.22
190
Hexalob Screw M4 X 10
250000565
$2.11
200
Shoulder Pin
268000309
$19.99
210
Trimming Ring
268000179
$95.99
220
Venturi Bushing
293900007
$5.45
230
Socket Head Screw M8 X 13
268000141
$9.17
240
Roller Bushing Kit | Includes 240 to 240b
295501160
$4.29
250
Screw-Socket Shoulder M8X8
250000775
$8.29
255
Flat Washer M6, Stainless
234062600
$0.77
260
Nozzle
267000705
$77.99
270
Socket Head Screw M8 X 13
268000141
$9.17
271
Venturi Bushing
293900007
$5.45
272
Plastic Bushing
293900010
$9.59
280<280m
Reverse Gate Ass'y | Includes 280 to 280p This part replaces 268000303.
295501255
$174.99
280c
Stainless Flat Washer M6
234061600
$0.33
280d
Socket Head Screw M6 X 20, Scotch Grip
205562060
$0.76
280e
Venturi Bushing
293900007
$5.45
280j
Flat Washer M6, Stainless
234062600
$0.77
280k
Hex. Screw M6 X 20, Scotch Grip
207362060
$1.47
280l
Flat Washer M6, Stainless
234062600
$0.77
280m
Elastic Stop Nut M6, Brass
232561200
$4.23
281
Spacer
271001039
$16.49
282
Flat Washer 8 mm, Stainless
234082600
$2.43
290
Hex. Screw M8 X 25, Scotch Grip
207382560
$2.43
