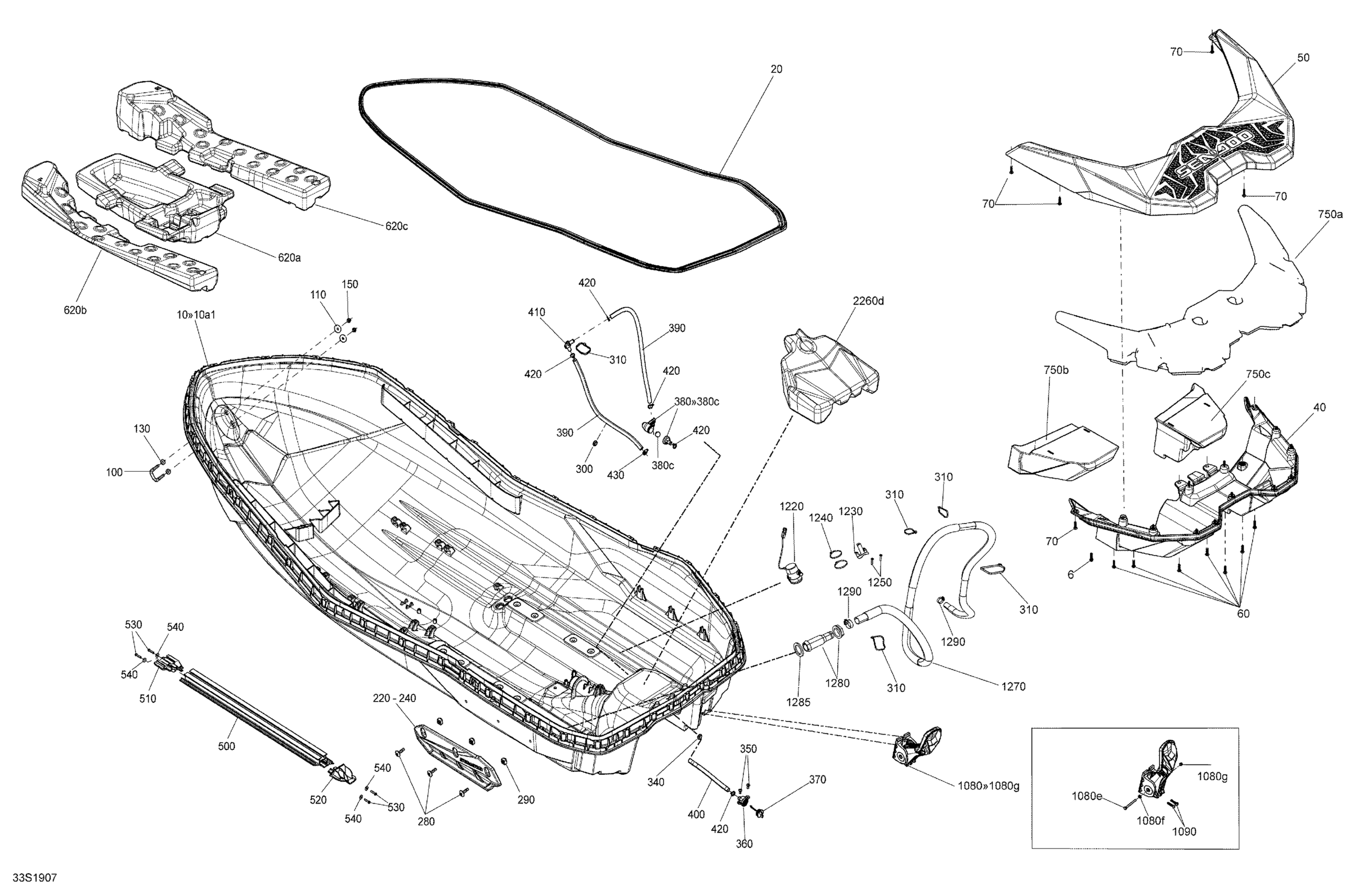

Sea-doo Spark 900 ACE, 2019 Hull Diagram

#

Description
Price

10

Hull | Includes 10 to 10a

295501188

$1,319.97

10a

Hull Insert Kit | Includes 10a to 10a3

295501139

$34.42

20

Seal Joint

293250338

$50.67

100

U-Clamp

292000933

$32.47

110

Flat Washer M8.5 x 18

293050001

$1.29

130

Flat Washer 8 mm, Stainless

250200175

$1.29

150

Hex. Elastic Nut M8 Brass

232581200

$1.29

220

RH Sponson

292002009

$64.32

240

LH Sponson

292002008

$64.32

280

Torx Screw M8 X 35

250000697

$3.25

290

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

300

Rubber Washer

293830063

$1.51

310

Tie Wrap 368 mm

293750008

$0.85

340

Rubber Washer

293830063

$1.51

350

Torx Screw M6 X 14

250000384

$6.15

360

Neck Drain

292001552

$11.14

370

Plug Drain Ass'y | Includes 310 to 310b

292002024

$10.28

380>380a

Bailer Pick-up Ass'y | Includes 540 to 540c

292001636

$20.12

380a

Floating Ball

293830080

$5.56

390

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$5.94

400

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$5.94

410

Fitting Elbow 90°

293710152

$14.92

420

Tie Wrap 94 mm | 4X4

293750001

$0.83

430

Tridon Gear Clamp

293650171

$2.46

500

Hull Reinforcement

292001549

$72.12

510

Front End Piece Reinforcement

292001550

$10.00

520

Rear End Piece Reinforcement

292001551

$10.00

530

Hex. Flange Screw K50 X 25

250000680

$1.72

540

Flat Washer 5 mm, Stainless

234052600

$0.64

620a

Front Float

292001439

$72.12

620b

LH Float

292001467

$73.82

620c

RH Float

292001468

$73.82

620d

Rear Float

292001469

$27.66
