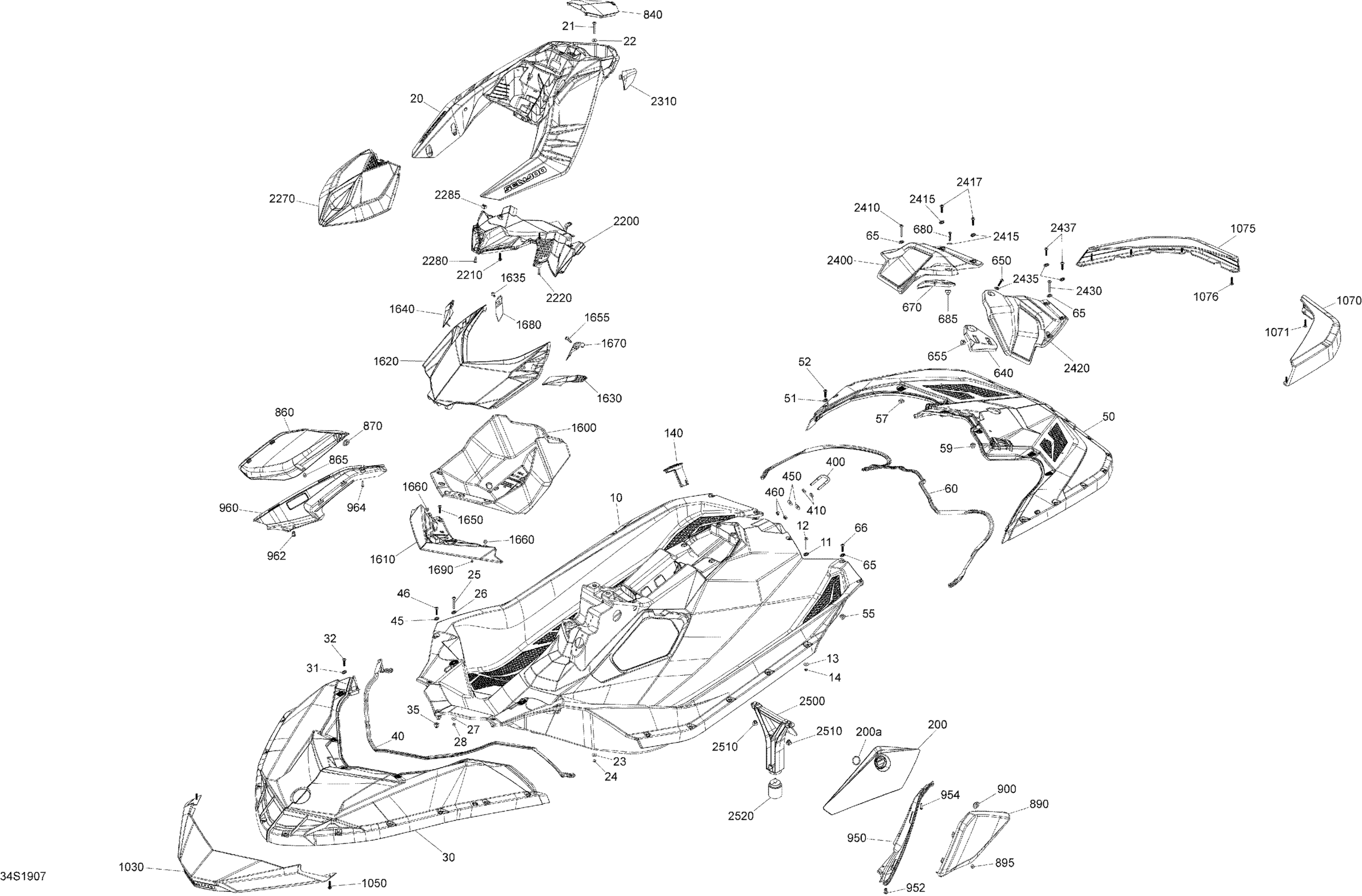

Sea-doo Spark 900 ACE, 2019 Body Diagram

#

Description
Price

10

Deep Black, Mid Deck

291004646

$1,374.60

11

Oval Washer

291003880

$1.36

12

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

13

Flat Washer M6, Stainless

234062600

$0.73

14

Elastic Stop Nut M6, Brass

232561200

$4.03

20

Console Front | Includes 20 to 20a

291005057

$162.66

21

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

22

Flat Washer M6, Stainless

250200150

$3.30

23

Flat Washer M6, Stainless

234062600

$0.73

24

Elastic Stop Nut M6, Brass

232561200

$4.03

25

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

26

Oval Washer

291003880

$1.36

27

Flat Washer M6, Stainless

234062600

$0.73

28

Elastic Stop Nut M6, Brass

232561200

$4.03

30

Bright White, Front Deck

291004581

$238.03

30

Yellow, Front Deck | Model B-408 Reef Blue

291004725

$238.03

30

Deep Black, Front Deck

291004727

$238.03

30

Orange, Front Deck | Package TRIXX Model B-101 Can-Am Red

291004863

$228.33

30

Quetzal Green, Front Deck | Model Quetzal Green

291004978

$238.03

31

Oval Washer

291003880

$1.36

32

Screw Torx M6.81 X 30

250001007

$1.85

35

Insert

291003793

$2.81

40

Seal Joint

293250341

$38.78

45

Oval Washer

291003880

$1.36

46

Screw Torx M6.81 X 30

250001007

$1.85

50

Bright White, Rear Deck

291004586

$238.03

50

Yellow, Rear Deck | Model B-408 Reef Blue

291004728

$238.03

50

Deep Black, Rear Deck

291004730

$231.31

50

Orange, Rear Deck | Package TRIXX Model B-101 Can-Am Red

291004864

$238.03

50

Quetzal Green, Rear Deck | Model Quetzal Green

291004979

$238.03

51

Oval Washer

291003880

$1.36

52

Screw Torx M6.81 X 30

250001007

$1.85

55

Insert

291003793

$2.81

55

Insert

291003793

$2.81

57

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$6.24

59

Insert

291003793

$2.81

60

Seal Joint

293250340

$38.78

65

Oval Washer

291003880

$1.36

66

Screw Torx M6.81 X 30

250001007

$1.85

66

Screw Torx M6.81 X 30

250001007

$1.85

140

Deep Black, Rear Access Cover

291003390

$38.03

200>200a

Deep Black, Front Access Cover | Includes 200 to 200d

291004155

$42.51

200a

O-Ring

293300121

$7.09

400

U-Clamp

292000933

$37.28

410

Flat Washer M8.5 x 18

293050001

$1.48

450

Flat Washer 8 mm, Stainless

234082600

$2.27

460

Hex. Elastic Nut M8 Brass

232581200

$1.48

640

Deep Black, LH Rear Panel Trim

291003883

$25.34

640

Black, Rear Support LH

291004545

$68.63

650

Screw Torx M6.81 X 30

250001007

$1.85

655

Insert

291003793

$2.81

670

Deep Black, RH Rear Panel Trim

291003884

$25.34

670

Black, RH Rear Support

291004546

$68.63

680

Screw Torx M6.81 X 30

250001007

$1.85

685

Insert

291003793

$2.81

840

Deep Black, Glove Box Cover

291003378

$58.93

860

Red Knee Pads RH | Package TRIXX Model B-101 Can-Am Red

291004526

$72.36

860

Reef Blue, RH Knee Pads | Model Reef Blue

291004731

$103.70

860

Manta Green, RH Knee Pads | Model Manta Green

291004732

$103.70

860

Gulfstream Blue, RH Knee Pads | Model Gulfstream Blue

291004733

$103.70

860

Mango Orange, RH Knee Pads

291004734

$103.70

865

Rubber Bumper

293830005

$6.12

870

Oval Washer

705000321

$5.33

890

Red Knee Pads LH | Package TRIXX Model B-101 Can-Am Red

291004528

$103.70

890

Reef Blue, LH Knee Pads | Model Reef Blue

291004735

$101.46

890

Manta Green, LH Knee Pads | Model Manta Green

291004736

$101.46

890

Gulfstream Blue, LH Knee Pads | Model Gulfstream Blue

291004737

$101.46

890

Mango Orange, LH Knee Pads

291004738

$101.46

895

Rubber Bumper

293830005

$6.12

900

Oval Washer

705000321

$5.33

950

Bright White, LH Panel Trim

291004524

$25.34

950

LH Panel Trim This part replaces 291003696.

291004576

$25.34

952

Tuflok Plastic Rivet

293150230

$1.39

954

Hex. Screw 10-14 X 7/8”

211000023

$3.34

960

Bright White, RH Panel Trim

291004525

$25.34

960

Deep Black, RH Panel Trim

291004577

$25.34

962

Tuflok Plastic Rivet

293150230

$1.39

964

Hex. Screw 10-14 X 7/8”

211000023

$3.34

1030

Front Bumper

291004567

$108.93

1050

Screw Torx M6.81 X 30

250001007

$1.85

1070

Black, LH Rear Bumper

291004568

$33.55

1071

Screw Torx M6.81 X 30

250001007

$1.85

1075

Black, RH Rear Bumper

291004569

$33.55

1076

Screw Torx M6.81 X 30

250001007

$1.85

1600

Storage Bin Kit

295100864

$239.49

1610

Black, Front Deflector Kit

295100865

Unavailable

1620

Black, Front Deflector Kit

295100865

Unavailable

1630

LH Retaining Strap

269800472

$23.85

1640

RH Retaining Strap

269800498

$23.85

1650

Screw Torx M6.81 X 30

250001007

$1.85

1655

Screw Torx M6.81 X 30

250001007

$1.85

1660

Rubber Bumper

293830005

$6.12

1670

LH Hook

269800541

$3.72

1680

RH Hook

269800542

$3.72

1690

Rubber Bumper

269800662

$0.85

2200

Black, Inferior Cover

291004575

$84.30

2210

Screw Torx M6.81 X 30

250001007

$1.85

2220

Hex. Screw 10-14 X 7/8”

211000023

$3.34

2270

Gulfstream Blue, Front Trim | Model Gulfstream Blue

291004592

$60.42

2270

Dragon Red, Front Trim | Model Dragon Red

291004594

$60.42

2270

Yellow, Front Trim | Model B-408 Reef Blue

291004739

$60.42

2270

Orange Mango, Frontal Trim

291004741

$60.42

2270

Manta Green, Frontal Trim | Model Manta Green

291004981

$25.34

2280

Torx-Truss M/S Stlss M6 X 20

250000829

$2.64

2285

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$6.24

2310

Cap

291003702

$15.64

2400

Can-Am Red, RH Footrest Ass'y

291004539

$68.63

2410

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

2415

Oval Washer

291003880

$1.36

2417

Screw Torx M6.81 X 30

250001007

$1.85

2420

Black, LH Footrest Ass'y

291004540

$68.63

2430

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

2435

Oval Washer

291003880

$1.36

2437

Screw Torx M6.81 X 30

250001007

$1.85

2500

Rear Support

291003440

$23.85

2510

Insert

291003793

$2.81

2520

Rear Support Mount

291003694

$18.63
