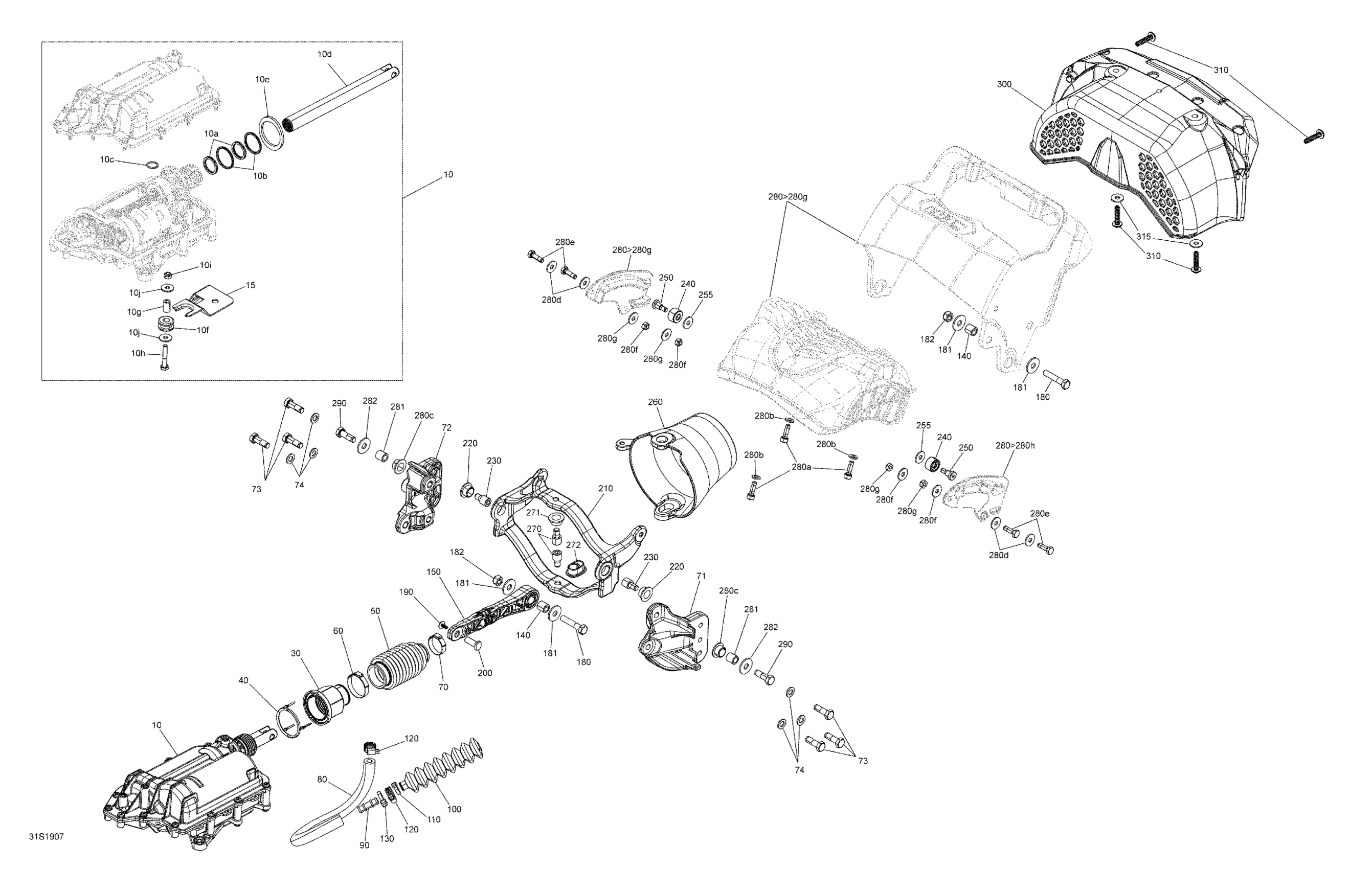

Sea-doo Spark 900 ACE, 2019 Reverse Diagram

#

Description
Price

10>10j

Actuator | Includes 10 to 10j

278003606

$738.78

10a

O-Ring

279000108

$5.61

10b

O-Ring

293300107

$0.96

10c

O-Ring

293300187

$3.67

10d

Output Shaft

278003027

$50.72

10e

Gasket

268000208

$14.37

10f

Grommet

293720104

$4.76

10g

Spacer

271001020

$10.60

10h

Hex. Screw M6 X 35

207063560

$2.12

10i

Elastic Stop Nut M6, Brass

232561200

$4.03

10j

Flat Washer M6, Stainless

234062600

$0.73

15

Actuator Support

268000210

$17.13

30

IBR Nut

268000308

$9.84

40

Rubber Gasket

277001977

$2.01

50

Boot

268000186

$4.12

60

Oetiker Gear Clamp, 36.5-706R

509000529

$9.42

70

Crimp Clamp

293650099

$4.07

71

LH Reverse Support

268000163

$24.60

72

RH Reverse Support

268000166

$28.33

73

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.27

74

Flat Washer M8, Stainless

234080600

$1.43

80

Was 509000407 Hose 8 mm

219704420

$46.24

90

Fitting-Straig

293710157

$6.15

100

Inner Boot This part replaces 268000345.

268000211

$9.34

110

Tie Wrap 142 mm

293750002

$1.01

120

Tridon Gear Clamp

293650171

$2.82

130

Tie Wrap 142 mm

293750002

$1.01

140

Spacer

271001039

$13.52

150

Reverse Rod

268000187

$26.09

180

Hex. Screw M8 X 40

207084060

$2.12

181

Flat Washer 8 mm, Stainless

234082600

$2.27

182

Hex. Elastic Nut M8 Brass

232581200

$1.48

190

Hexalob Screw M4 X 10

250000565

$2.00

200

Shoulder Pin

268000309

$17.13

210

Trimming Ring

268000179

$85.79

220

Venturi Bushing

293900007

$4.25

230

Socket Head Screw M8 X 13

268000141

$7.85

240

Roller Bushing Kit | Includes 240 to 240b

295501160

$3.79

250

Screw-Socket Shoulder M8X8

250000775

$7.54

255

Flat Washer M6, Stainless

234062600

$0.73

260

Nozzle

267000705

$69.37

270

Socket Head Screw M8 X 13

268000141

$7.85

271

Venturi Bushing

293900007

$4.25

272

Plastic Bushing

293900010

$8.21

280>280i

Reverse Gate Ass'y | Includes 280 to 280p This part replaces 268000303.

295501255

Unavailable

280a

Stainless Flat Washer M6

234061600

$0.28

280b

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.72

280c

Venturi Bushing

293900007

$4.25

280d

Not Available As Spare Part - Friction Washer

Unavailable

280e

Not Available As Spare Part - Friction Washer

Unavailable

280f

Flat Washer M6, Stainless

234062600

$0.73

280g

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.40

280h

Flat Washer M6, Stainless

234062600

$0.73

280i

Elastic Stop Nut M6, Brass

232561200

$4.03

281

Spacer

271001039

$13.52

282

Flat Washer 8 mm, Stainless

234082600

$2.27

290

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.27

300

Guard

268000189

$16.39

310

Screw Torx M6.81 X 30

250001007

$1.85

315

Flat Washer M6, Stainless

234062600

$0.73
