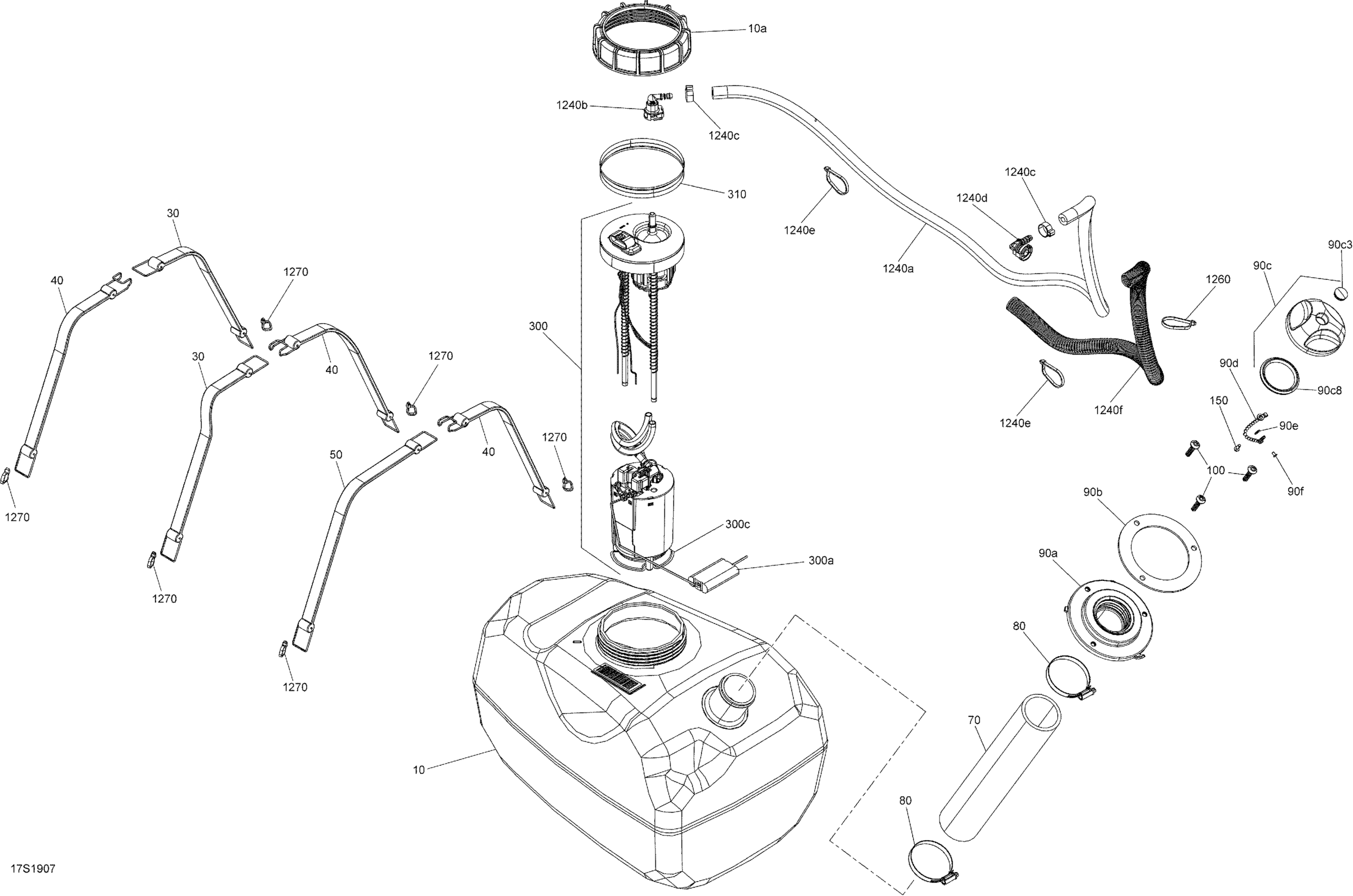

Sea-doo Spark 900 ACE, 2019 Fuel System Diagram

#

Description
Price

10

Fuel Tank

275500982

$271.02

30

Fuel Tank Strap

293850095

$14.27

40

Fuel Tank Strap

293850094

$17.52

50

Fuel Tank Strap

293850093

$16.87

70

Filler Neck Hose

275500935

$78.43

80

Norma Clamp

293650081

$9.87

90a

Filler Neck

275500857

$12.88

90b

Gasket

293250298

$15.35

90c

Fuel Cap Ass'y | Includes 90b to 90b8

275500975

$48.07

90c3

Black, Snap Cap

293000034

$7.48

90c8

Gasket

293250417

$3.17

90d

Fuel Cap Chain

275500974

$14.27

90e

Flat Washer M3, Stainless

234032600

$0.54

90f

Pop Rivet 1/8"

390407900

$1.17

100

Screw Torx M6.81 X 30

250001007

$1.61

150

Screw K40 X 10

241140060

$1.25

300>300c

Pump Fuel Ass'y | Includes 300 to 300b

275500996

$371.77

300a

Sensor Lever

275500780

$176.12

300c

Fuel Filter

270600113

$27.27

310

Gasket

293250173

$15.57

1240a

Hose I.D. 7.9Mm 3000Mm Long

219704359

$318.43

1240b

Quick Disconnect

275500921

$12.61

1240c

Crimp Clamp

293650053

$2.42

1240d

Elbow Fitting 90°

293710105

$10.58

1240e

Tie Rap 300mm

293750053

$2.75

1240f

Tubing 16 Mm 1000Mm Long

219704408

$6.23

1260

Tie Wrap 368 mm

293750008

$0.85

1270

Tie-Rap 180 mm

414115200

$0.09
