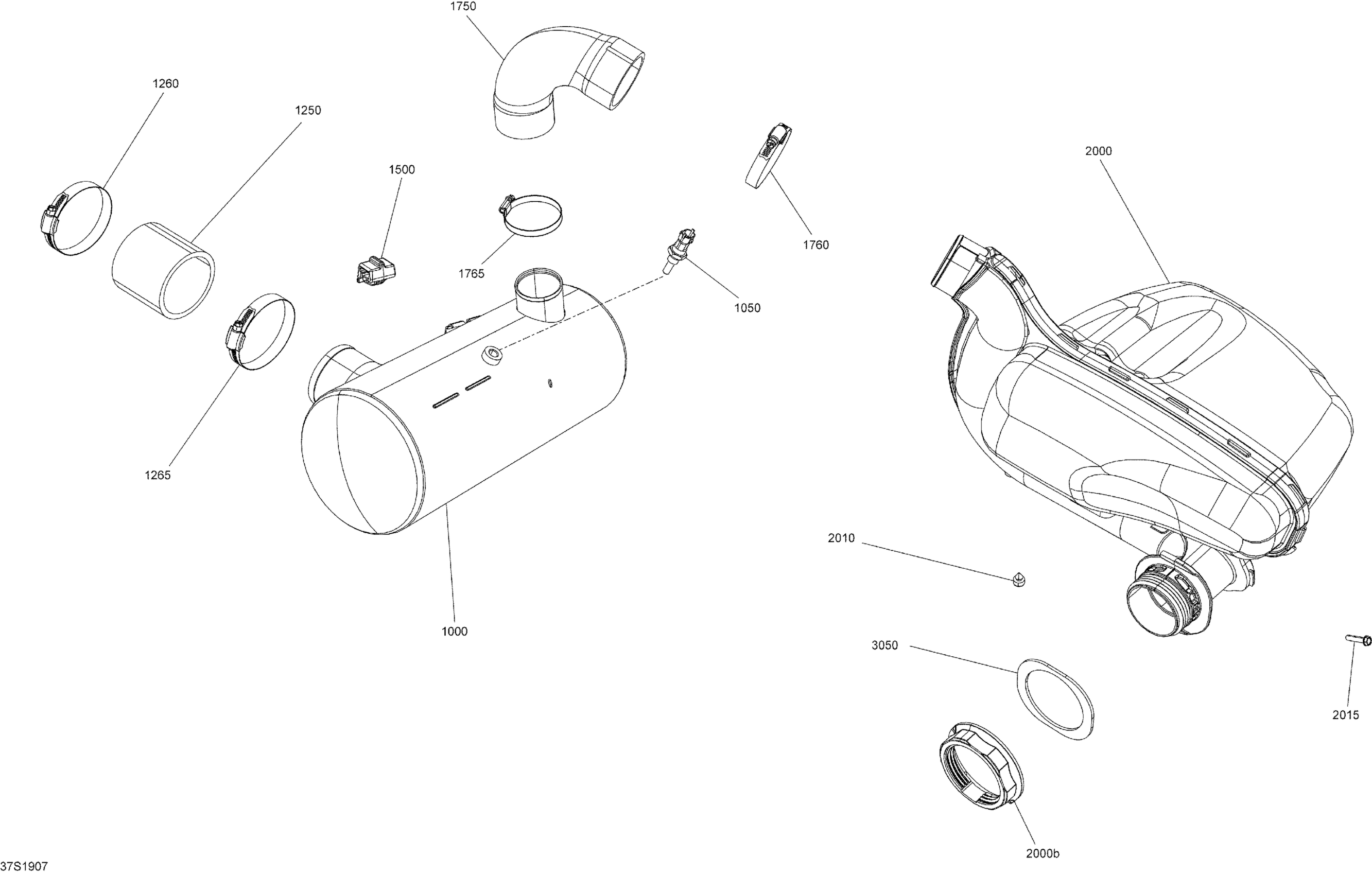

Sea-doo Spark 900 ACE, 2019 Exhaust System Diagram

Description

Price

1000

Muffler

274001618

$758.18

1050

Temperature Sensor

278002895

$36.54

1250

Hose 79.375mm - 80mm

274001453

$21.61

1260

Clamp

293650221

$14.90

1265

Clamp

293650221

$14.90

1500

Upper Stopper

514054606

$17.13

1750

Exhaust Hose

274001706

$80.57

1760

Clamp Gear

293650288

$8.19

1765

Norma Clamp

293650081

$11.33

2000>2000b

Resonator Ass'y | Includes 2000 to 2000b

274001731

$146.24

2000b

Nut 72 mm

274000224

$13.97

2010

Rubber Bumper

293830005

$6.12

2015

Rivet 1/8"

293150016

$0.33

3050

Gasket

268000112

$15.64
