- SEA-DOO - Spark Series
- 001 - Spark 900 ACE, 2019
01- Engine

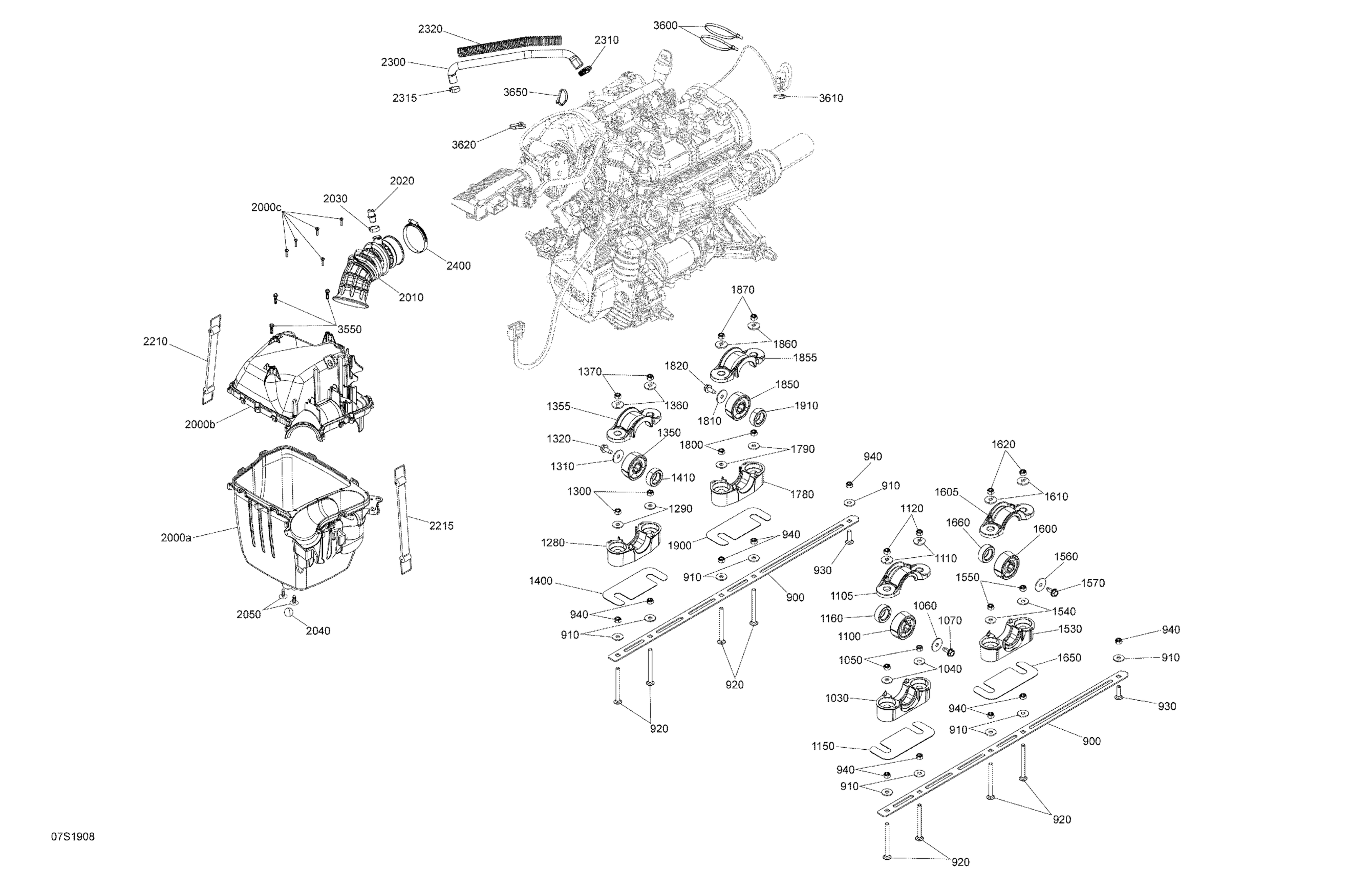

Sea-doo 001 - Spark 900 ACE, 2019 01- Engine Diagram
#
900
Retaining Plate
270000862
$20.99
910
Flat Washer 8 mm, Stainless
234082600
$2.43
920
Carriage Bolt M8 X 90
207789060
$6.69
930
Carriage Bolt M8 X 30
207783060
$3.91
940
Hex. Elastic Nut M8 Brass
232581200
$2.22
1030
Mount Base
270000978
$21.99
1040
Flat Washer 8 mm, Stainless
234082600
$2.43
1050
Hex. Elastic Nut M8 Brass
232581200
$2.22
1060
Flat Washer 8 mm
250200130
$3.17
1070
Forming Hex Screw M8 X 20
250000645
$6.77
1100
Rubber Mount
270000852
$22.49
1105
Mount Clamp
270000859
$20.99
1110
Conical Washer
250200137
$4.86
1120
Hex. Elastic Nut M8 Brass
232581200
$2.22
1150
Shim 1.3 mm
270000865
$10.49
1160
Rubber Stopper
270000863
$8.36
1280
Mount Base
270000978
$21.99
1290
Flat Washer 8 mm, Stainless
234082600
$2.43
1300
Hex. Elastic Nut M8 Brass
232581200
$2.22
1310
Flat Washer 8 mm
250200130
$3.17
1320
Forming Hex Screw M8 X 20
250000645
$6.77
1350
Rubber Mount
270000852
$22.49
1355
Mount Clamp
270000859
$20.99
1360
Conical Washer
250200137
$4.86
1370
Hex. Elastic Nut M8 Brass
232581200
$2.22
1400
Shim 1.3 mm
270000865
$10.49
1410
Rubber Stopper
270000863
$8.36
1530
Mount Base
270000978
$21.99
1540
Flat Washer 8 mm, Stainless
234082600
$2.43
1550
Hex. Elastic Nut M8 Brass
232581200
$2.22
1560
Flat Washer 8 mm
250200130
$3.17
1570
Forming Hex Screw M8 X 20
250000645
$6.77
1600
Rubber Mount
270000852
$22.49
1605
Mount Clamp
270000859
$20.99
1610
Conical Washer
250200137
$4.86
1620
Hex. Elastic Nut M8 Brass
232581200
$2.22
1650
Shim 1.3 mm
270000865
$10.49
1660
Rubber Stopper
270000863
$8.36
1780
Mount Base
270000978
$21.99
1790
Flat Washer 8 mm, Stainless
234082600
$2.43
1800
Hex. Elastic Nut M8 Brass
232581200
$2.22
1810
Flat Washer 8 mm
250200130
$3.17
1820
Forming Hex Screw M8 X 20
250000645
$6.77
1850
Rubber Mount
270000852
$22.49
1855
Mount Clamp
270000859
$20.99
1860
Conical Washer
250200137
$4.86
1870
Hex. Elastic Nut M8 Brass
232581200
$2.22
1900
Shim 1.3 mm
270000865
$10.49
1910
Rubber Stopper
270000863
$8.36
2000a
Airbox Base
273000385
$68.99
2000b
Airbox Cover
273000386
$75.99
2000c
Flange Torx Screw K40 X 16
250000287
$2.11
2010
Connector Hose
273000318
$58.99
2020
Fitting
270001007
$11.12
2030
Oetiker Clamp
293650011
$3.09
2040
Floating Ball
293830080
$7.19
2050
Black, Dart
293730011
$0.99
2210
Battery Strap
515176044
$18.49
2215
Fuel Tank Strap
293850087
$19.99
2300
Formed Hose
270000947
$46.99
2310
Clamp Gear
293650285
$3.27
2315
Oetiker Clamp
293650011
$3.09
2320
Tubing 16 Mm 1000Mm Long
219704408
$7.49
2400
Tridon Clamp
293650179
$11.49
3550
Hex. Flange Screw K50 X 20
241152060
$1.99
3600
Tie Wrap 368 mm
293750008
$1.04
3610
Tie Wrap 142 mm
293750002
$1.25
3620
Tie-Rap 180 mm
414115200
$0.11
3650
Tie-Rap 180 mm
414115200
$0.11
