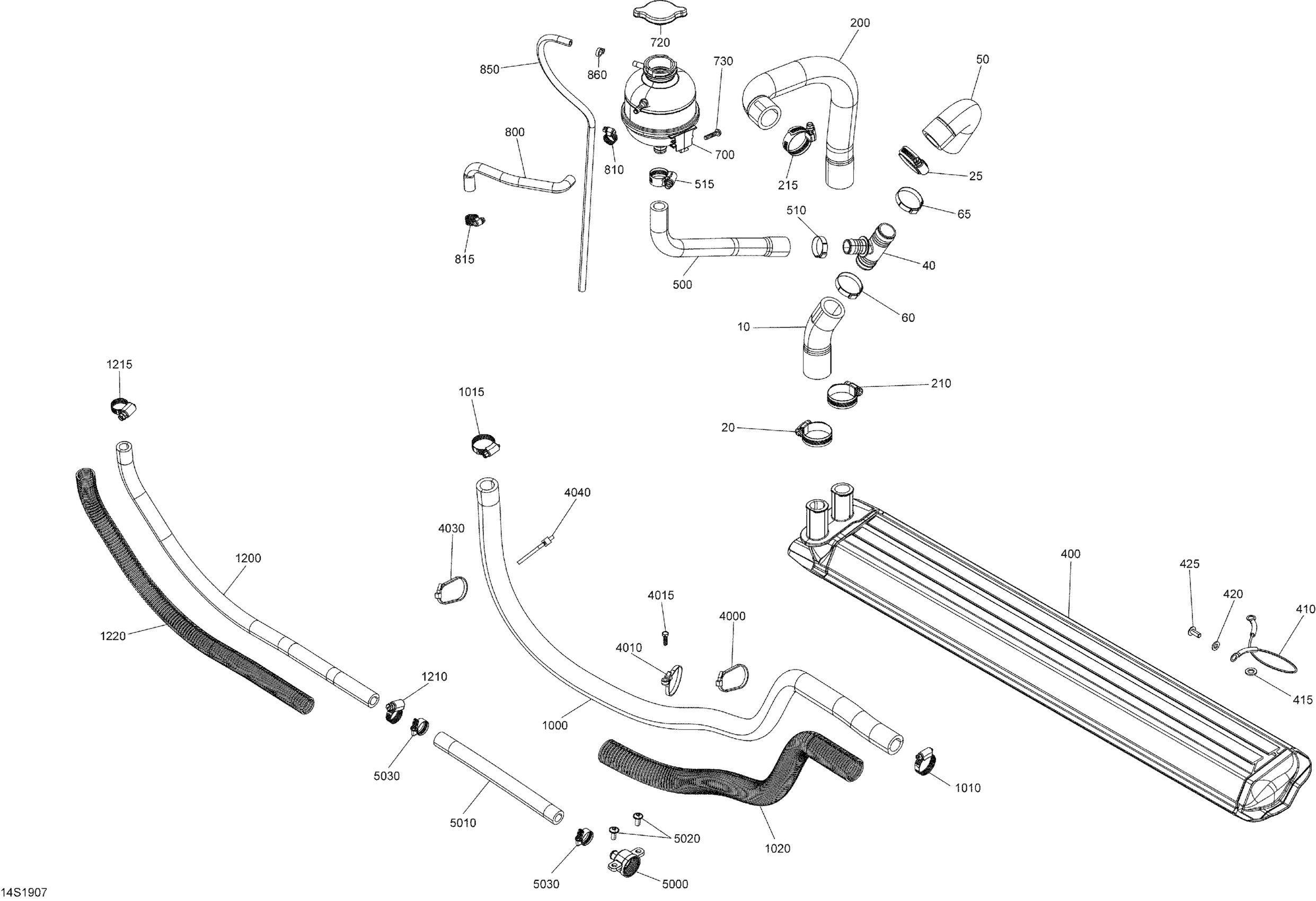

Sea-doo Spark 900 ACE, 2019 Cooling System Diagram

#

Description
Price

10

Radiator Hose

276000292

$32.28

20

Norma Clamp

293650245

$11.77

25

Norma Clamp

293650245

$11.77

40

T-Fitting

509000372

$7.87

50

Hose

276000301

$59.97

60

Oetiker Gear Clamp, 36.5-706R

509000529

Unavailable

65

Oetiker Gear Clamp, 36.5-706R

509000529

Unavailable

200

Cooling Hose

276000449

$59.97

210

Norma Clamp

293650245

$11.77

215

Norma Clamp

293650245

$11.77

400

Heat Exchanger

276000389

$211.87

410

Ground Wire

278003272

$16.22

415

Flat Washer M8, Stainless

234080600

$1.25

420

Stainless Flat Washer M6

234061600

$0.25

425

Torx Screw M6 X 14

250000384

$6.15

500

Hose

276000290

$23.82

510

Crimp Clamp

293650099

$4.60

515

Tridon Clamp

293650016

$8.57

700

Coolant Tank

509000802

$59.12

720

Radiator Pressure Cap

509000180

$11.69

730

Hex. Flange Screw K50 X 20

241152060

$1.57

800

Formed Hose

276000316

$23.05

810

Gear Clamp

293650287

$1.74

815

Gear Clamp

293650287

$1.74

850

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

860

Tie Wrap 94 mm | 4X4

293750001

$0.83

1000

Hose 19.0Mm. 2000Mm Long

219704361

$50.74

1010

Gear Clamp

293650284

$3.61

1015

Gear Clamp

293650284

$3.61

1020

Tubing 25 MM 1000MM Long

219704402

$12.69

1200

Was 276000001 Hose 12.5 mm

219704394

$42.87

1210

Clamp Gear

293650285

$2.68

1215

Clamp Gear

293650285

$2.68

1220

Was 409901600 Tubing 19mm

219704398

$89.97

4000

Tie Wrap 368 mm

293750008

$0.85

4010

Tie Rap 305 mm with Screw Mount Hole #10

293750049

$2.75

4015

Hex. Screw 10-14 X 7/8”

211000023

$2.91

4030

Tie Wrap 368 mm

293750008

$0.85

4040

Tie-Rap 180 mm

414115200

$0.09

5000

Drain Plug Neck

269800521

$8.71

5010

Was 276000001 Hose 12.5 mm

219704394

$42.87

5020

Torx Screw M6 X 14

250000384

$6.15

5030

Clamp Gear

293650285

$2.68
