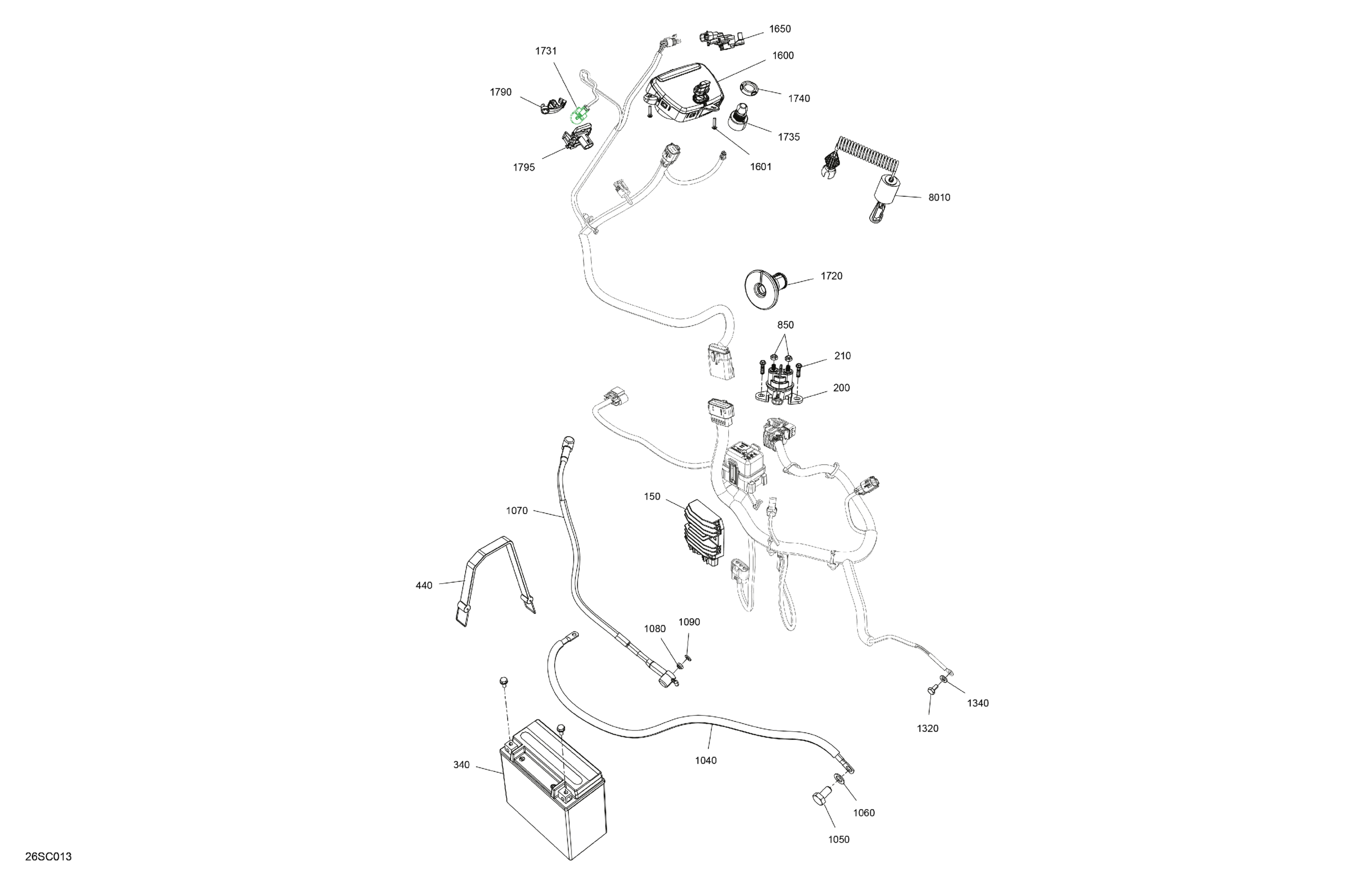

Sea-doo SPARK 60, 2022 Electric - System Diagram

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

Starter Relay

278003012

$35.07

Hex. Flange Screw K50 X 20

241152060

$1.57

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

Fuel Tank Strap

293850093

$16.87

Elastic Stop Nut M6, Brass

232561200

$3.51

Ground Cable

278003271

$31.17

Hex. Screw M10 X 20, Scotch Grip

207302060

$3.29

Flat Washer 10 mm, Stainless

234000600

$1.07

Starter Cable

278003268

$55.94

Elastic Stop Nut M6, Brass

232561200

$3.51

Stainless Flat Washer M6

234061600

$0.25

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

Stainless Flat Washer M6

234061600

$0.25

Base Multifonction Gauge

278004167

$499.82

Flange Torx Screw K40 X 16

250000287

$1.74

Throttle Position Sensor

278002283

$94.22

Cable Grommet

293720092

$10.28

Start/Stop Switch This part replaces 296000440.

296000440

$42.87

Emergency Switch Ass'y, NOT RFID

278002677

$42.87

Specialized Nut

278004274

$2.72

O.T.A.S Actuator

278003537

$33.12

O.T.A.S. Sensor

278003008

$86.42

Safety Lanyard Ass'y, NOT RFID

278003410

$58.47
