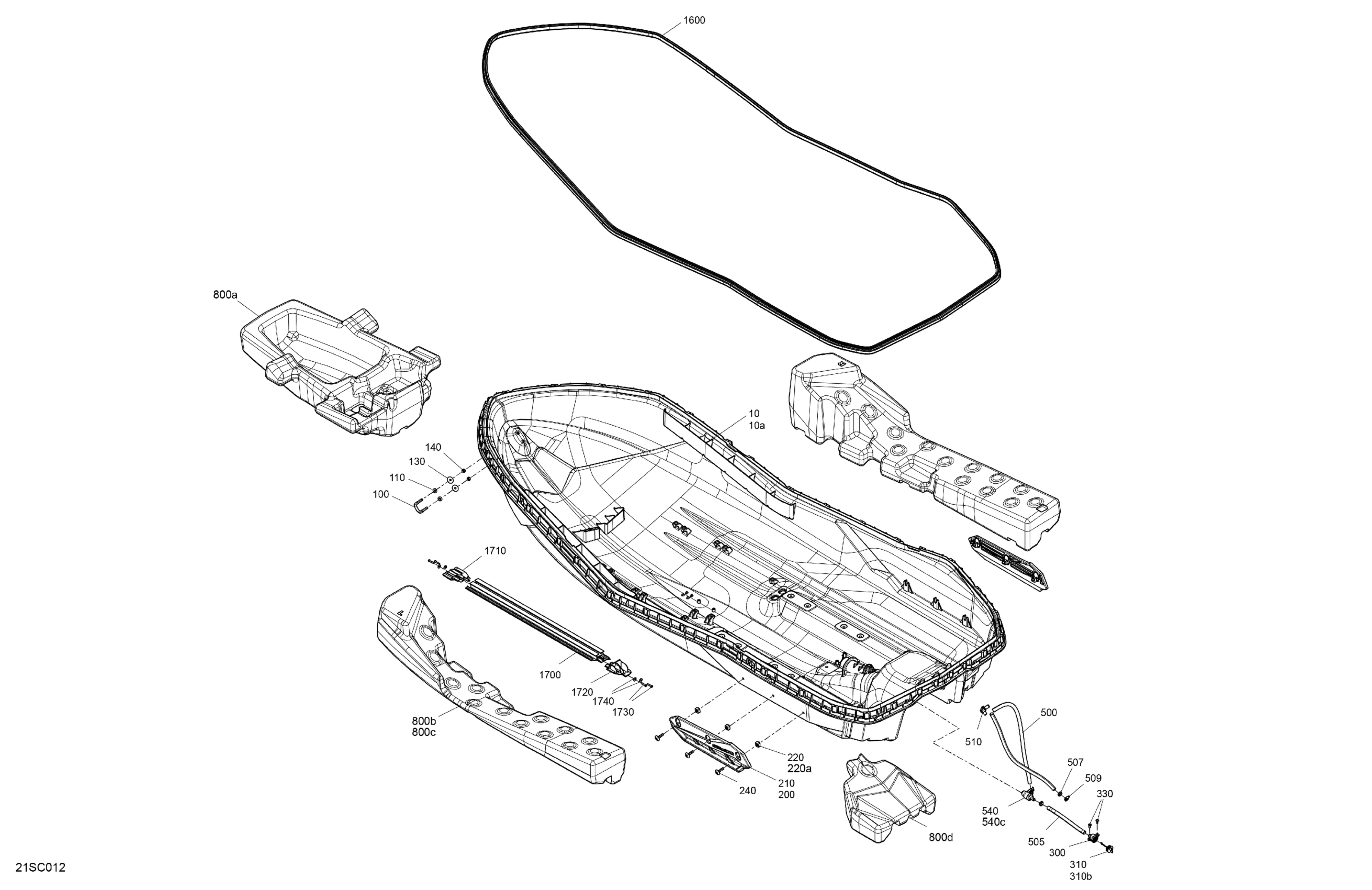

Sea-doo SPARK 60, 2022 Body - Hull Diagram

#

Description
Price

10

Hull | Includes 10 to 10a

295501188

$1.00

10a

Hull | Includes 10 to 10a

295501188

$1.00

10a1

Hull Insert Kit | Includes 10a to 10a3

295501139

$43.99

10a1a

Hull Insert Kit | Includes 10a to 10a3

295501139

$43.99

10a1b

Torx Screw M6 X 20

250000711

$1.90

10a1c

Drill Bite N Size

529036505

Unavailable

100

U-Clamp

292000933

$59.49

110

Flat Washer M8.5 x 18

293050001

$3.07

130

Flat Washer 8 mm, Stainless

250200175

$3.06

140

Hex. Elastic Nut M8 Brass

232581200

$2.22

200

RH Sponson

292002009

$82.99

210

LH Sponson

292002008

$82.99

220

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

220a

Hex. Elastic Nut M8 Brass

232581200

$2.22

240

Torx-Head Screw M8 X 35

250001276

$5.92

300

Neck Drain

292001552

$14.49

310

Plug Drain Ass'y | Includes 310 to 310b

292002024

$13.49

310b

O-Ring

293300067

$1.04

330

Torx Screw M6 X 14

250000384

$7.51

500

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$7.20

505

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$7.20

507

Rubber Washer

293830063

$1.90

509

Clamp Gear

293650285

$3.27

510

Fitting Elbow 90°

293710152

$18.49

540

Bailer Pick-up Ass'y | Includes 540 to 540c

292001636

$25.99

540c

Floating Ball

293830080

$7.19

800a

Front Float

292001439

$92.99

800b

LH Float

292001467

$76.99

800c

RH Float

292001468

$76.99

800d

Rear Float

292001469

$27.99

1600

Seal Joint

293250338

$64.99

1700

Hull Reinforcement

292001549

$92.99

1710

Front End Piece Reinforcement

292001550

$12.99

1720

Rear End Piece Reinforcement

292001551

$12.99

1730

Hex. Flange Screw K50 X 25

250000680

$1.89

1740

Flat Washer 5 mm, Stainless

234052600

$0.77
