Partiron

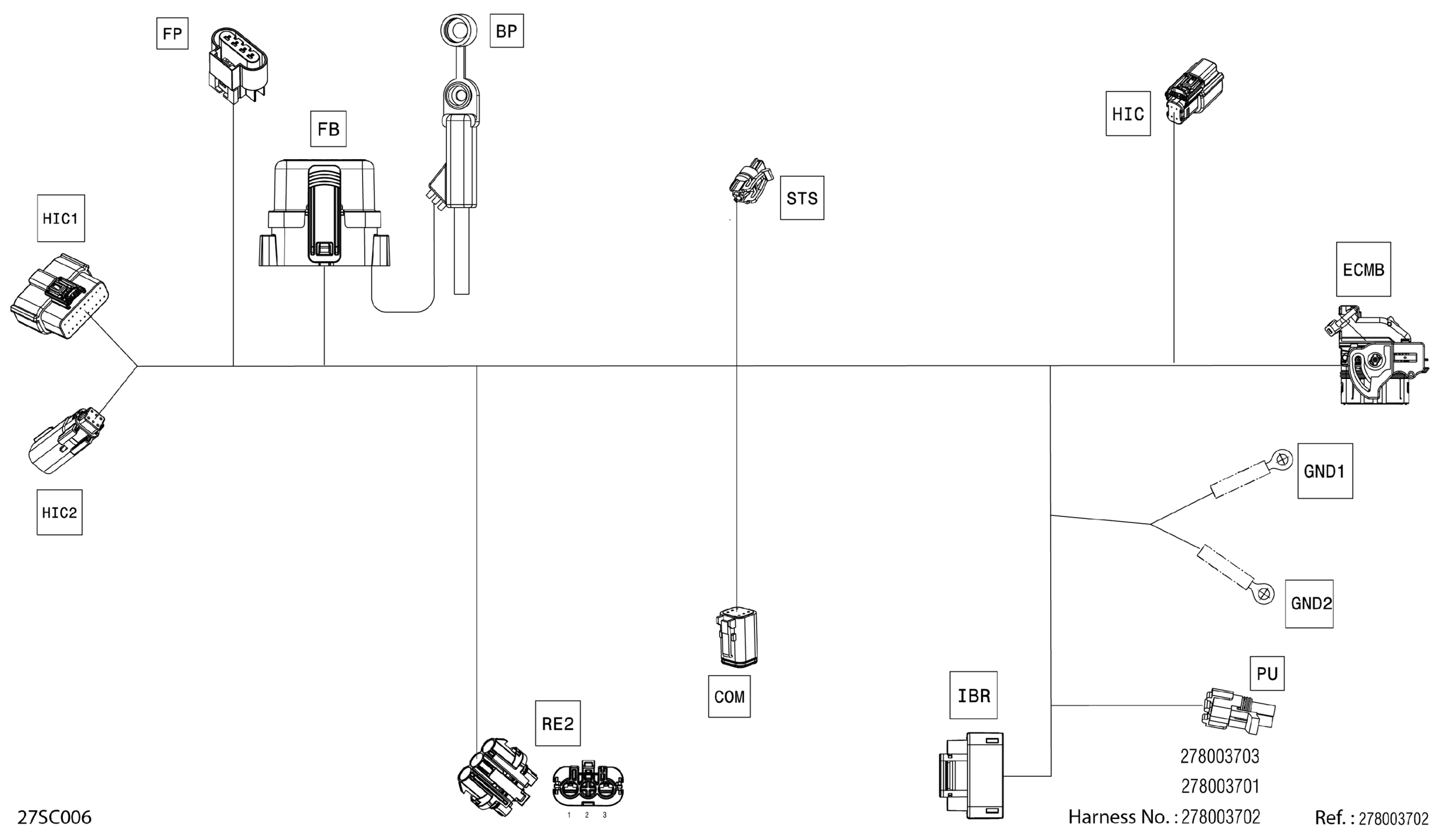

Sea-doo SPARK 60, 2022 Electric - Main Harness - 278003702 Diagram

#

Description
Price

1000

Wiring Harness Main

278003702

$649.99

BP

Fuse Box Battery Cable

278003713

$71.99

COM

Female Housing 6 Circuits

710002706

$20.49

COM

Lock

710002705

$4.44

COM

Female Terminal

710005438

$4.29

COM

Female Terminal

710005439

$4.44

ECMB

Cover, 48 positions

710001591

$12.18

ECMB

Female Terminal Housing, 48 Circuits

710001588

$48.49

ECMB

Plug

710001593

$2.21

ECMB

Plug

710001592

$2.21

ECMB

Female Terminal

710001590

$2.09

ECMB

Female Terminal

710001727

$3.19

ECMB

Female Terminal

710001589

$2.21

FB

Fuse Cover

278002825

$14.24

FB

Little Fuse, 5 Amperes

710000742

$8.79

FB

Little Fuse, 15 Ampere

710000745

$8.49

FB

Little Fuse, 30 Amperes

710000747

$8.49

FB

Little Fuse, 5 Amperes

710000742

$8.79

FB

Little Fuse, 10 Amperes

710000744

$8.79

FB

Little Fuse, 15 Ampere

710000745

$8.49

FB

Little Fuse, 30 Amperes

710000747

$8.49

FB

Case Ass'y with seal, 24 positions

278002824

$35.99

FB

Seal Plug

278002880

$7.86

FB

Relay 30 Amp

278003828

$13.99

FB

Wire Seal

278000218

$4.39

FB

Wire Seal

710000048

$7.69

FB

Wire Seal

278001065

$7.69

FB

Female Terminal

515177177

$6.49

FB

Female Terminal

710000918

$7.69

FB

Female Terminal

278002578

$1.04

FP

Male Housing, 4 Circuits

278002185

$7.90

FP

Lock

710001222

$2.09

FP

Wire Seal

278002186

$5.50

FP

Female Terminal

278002187

$6.39

GND1

Open Barrel Terminal

278001392

$4.79

HIC

Female Housing, 4 circuits

278003535

$25.99

HIC

Female Terminal | Not Shown

278002453

$5.79

HIC1

Female Housing 20 Circuits

278002858

$22.49

HIC1

Sealing Cap

278002860

$1.79

HIC1

Female Terminal | Not Shown

278002453

$5.79

HIC1

Female Terminal | Not Shown

278002642

$3.79

RE2

Female Housing, 3 Circuits

710000879

$25.99

RE2

Cap

710000882

$11.49

RE2

Seal

710000881

$17.99

RE2

Female Terminal

710000877

$9.12

STS

Female Housing, 2 Circuits

515177192

$9.12

STS

Wire Seal

710001163

$7.69

STS

Female Terminal

710001164

$8.89
