Description

Price

10

Snow Guard

520001411

$106.99

25

Plate

520001021

$37.99

30

Forming Screw M5 x 16

250000676

$1.01

40

Washer M5

250200025

$0.74

50

RH Protector

520000693

$52.99

55

LH Protector

520000694

$52.99

60

Rivet Hucklok

293150163

$2.99

200

Rear Light | Includes 200 to 200a

520000848

$99.49

200a

Rear Wiring Harness

520000849

$53.99

205

Rear Light Cover

511000764

$38.99

210

Stopper Rubber

705014429

$5.95

450

Horn

549011291

$35.99

1010

Yellow, RH Reflector

520001600

$33.99

1020

Yellow, LH Reflector

520001601

$33.99

1200

Amber, Lateral Reflector

705002423

$15.49

1250

Support Tape

520001766

Unavailable

1400

Tools Kit | Includes 1400 to 1400b

520001593

$51.49

1406

Key | Not illustrated

520002239

Unavailable

1600

Tool Kit Rack

520000894

$14.99

1610

Latch

520000528

$7.69

3600

Hitch Ass'y | Includes 3600 to 3600f

520001774

$73.99

3600a

Locking Plate

520001775

Unavailable

3600b

Clevis Pin

520001810

Unavailable

3600c

Hair pin

41029

$4.44

3600d

Avex Rivet

390909100

$0.30

3600e

Washer

520001811

Unavailable

3600f

Cotter Pin

520001812

Unavailable

3620

Plate

520000727

$36.99

3640

Carriage Bolt, M8 X 25 | XXC

207782544

$1.58

3650

Bolt Carriage M8 X 40

207784044

$1.15

3660

Hex. Flange Elastic Nut M8

233281414

$1.47

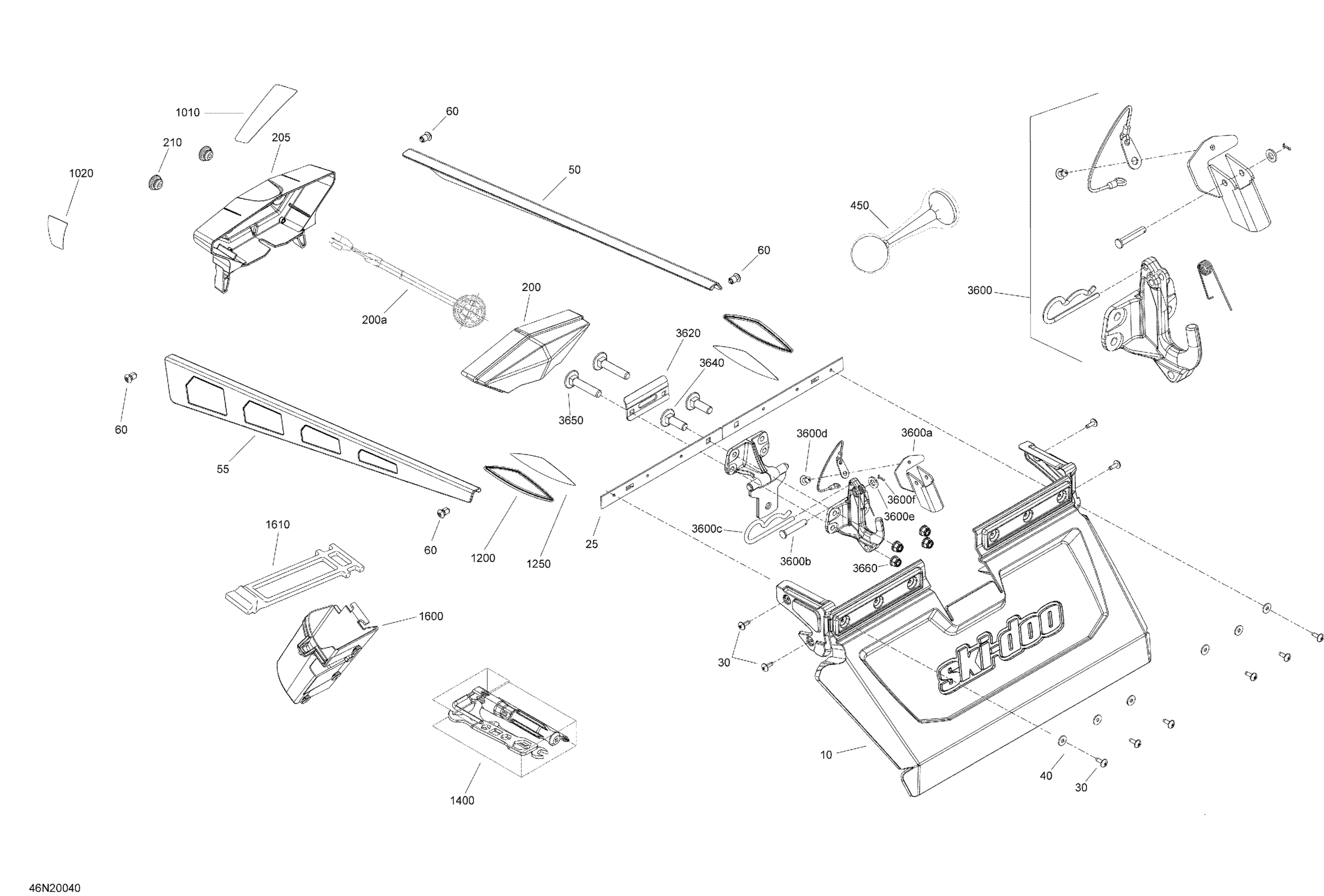

Ski-Doo 001 - SKANDIC WT 900 ACE - Europe, 2020 10- Utilities Diagram

Snow Guard

Plate

Forming Screw M5 x 16

Washer M5

RH Protector

LH Protector

Rivet Hucklok

Rear Light | Includes 200 to 200a

Rear Wiring Harness

Rear Light Cover

Stopper Rubber

Horn

Yellow, RH Reflector

Yellow, LH Reflector

Amber, Lateral Reflector

Support Tape

Tools Kit | Includes 1400 to 1400b

Key | Not illustrated

Tool Kit Rack

Latch

Hitch Ass'y | Includes 3600 to 3600f

Locking Plate

Clevis Pin

Hair pin

Avex Rivet

Washer

Cotter Pin

Plate

Carriage Bolt, M8 X 25 | XXC

Bolt Carriage M8 X 40

Hex. Flange Elastic Nut M8
