Description

Price

2

Fixed Flange Ass'y

417224091

$309.99

3

Flange Slide Ass'y

417224044

$294.99

6

Ramp 748 Ass'y | Europe - Includes journal Bearing This part replaces 417224035.

417224228

$41.49

6

Ramp 740 | North America

417223906

$38.99

8

Stopper Washer

417223660

$3.17

9

Ramp Axle

417223694

$11.05

10

Elastic Stop Nut M5

232551414

$0.87

11

Spring Cover Ass'y

417223650

$44.99

14

Seat Spring

417223752

$15.27

15

Spring (Red/Orange) | Europe

417223749

$17.39

15

Clutch Spring

417223745

$17.39

16

Torx Screw M6 X 30

250000580

$6.08

17

Governor Cup Ass'y

417223865

$274.99

18

Roller

417223767

$11.59

19

Roller Axle

417223257

$6.99

20

O-Ring

293300185

$0.98

21

Slider Shoe

417223919

$6.83

22

Conical Spring Washer M14

250200144

$4.44

23

Pulley Drive Bolt

417300432

$41.49

24

Decal English

516005503

Unavailable

26

Fixed Flange Ass'y

417127433

$629.99

31

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$159.99

33

Cam Ass'y

417127411

$159.49

36

Release Spring

417127467

$46.49

37

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

38

Calibration Ass'y

415129604

$21.49

39

Socket Screw M5 X 25

205052544

$1.68

40

Flat Washer M5

234051410

$0.53

41

Elastic Stop Nut M5

232551414

$0.87

42

Washer

417127155

$8.26

43

Strength Washer

517302322

$12.63

44

Hex. Cap Screw M8 X 80

207588044

$3.06

45

Spacer

417300252

$5.49

70

Spacer

417300252

$5.49

46

Spacer

417300265

$2.29

47

Shim

504112000

$8.59

48

Drive Belt

417300551

$179.99

49

Warning Decal | Europe

516003919

$8.09

50

Belt Guard

417300382

$90.99

51

Security Label, Belt Guard

516006900

Unavailable

52

Reinforcement

417300380

$7.29

53

Avex Rivet

390909200

$0.30

54

Guide

417300381

$11.99

55

Side Protector

417300356

$14.76

56

Pop Rivet 3/16"

293150103

$0.55

57

Belt Guard Bracket | Except Package SWT

417300363

$14.49

58

BELT GUARD BRACKET - Call your local BRP dealership

417300451

$31.99

59

Brake Hose Cover | Except Package SWT

518325626

$29.99

60

Rivet Hucklok

293150163

$2.99

61

Hair Pin

114045200

$11.11

62

Air Duct | North America

417300468

$49.99

62.1

Clinch Nut M6 Hexsert

605636003

$4.23

63

Torx Screw M6 X 20

250000722

$1.68

64

Bracket

517281905

$18.49

65

Avex Rivet

390909100

$0.30

66

Belt Decal, English

516005511

Unavailable

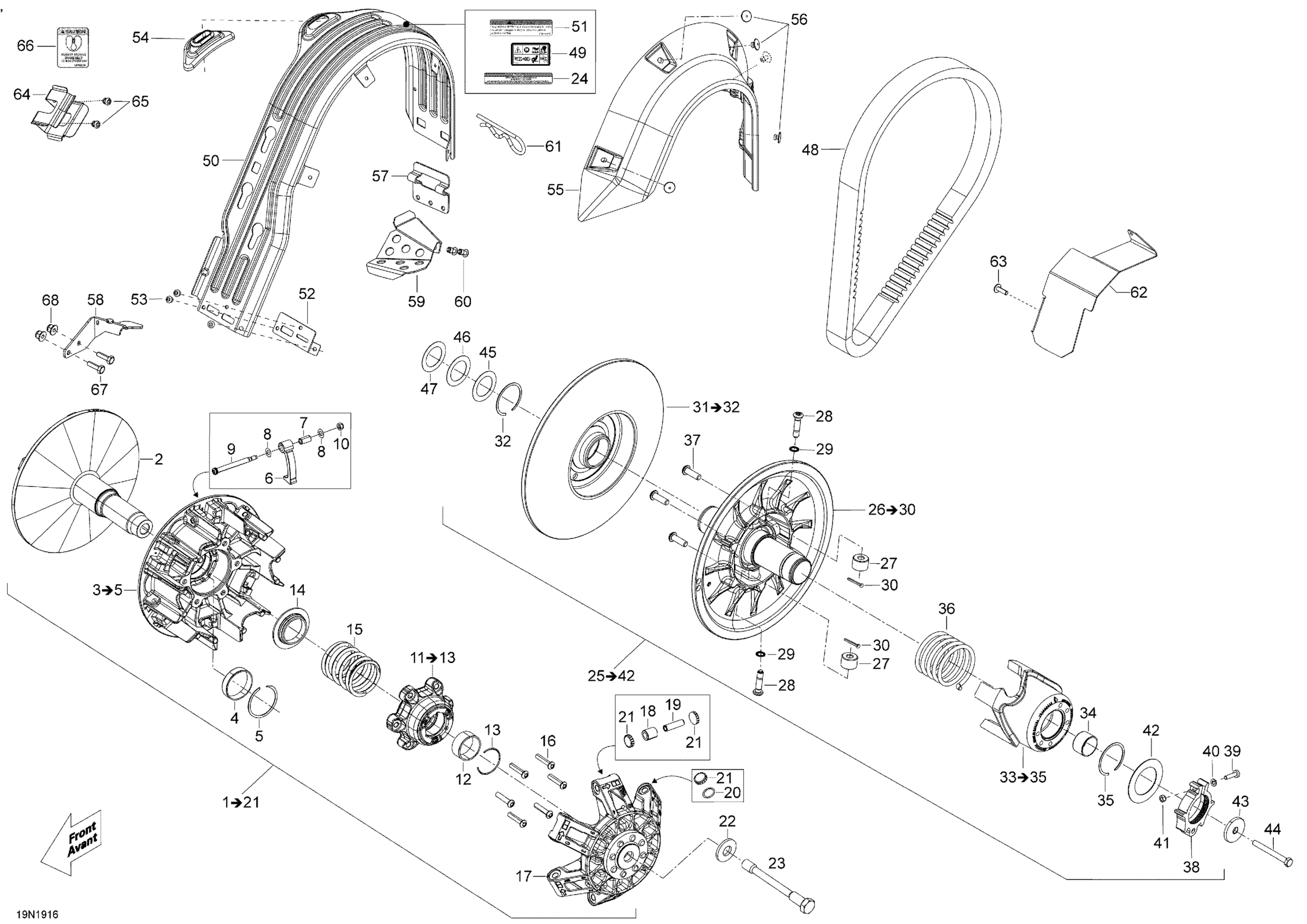

Ski-Doo 001 - SKANDIC WT 900 ACE - Europe, 2020 05- Pulley - System Diagram

Fixed Flange Ass'y

Flange Slide Ass'y

Ramp 748 Ass'y | Europe - Includes journal Bearing This part replaces 417224035.

Ramp 740 | North America

Stopper Washer

Ramp Axle

Elastic Stop Nut M5

Spring Cover Ass'y

Seat Spring

Spring (Red/Orange) | Europe

Clutch Spring

Torx Screw M6 X 30

Governor Cup Ass'y

Roller

Roller Axle

O-Ring

Slider Shoe

Conical Spring Washer M14

Pulley Drive Bolt

Decal English

Fixed Flange Ass'y

Slider Flange Ass'y | Includes 100b to 100b3

Cam Ass'y

Release Spring

Button Head Torx Screw M8 X 25 S.Gr

Calibration Ass'y

Socket Screw M5 X 25

Flat Washer M5

Elastic Stop Nut M5

Washer

Strength Washer

Hex. Cap Screw M8 X 80

Spacer

Spacer

Spacer

Shim

Drive Belt

Warning Decal | Europe

Belt Guard

Security Label, Belt Guard

Reinforcement

Avex Rivet

Guide

Side Protector

Pop Rivet 3/16"

Belt Guard Bracket | Except Package SWT

BELT GUARD BRACKET - Call your local BRP dealership

Brake Hose Cover | Except Package SWT

Rivet Hucklok

Hair Pin

Air Duct | North America

Clinch Nut M6 Hexsert

Torx Screw M6 X 20

Bracket

Avex Rivet

Belt Decal, English
