Description

Price

10a

Module E | Includes 10a to 10n

518328817

$959.99

10c

RH Member

518326795

$284.99

10d

LH Member

518325558

$249.99

10e

Front Member | Includes 10as to 10at

518325818

$58.99

10g

Avex Rivet

390909100

$0.30

10h

Hemlock Rivet 6.5 mm

293150120

$7.41

10j

Hemlock Rivet, 6.5 mm

293150119

$4.29

10m

Muffler Support

518328433

$18.49

10n

Rivet Hucklok

293150163

$2.99

10ae

LH Support Tube Bracket

518329109

$44.99

10af

RH Support Tube Bracket

518329110

$44.99

60

Engine Support

518326719

$43.49

60

ENGINE SUPPORT - Call your local BRP dealership

518326120

Unavailable

65

Rivet Hucklok

293150163

$2.99

66

Avex Rivet

390909200

$0.30

131

Avex Rivet

390909200

$0.30

300

S Module | Includes 300 to 300a

518326213

$839.99

300a

Avex Rivet

390909200

$0.30

330

Hex. Flange Screw M6 X 25

207662544

$0.64

335

Hex. Flange Screw M6 X 25

207662544

$0.64

340

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

390

Avex Rivet

390909100

$0.30

410

Hemlock Rivet, 6.5 mm

293150119

$4.29

415

Rivet

293150183

$2.11

420

Avex Rivet

390909200

$0.30

500

Pulley Support

518328434

$144.99

510

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

511

Hex. Flange Screw M8 X 30 Scotch Grip

250001073

$4.34

700

Front Member Ass'y | Includes 700 to 700d

518327004

$539.99

700a

Front Member, S Module

518326557

$369.99

700b

LH Bumper Fastener

502007077

$54.99

700c

RH Bumper Fastener

502007078

$54.99

700d

Avex Rivet

390909200

$0.30

710

Hex. Flange Screw M6 X 20

207662044

$2.00

720

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

740

Flat Washer

224061201

$1.37

760

Hex. Flange Screw M6 X 20

207662044

$2.00

770

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

780

Hex. Flange Screw M6 X 20

207662044

$2.00

785

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

790

Avex Rivet

390909200

$0.30

900

Upper Support Tube

518329105

$204.99

910

Hex. Screw M8 X 20

207182044

$0.74

920

Hex. Elastic Stop Nut M8

232581414

$0.56

1100

Upper Lateral Column Support

518325114

$22.49

1110

Hex. Flange Screw M6 x 20

207662056

$1.01

1120

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1200

Center Column Support

518325115

$22.49

1210

Hex. Flange Screw M6 X 25

207662556

$4.44

1220

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

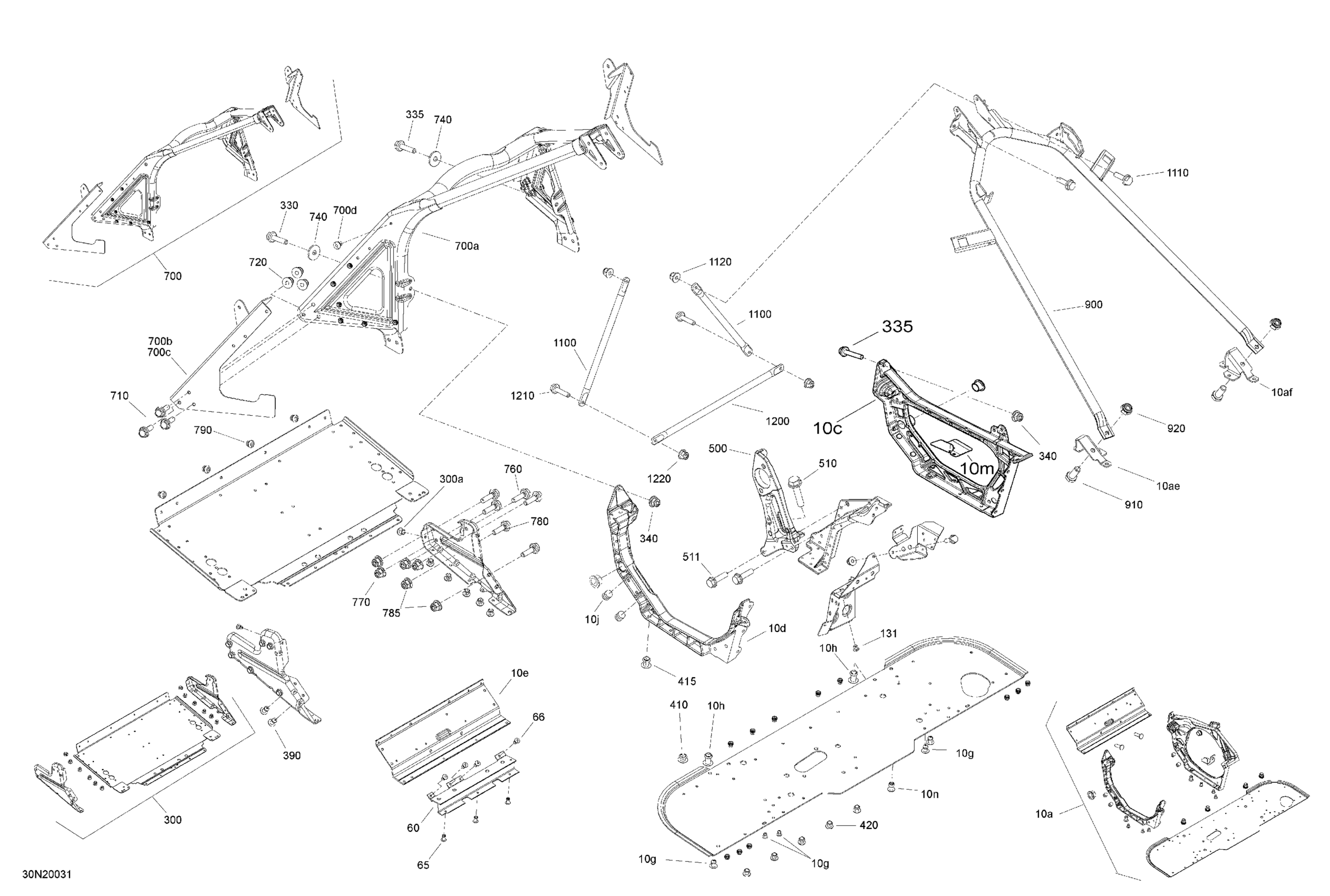

Ski-Doo 001 - SKANDIC WT 550F - North America, 2020 09- Frame - System - Front Section Diagram

Module E | Includes 10a to 10n

RH Member

LH Member

Front Member | Includes 10as to 10at

Avex Rivet

Hemlock Rivet 6.5 mm

Hemlock Rivet, 6.5 mm

Muffler Support

Rivet Hucklok

LH Support Tube Bracket

RH Support Tube Bracket

Engine Support

ENGINE SUPPORT - Call your local BRP dealership

Rivet Hucklok

Avex Rivet

Avex Rivet

S Module | Includes 300 to 300a

Avex Rivet

Hex. Flange Screw M6 X 25

Hex. Flange Screw M6 X 25

Hex. Flange Elastic Nut M6 x 1.0

Avex Rivet

Hemlock Rivet, 6.5 mm

Rivet

Avex Rivet

Pulley Support

Hex Flange Screw M8 X 25 S.Grip

Hex. Flange Screw M8 X 30 Scotch Grip

Front Member Ass'y | Includes 700 to 700d

Front Member, S Module

LH Bumper Fastener

RH Bumper Fastener

Avex Rivet

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Flat Washer

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Avex Rivet

Upper Support Tube

Hex. Screw M8 X 20

Hex. Elastic Stop Nut M8

Upper Lateral Column Support

Hex. Flange Screw M6 x 20

Elastic Flange Nut M6 X 1.0

Center Column Support

Hex. Flange Screw M6 X 25

Hex. Flange Elastic Nut M6 x 1.0
