Partiron

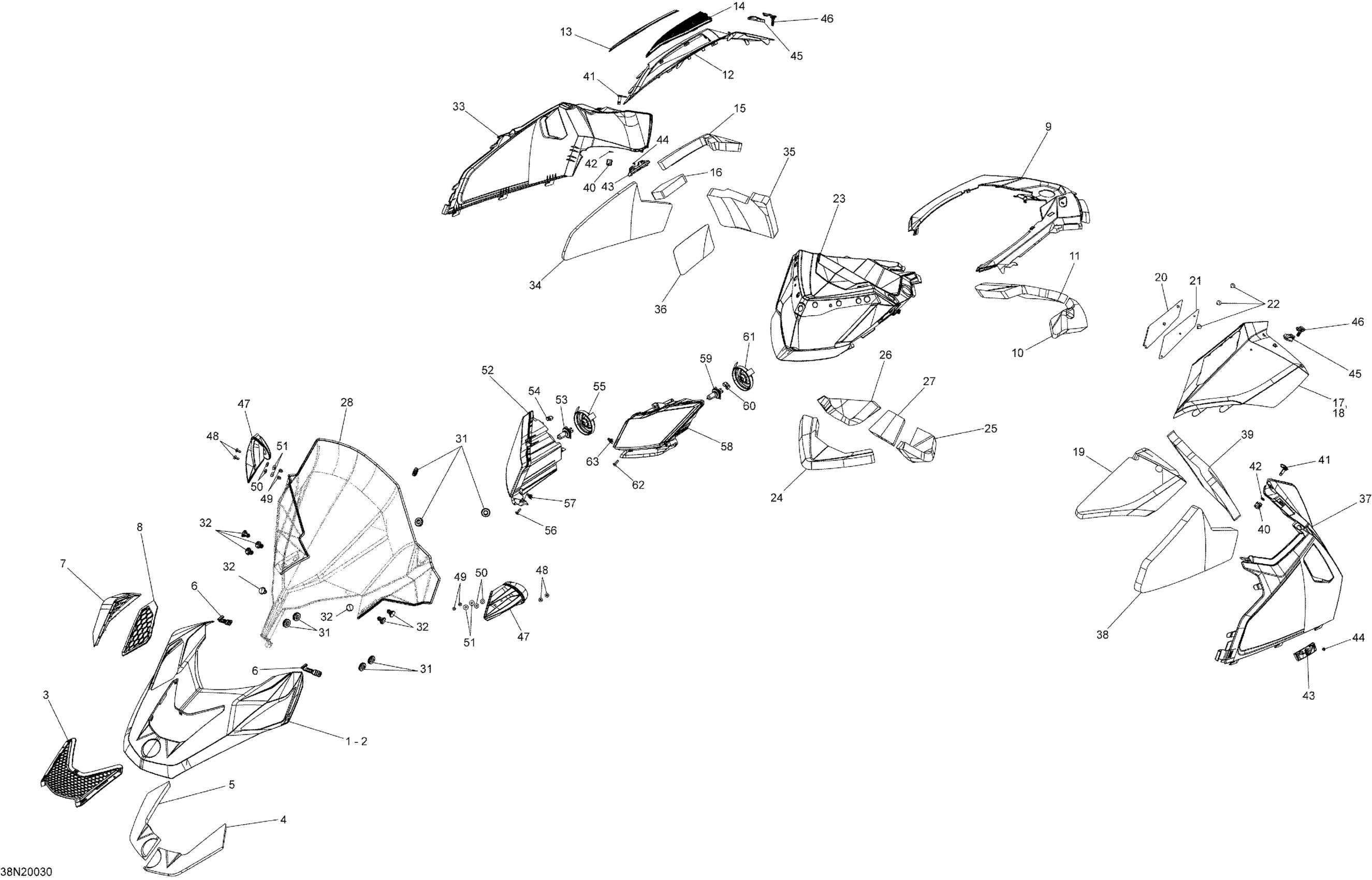

Ski-Doo SKANDIC WT 550F - 2020 Body - Hood Section - Skandic - 550F Diagram

#

Description
Price

1

Hood | Viper Red

517304588

Unavailable

1

HOOD B-190 - Call your local BRP dealership | Yellow 2000

517305521

Unavailable

2

Hood | Viper Red

517304810

$264.99

2

Yellow Hood | Yellow 2000

517305523

$249.99

3

Hood Grille

517304843

$79.82

4

Insulator

517304330

$33.55

5

Insulator

517304214

$29.07

6

Latch Pannel

517304289

$9.61

7

Intake Grille

517306981

$26.09

8

Intake Grille

517304584

$26.09

9

Black, Console

517304820

$184.99

10

Insulator

517305644

$35.04

11

Insulator

517304318

$47.73

12

RH Side Access Panel | Viper Red

517304831

$278.33

12

Yellow, RH Side Access Panel | Yellow 2000

517305525

$227.58

13

RH Access Panel Grille

517304015

$32.81

14

RH Lower Acces Grille

517304016

$28.33

15

Insulator

517304311

$61.16

16

Insulator

517305987

$29.07

17

LH Side Access Panel | Viper Red

517305018

Unavailable

17

RH Side Access Panel | Yellow 2000

517305528

Unavailable

18

Yellow, LH Side Access Panel | Yellow 2000

517305527

$227.58

18

LH Side Access Panel | Viper Red

517304841

$278.33

19

Insulator

517304313

$61.16

23

Gauge Support

517304002

$195.49

24

Insulator

517304314

$61.91

25

Insulator

517304315

$29.07

26

Insulator

517304316

$29.07

27

Insulator

517304319

$29.07

28

Windshield Ass'y

860201000

$207.43

31

Grommet

517303756

$3.61

32

Button

517304744

$2.18

33

Black, RH Side Panel

517306977

$222.36

34

Foam Right

517304709

$52.96

35

RH Rear Foam

517304310

$60.42

36

Heat Shield | Package SWT

508000926

Unavailable

37

Black, LH Side Panel

517306979

$222.36

38

Foam LH

517304707

$52.96

39

LH Rear Foam

517304309

$60.42

40

Handle Fastener Quarter-Turn

517304297

$14.18

41

Quarter-Turn Handle

517304296

$14.18

42

Locking Plate

517304538

$4.16

43

Side Panel Support | Except Package SWT

517304497

$17.88

43

Rivet | Except Package SWT

293150211

$1.99

44

Grommet

517303756

$3.61

45

End Piece Latch

517304075

$4.30

46

Latch-Panel

517306057

$22.36

47

RH/LH Mirror Ass'y | Includes 50 to 54

517305787

$69.37

48

Torx Truss Screw M6 X 16

250000721

$1.60

49

Domed Nut M6

232361493

$2.03

50

Rubber Washer 5 mm

250200024

$2.03

51

Washer

20117

$5.06

52

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$135.79

53

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$22.36

54

Cap

515176498

$11.82

55

Rubber Cap Protector

219800280

$17.13

56

Torx Screw M6 X 20

250000722

$1.54

57

Panel Nut M6 X 1.0

250100198

$1.99

58

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$135.79

59

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$22.36

60

Cap

515176498

$11.82

61

Rubber Cap Protector

219800280

$17.13

62

Torx Screw M6 X 20

250000722

$1.54

63

Panel Nut M6 X 1.0

250100198

$1.99
