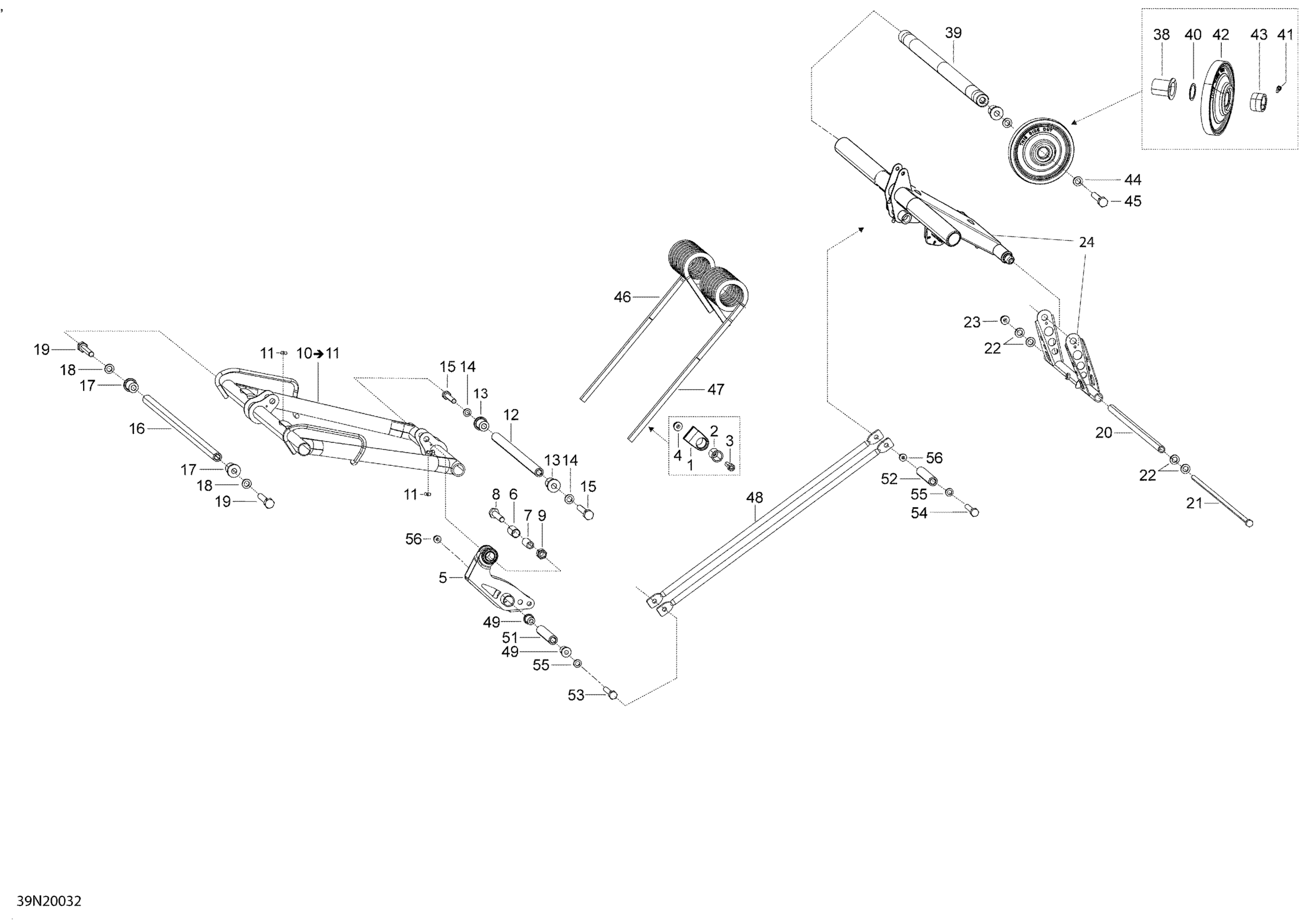

Ski-Doo SKANDIC WT 550F - 2020 Suspension, Rear - Upper Section Diagram

#

Description
Price

1

Spring Support Kit

861805547

$10.49

2

Spring Support Kit

861805547

$10.49

3

Socket Head Screw M8 X 25

205082544

$1.15

4

Hex. Flange Elastic Nut M8

233281414

$1.47

5

Rocker

503192211

$83.99

6

Bushing

503193037

$16.18

7

Bushing | Includes 240d to 240d1

503189282

$4.34

8

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

9

Elastic Locking Nut M10 X 1.5

233601416

$1.69

10

Front Arm Ass'y | Includes 1400 to 1400a

503193274

$222.49

11

Grease Fitting

408200700

$3.49

12

Lower Shaft

503191390

$28.99

13

Bushing

503189324

$14.15

14

Washer

503192496

$0.77

15

Hex. Screw S.Grip M10 X 55

250000605

$8.11

16

Upper Shaft

503191391

$36.99

17

Bushing

503189324

$14.15

18

Washer

503189564

$0.74

19

Hex. Screw S.Grip M10 X 55

250000605

$8.11

20

Axle Pivot

503191396

$80.49

21

Bolt 369MM

503195156

$25.99

22

Washer

503189157

$3.28

23

Hex. Flange Elastic Nut M8

233281414

$1.47

24

Rear Arm Ass'y | Includes 3000 to 3000q

503195402

$269.99

38

Cushion

503191451

$14.15

39

Upper Shaft

503191405

$94.99

40

Washer

503190328

$12.65

41

Socket Set Screw M6 X 8

206260844

$1.48

42

Wheel 165 | Includes 3070 to 3070a

503190803

$51.99

43

Retaining Ring

503194366

$39.99

44

Washer

503192491

$4.54

45

Socket Screw M12 X 35

250000484

$7.51

46

Black RH Square Spring

503192377

$111.49

47

Black LH Square Spring

503192378

$111.49

48

Link Rod

503191765

$18.49

49

Swivel Bushing

503191555

$7.83

51

Axle Bar (Long)

503190643

$17.39

52

Axle Bar (Long)

503190643

$17.39

53

Hex. Screw M8 X 90

207089044

$3.48

54

Hex. Screw M8 X 90

207089044

$3.48

55

Washer

503189157

$3.28

56

Hex. Flange Elastic Nut M8

233281414

$1.47
