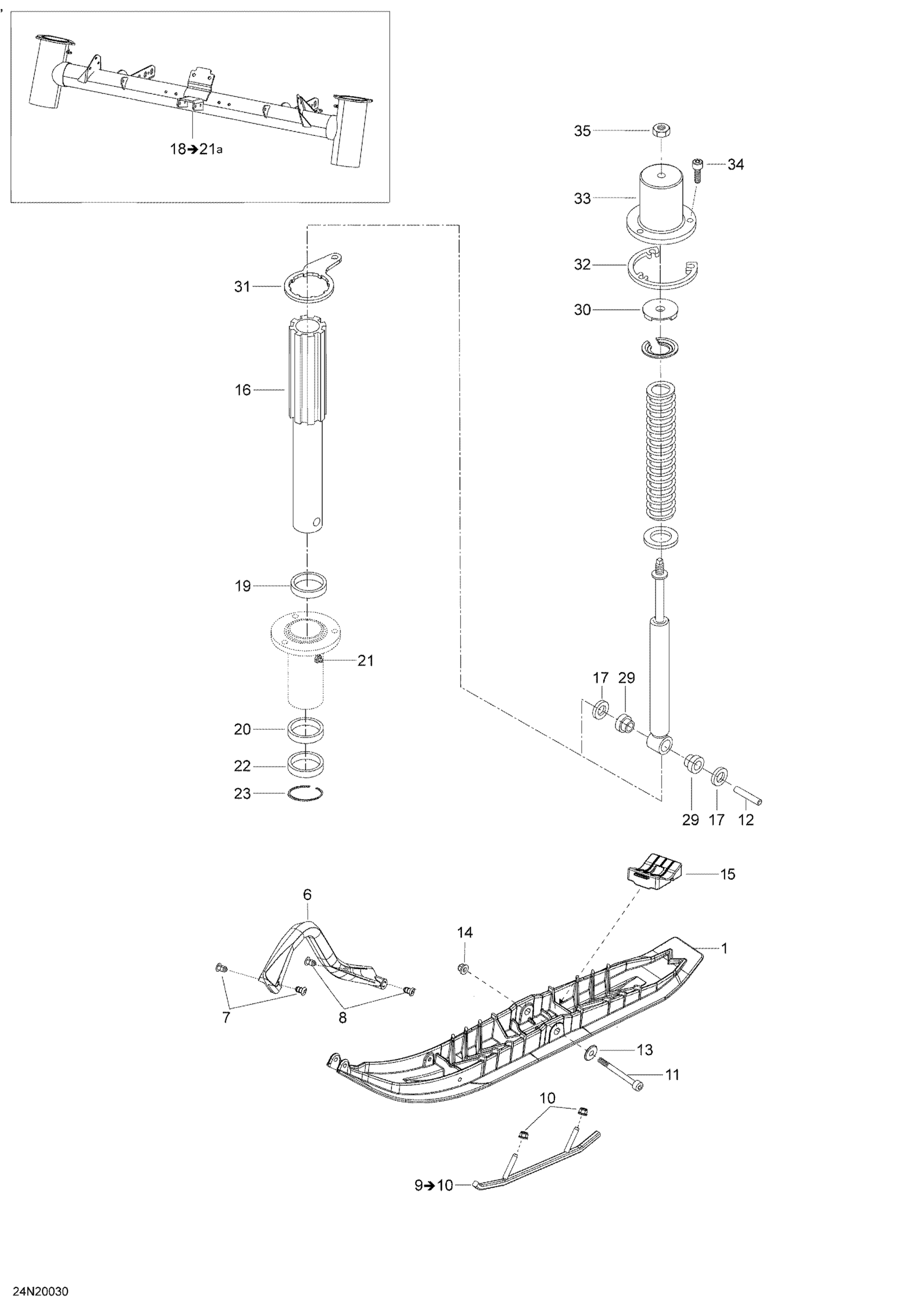

Ski-Doo SKANDIC WT 550F - 2020 Suspension, Front - System Diagram

#

Description
Price

1

Black, Ski

505073227

$179.99

6

Black, Handle

505072976

$35.99

7

Retainer 17mm long

505071812

$5.95

8

Retainer 23mm Long

505072133

$6.78

9

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$92.99

10

Hex. Flange Elastic Nut M8

233281414

$1.47

11

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

12

Ski Axle

505073209

$16.49

13

Washer

503192496

$0.77

14

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

15

Ski Stopper

505072594

$18.49

16

Ski Leg

505073200

$309.99

17

Spacer

505072579

$9.69

18

Module Ass'y | Includes 400 to 400d

505073967

$539.99

19

Upper Cushion

414803100

$10.49

20

Lower Cushion

414803200

$14.68

21

Grease Fitting

408200700

$3.49

21a

Insert

293450275

$12.99

22

Seal Oil

505072696

$45.99

23

Circlip

505072698

$14.99

29

Cushion

572034500

$12.58

30

Rubber Bumber

605354835

$16.49

31

Steering Arm

505073823

$94.49

32

Spacer

505073983

$25.99

33

Suspension Cover LH

505072874

$139.99

33

Suspension Cover RH

505072875

$139.99

34

Socket Head Screw M8 X 20

205082044

$1.15

35

Hex. Flange Elastic Nut M10

233201414

$1.58
