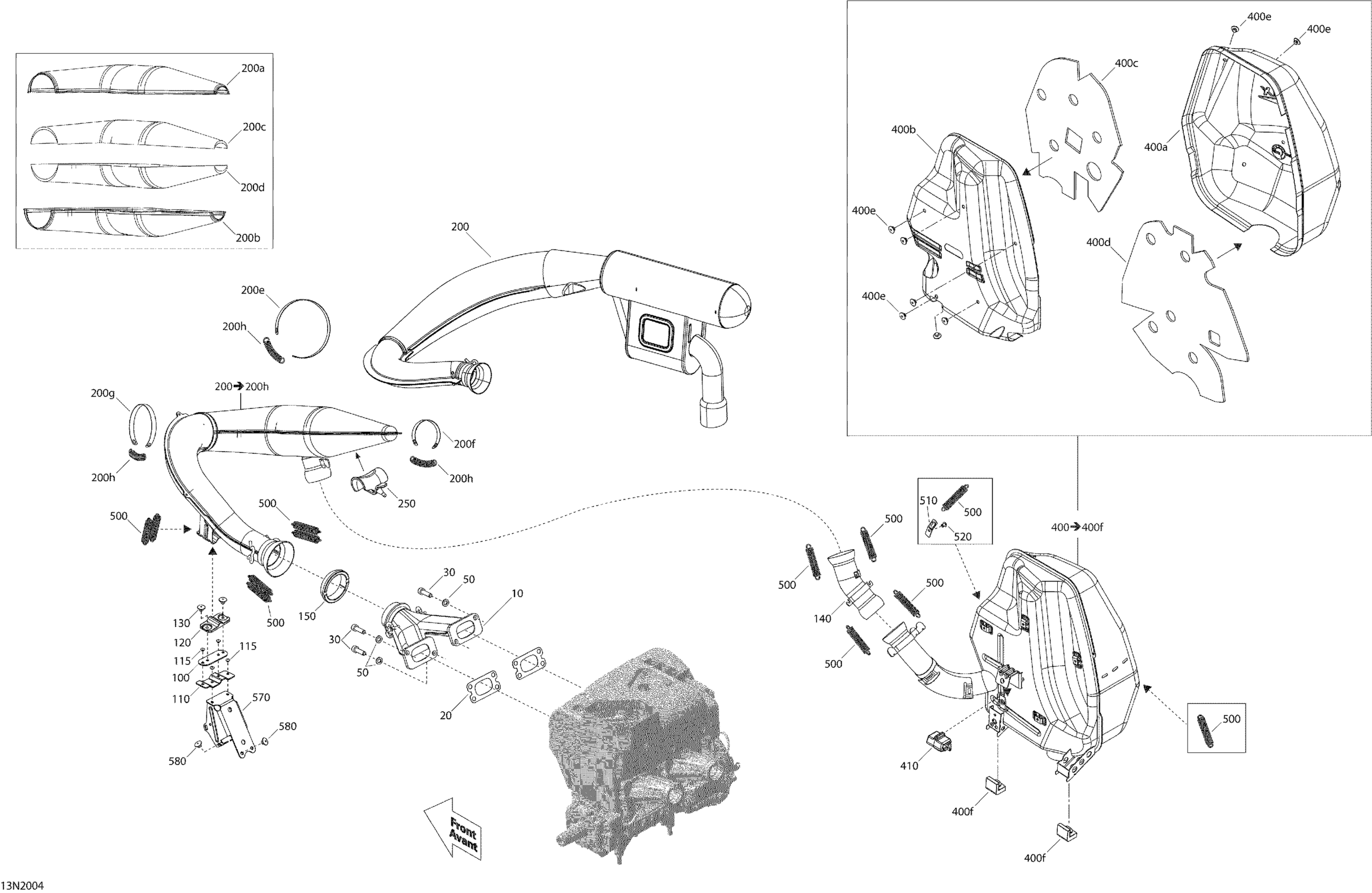

Ski-Doo 001 - SKANDIC WT 550F - North America, 2020 02- Engine - Exhaust Diagram

Description

Price

Exhaust Manifold

420673065

$339.99

Gasket 1.0 mm

420831849

$8.85

Socket Head Screw M8 X 30

205083044

$1.15

Washer

250200111

$2.11

100

Support Plate

514055275

$7.20

110

Support

514055270

$13.12

115

Avex Rivet

390909200

$0.30

120

Bumper

514054617

$16.34

130

Pop Rivet 3/16"

293150103

$0.55

140

Exhaust Elbow

514054411

$79.49

150

Exhaust Gasket

514053644

$25.99

200

TUNED PIPE ASS'Y - Call your local BRP dealership | Includes 200 to 200h

514054414

$649.99

200a

Rear Upper Half-enveloppe

514054208

$53.99

200b

Rear Lower Half Envellope

514054210

$53.99

200c

Upper Insulating Wool

514054244

$16.49

200d

Lower Insulating Wool

514054243

$16.49

200e

Retaining Strap

514053502

$11.47

200f

RETAINING STRAP - Call your local BRP dealership

514053491

Unavailable

200g

Retaining Strap

514053498

$11.47

200h

Spring

514053643

$6.35

250

Bumper

514054513

$20.49

400

Muffler Ass'y | Includes 400 to 400g

514055055

$858.49

400a

RH Deflector

514054984

$58.99

400b

LH DEFLECTOR - Call your local BRP dealership

514055069

Unavailable

400c

LH Insulated Wool

514054421

$21.99

400d

RH Insulating Wool

514054711

$21.99

400e

Pop Rivet 3/16”

390910000

$0.57

400f

Lower Stopper

514054529

$18.49

410

Upper Stopper

514054606

$19.99

500

Spring

415107100

$6.35

510

Spring Bracket

514054522

$8.45

520

Pop Rivet 3/16"

390402200

$0.35

570

Exhaust Muffler Support

514054767

$20.49

580

Hemlock Rivet, 6.5 mm

293150096

$3.27
