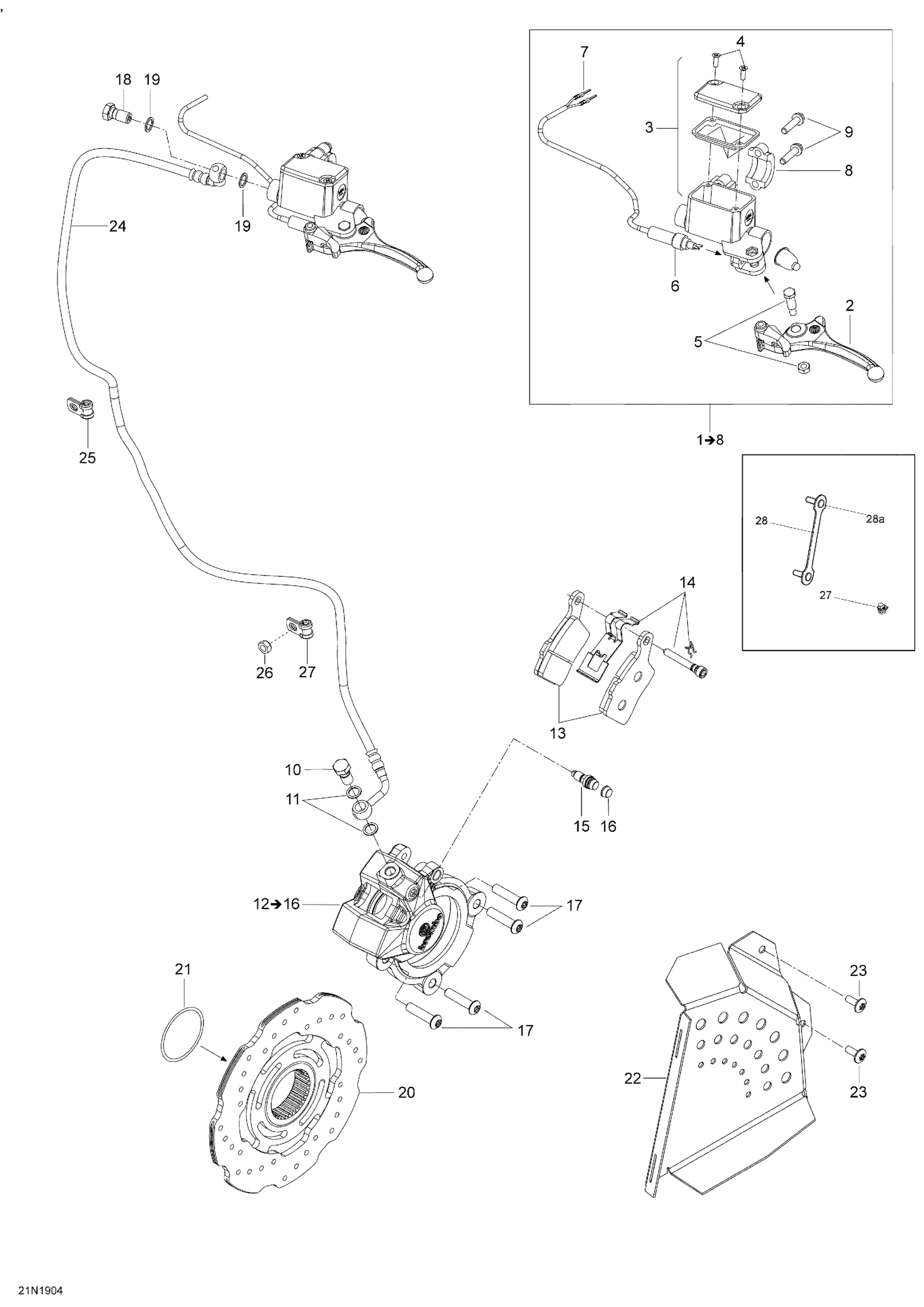

Ski-Doo Skandic WT 550F, 2019 Brakes Diagram

#

Description
Price

1

Master Cylinder Ass. | Includes 10 to 10g

507032596

$198.48

2

Lever With Parking Lock

507032476

$98.48

60

Clamp And Screw Kit

507032477

$22.36

60a

Hex. Flange Screw M6 X 25

250000447

$2.00

3

Master Cylinder Reservoir Ass'y | Includes 10c to 10c1

507032478

$106.69

4

Screw M4 X 20

415129356

$2.10

5

Pin Ass'y

415030000

$17.13

6

Microswitch This part replaces 507032592.

507032597

$70.12

8

Clamps | Includes 75a to 75b

719000049

$22.36

9

Hex. Flange Screw M6 X 25

250000447

$2.00

10

Banjo Bolt

507032551

$5.22

11

Copper Washer

705601628

$4.21

12

Brake Caliper | Includes 200 to 200c

507032720

$323.10

13

Brake Pads Kit

507032473

$49.22

14

Brake Spring Kit

507032722

$35.79

15

Bleeder

507032475

$17.13

17

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$1.91

18

Banjo Bolt

507032551

$5.22

19

Copper Washer

705601628

$4.21

20

Disk

507032513

$226.84

21

O-ring

293300209

$2.18

22

Disk Protector | WT

507032537

$58.93

23

Hex. Flange Elastic Nut M6

233261494

$1.45

24

Hose, Steel Braided | SWT

507032547

$44.00

24

Hose, Steel Braided | WT

507032548

$44.00

25

Open Clamp

414108400

$3.01

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

27

Hexagonal Cap

293900129

$2.00

28

Counter Plate | Includes 505 to 505a

518328661

$17.88

28a

Clinch Stud M6 X 20

250300027

$1.87
