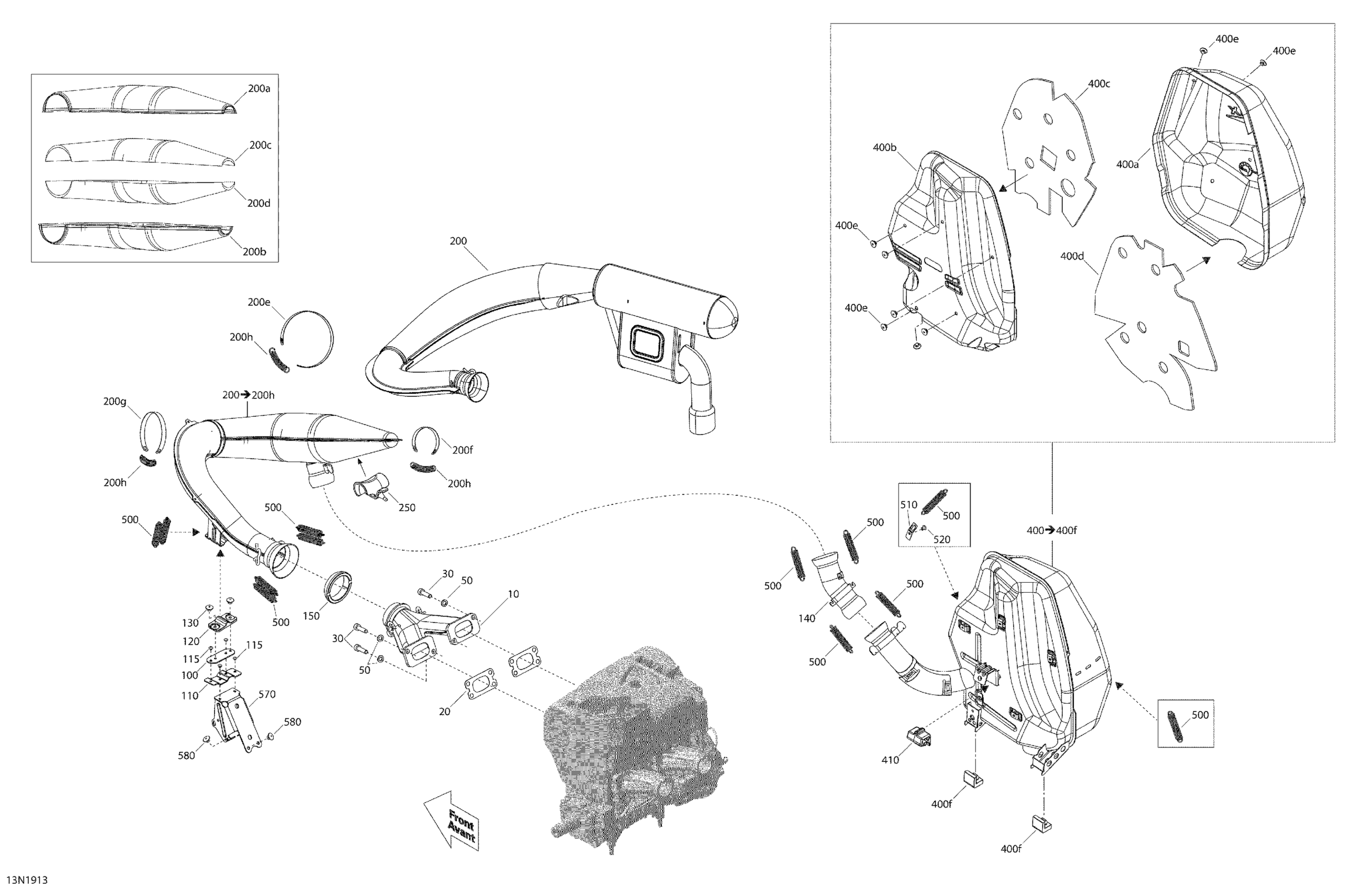

Ski-Doo Skandic WT 550F, 2019 Exhaust WT - 550F Diagram

#

Description
Price

10

Exhaust Manifold

420673065

$319.20

20

Gasket 1.0 mm

420831849

$7.92

30

Socket Head Screw M8 X 30

205083044

$0.92

50

Washer

250200111

$1.74

100

Support Plate

514055275

$5.35

110

Support

514055270

$10.80

115

Avex Rivet

390909200

$0.29

120

Bumper

514054617

$14.65

130

Pop Rivet 3/16"

293150103

$0.54

140

Exhaust Elbow

514054411

$77.66

150

Exhaust Gasket

514053644

$25.35

200

TUNED PIPE ASS'Y - Call your local BRP dealership | Includes 200 to 200h

514054414

Unavailable

200a

Rear Upper Half-enveloppe

514054208

$50.74

200b

Rear Lower Half Envellope

514054210

$54.58

200c

Upper Insulating Wool

514054244

$12.65

200d

Lower Insulating Wool

514054243

$12.65

200e

Retaining Strap

514053502

$8.35

200f

RETAINING STRAP - Call your local BRP dealership

514053491

Unavailable

200g

Retaining Strap

514053498

$8.35

200h

Spring

514053643

$6.20

250

Bumper

514054513

$19.20

400

Muffler Ass'y | Includes 400 to 400g

514055055

$738.43

400a

RH Deflector

514054984

$54.58

400b

LH DEFLECTOR - Call your local BRP dealership

514055069

Unavailable

400c

LH Insulated Wool

514054421

$18.43

400d

RH Insulating Wool

514054711

$18.43

400e

Pop Rivet 3/16”

390910000

$0.48

400f

Lower Stopper

514054529

$17.66

410

Upper Stopper

514054606

$14.92

500

Spring

415107100

$6.20

510

Spring Bracket

514054522

$6.28

520

Pop Rivet 3/16"

390402200

$0.26

570

Exhaust Muffler Support

514054767

$18.43

580

Hemlock Rivet, 6.5 mm

293150096

$3.17
