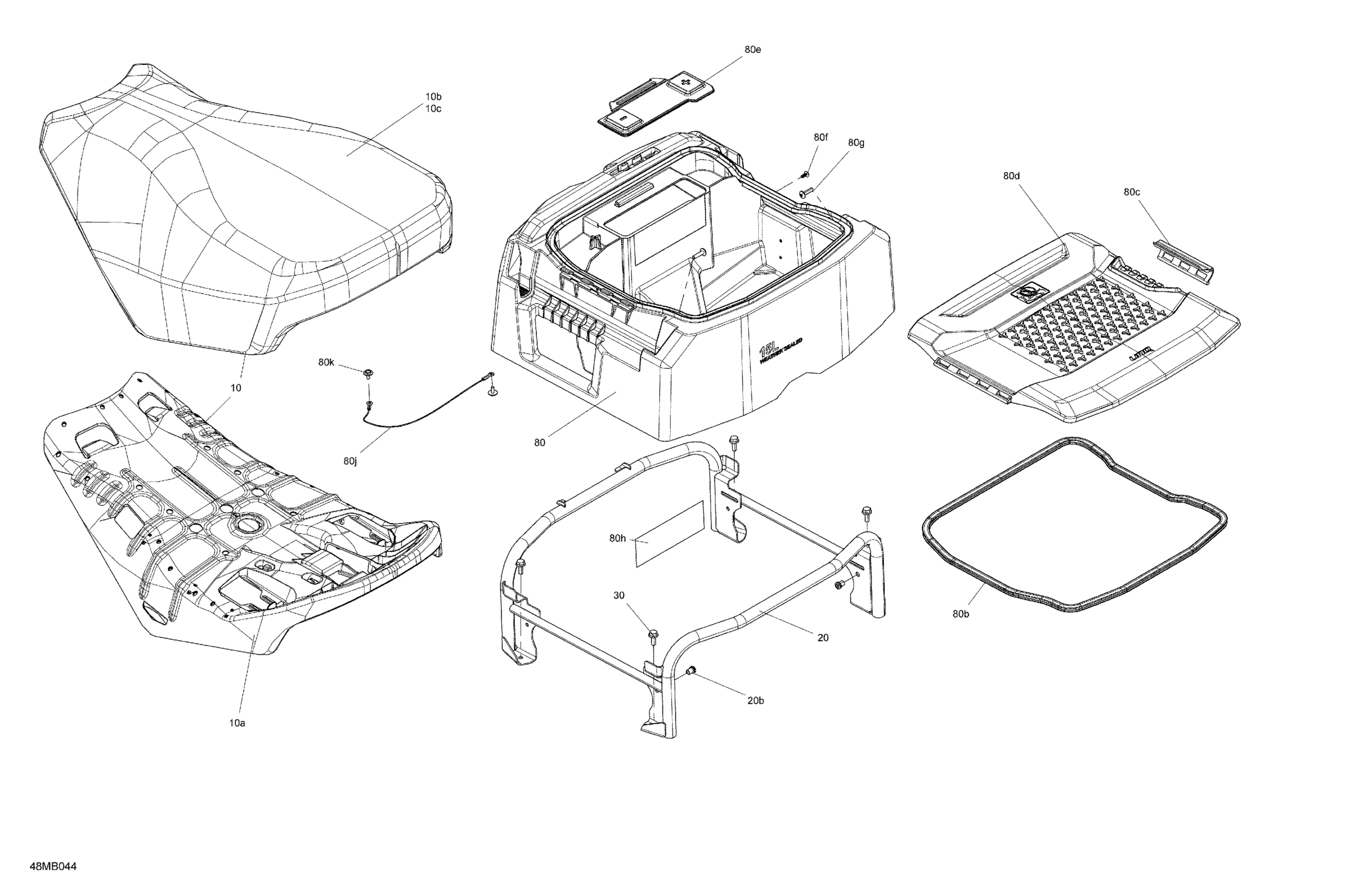

Ski-Doo SKANDIC SPORT 600 EFI - 2022 Body - Seat Diagram

SEAT DRIVER ASSY - Call your local BRP dealership | Includes 10 to 10c

510007148

Unavailable

Driver Seat Base

510007142

$68.43

Driver Seat Foam

510006413

$313.82

Driver Seat Cover

510006414

$193.82

Seat Support Ass'y | Includes 20 to 20b

510007010

$88.99

Insert M5 X 0.8

293450268

$1.95

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

Storage Box Ass'y | Includes 80 to 80m

510007165

$352.28

Seal, 1PC = 3M

293830188

$37.66

Latch

269502449

$4.11

Box Cover

511001274

$37.66

Access Cover

510006789

$7.82

Torx-Truss Screw K40 X 10

250001034

$0.81

Torx Screw M5 X 20

250000724

$1.39

Warning Label

516009465

Unavailable

Retaining Cable

293750092

$9.95

Plastite Screw M4 X 10

250000805

$1.74
