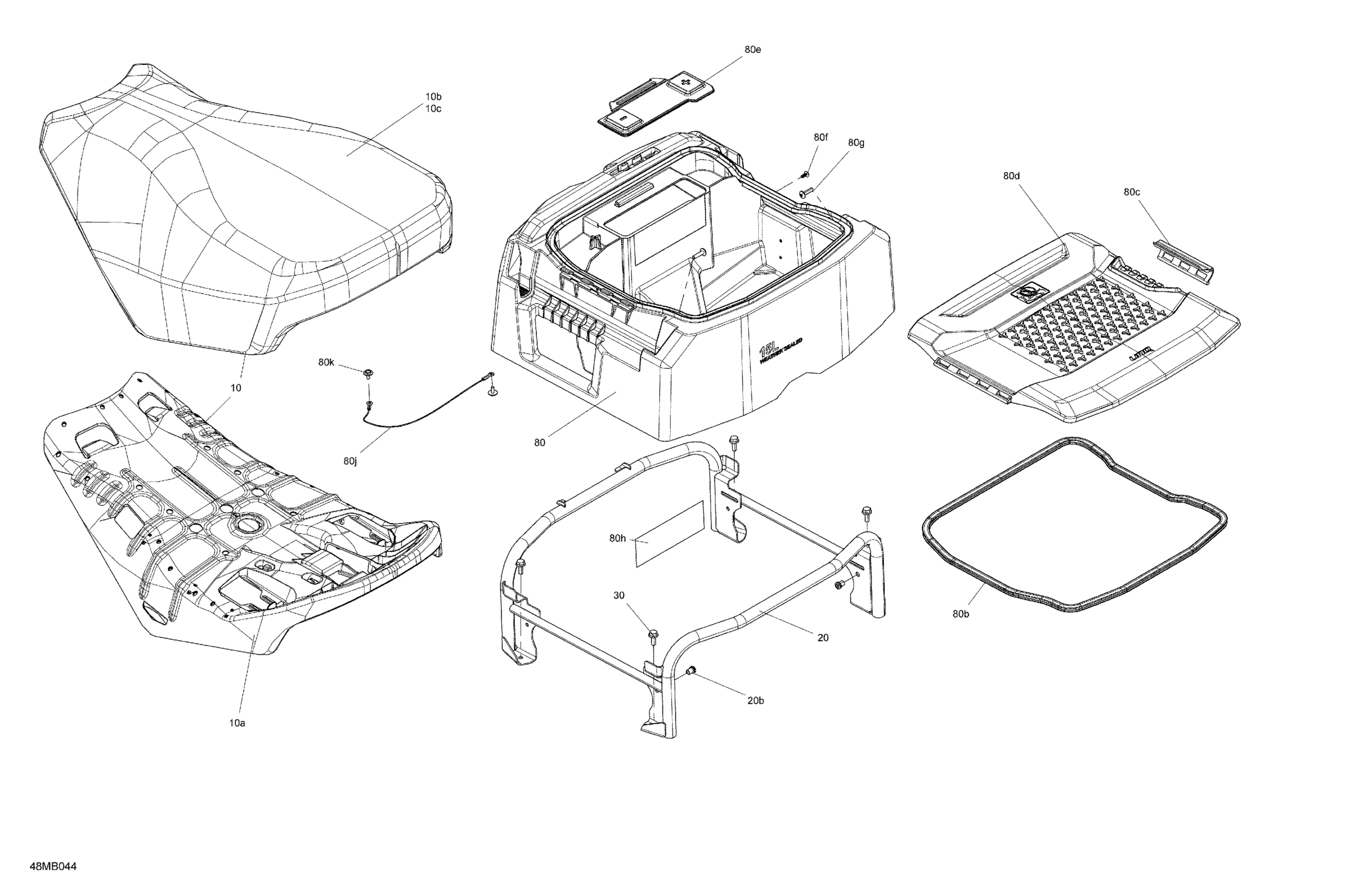

Ski-Doo 001 - SKANDIC SPORT 600 EFI - North America, 2022 07- Body - Seat Diagram

SEAT DRIVER ASSY - Call your local BRP dealership | Includes 10 to 10c

510007148

Unavailable

Driver Seat Base

510007142

$72.99

Driver Seat Foam

510006413

$329.99

Driver Seat Cover

510006414

$203.99

Seat Support Ass'y | Includes 20 to 20b

510007010

$86.99

Insert M5 X 0.8

293450268

$2.09

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Storage Box Ass'y | Includes 80 to 80m

510007165

$379.99

Seal, 1PC = 3M

293830188

$39.99

Latch

269502449

$4.39

Box Cover

511001274

$39.99

Access Cover

510006789

$8.74

Torx-Truss Screw K40 X 10

250001034

$0.98

Torx Screw M5 X 20

250000724

$1.69

Warning Label

516009465

Unavailable

Retaining Cable

293750092

$12.99

Plastite Screw M4 X 10

250000805

$2.11
