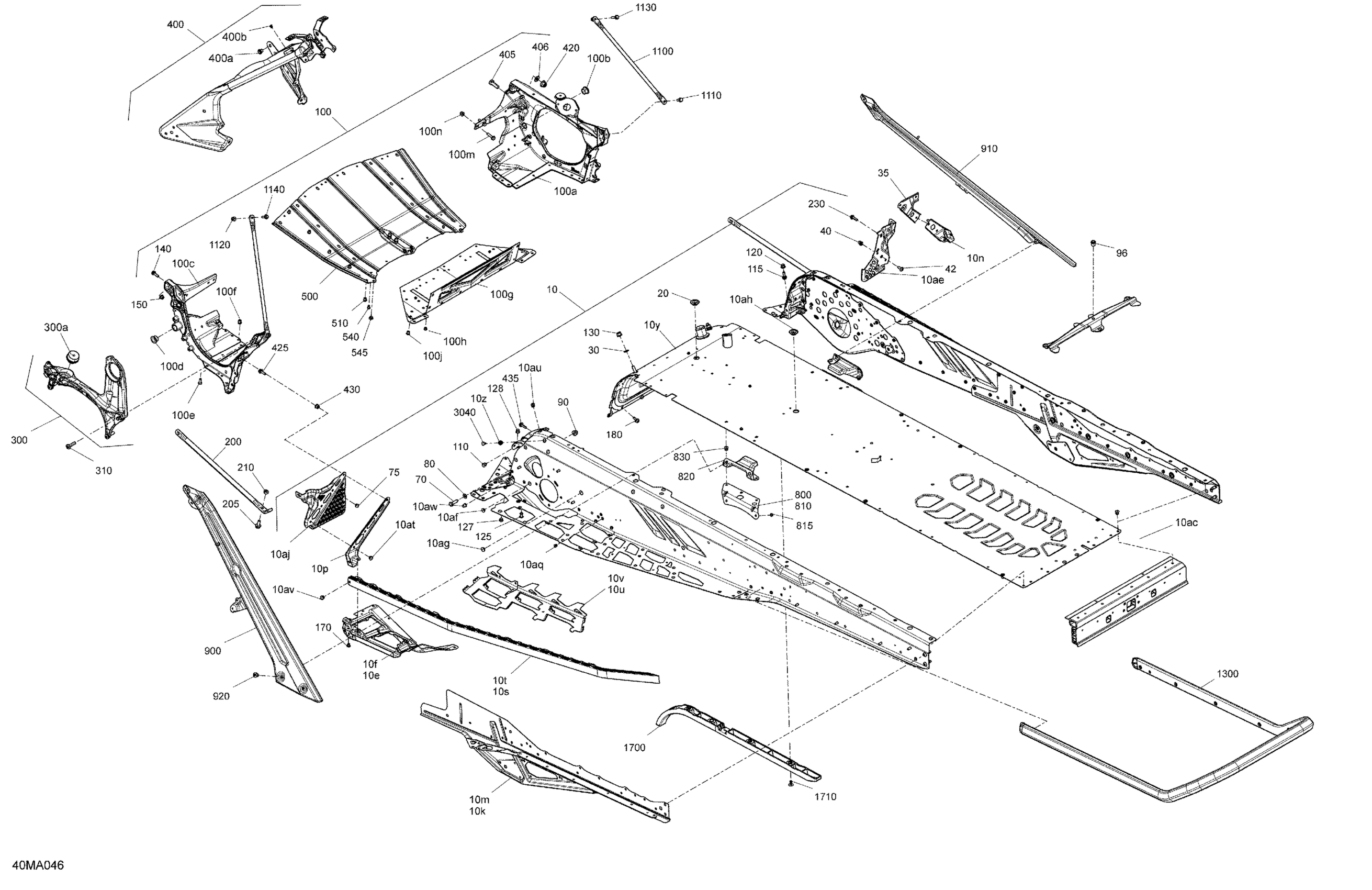

Ski-Doo SKANDIC SPORT 600 EFI - 2021 Frame - System - Sport Diagram

#

Description
Price

10

Chassis Tunnel Module 154" | Includes 10 to 10aw

415130424

$3.00

10e

Deep Black, RH Footrest Reinforcement

518332803

$86.99

10f

Deep Black, LH Footrest Reinforcement

518332802

$18.49

10k

RH Rear Suspension Support

518332254

$109.99

10m

LH Rear Suspension Support

518332253

$109.99

10n

RH Footrest Reinforcement

518329789

$19.99

10p

Deep Black, LH Chasssis Reinforcement

518331560

$19.99

10s

RH Roller

518329648

$194.99

10t

LH Roller

518328452

$194.99

10u

RH Central Tunnel Reinforcement

518331564

$35.99

10v

LH Central Tunnel Reinforcement

518331565

$35.99

10y

Radiator Tunnel Ass'y 154

518332622

$709.99

10z

Insert Half Hex Body M6 x 1.0

250100199

$3.19

10ac

Rear Cap

518332315

$72.99

10ae

RH Footrest

518331822

$24.49

10af

Full Moon Dart 8 mm

293730041

$2.21

10ag

Full Moon Dart 10 mm

293730059

$4.55

10ah

Black, Plug

293730052

$9.19

10aj

LH Footrest

518329791

$43.99

10aq

Rivet Avibulb 3/16

293150203

$2.09

10at

Hemlock Rivet, 6.5 mm

293150096

$3.27

10au

Hemlock Rivet, 6.5 mm

293150119

$4.29

10av

Hemlock Rivet, 6.4 mm

293150174

$7.86

10aw

Collar Huck Magna-Grip 6.4

293150149

$0.48

20

Black, Plug

293730052

$9.19

30

Flat Washer 8 mm

234081410

$0.83

35

RH Stirrup Reinforcement

518331727

$19.99

40

Insert

293450275

$12.99

42

Torx Head Screw M6 X 16

250000717

$2.11

70

Hex Screw M8 X 30

250000942

$1.15

75

Hemlock Rivet, 6.5 mm

293150096

$3.27

80

Flat Washer 8 mm

234081410

$0.83

90

Hex. Flange Elastic Nut M8

233281414

$1.47

96

Insert

293450275

$12.99

100

Engine Chassis Module Ass'y | Includes 100 to 100n

518332722

$589.99

100a

RH Member Ass'y | Includes 100a to 100a3

518332687

$219.99

100b

Leg Bushing

505072690

$12.49

100c

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$204.99

100d

Leg Bushing

505072690

$12.49

100e

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

100f

Collar Huck Magna-Grip 6.4

293150149

$0.48

100g

Bottom Plate

518332716

$36.99

100h

Rivet Avibulb 3/16

293150203

$2.09

100j

Insert M5 X 0.8

293450268

$2.09

100m

Hex. Flange Screw M6 X 25

250000945

$4.44

100n

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

110

Ornit Rivet 6,5 X 14.5

293150266

$2.40

115

Hex. Flange Screw M6 X 20

207662046

$2.11

120

Elastic Flange Nut M6 X 1.0

233261416

$2.11

125

Hemlock Rivet 6.5 mm

293150120

$7.41

127

Rivet 6,4 mm

293150173

$4.29

128

Hemlock Rivet, 6.5 mm

293150119

$4.29

130

Hex. Flange Elastic Nut M8

233281414

$1.47

140

Hex. Flange Screw M6 X 20

207662046

$2.11

150

Elastic Flange Nut M6 X 1.0

233261416

$2.11

170

Insert M5 - 0.8

293450267

$4.59

180

Hex. Flange Screw M6 X 16

207661646

$1.36

200

Lateral Reinforcement

518332541

$19.99

205

Hex. Flange Screw M8 X 20

207682044

$1.15

210

Hex. Nut M8

232081414

$0.72

230

Hex. Flange Screw M6 X 20

207662046

$2.11

300

LH Side Member Ass'y | Includes 300 to 300a

518333692

$264.99

300a

Vibration Damper

512061516

$61.99

310

Screw-Pan HD.Torx M8X30

250001060

$0.82

400

Chassis Suspension Module | Includes 400 to 400b

518331592

$379.99

400a

Insert

293450275

$12.99

400b

Rivet Avibulb 3/16

293150203

$2.09

405

Screw Hex M10 X 30

250001148

$1.69

406

Flat Washer 10 mm

234001410

$1.26

420

Hex. Flange Elastic Nut M10

250100165

$0.85

425

Hex. Flange Screw M6 X 20

207662046

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

435

Hex. Flange Screw M6 X 20

207562056

$2.11

500

Front Bottom Plate

518331615

$31.99

510

Insert M5 X 0.8

293450268

$2.09

540

Avex Rivet

390909100

$0.30

545

Rivet 6,4 mm

293150173

$4.29

800

LH Under Chassis Reinforcement

518331729

$13.49

810

RH Under Chassis Reinforcement

518331731

$19.99

815

Hemlock Rivet, 6.5 mm

293150096

$3.27

820

Cross Member Support

518331733

$33.99

830

Hemlock Rivet, 6.5 mm

293150119

$4.29

900

Deep Black, LH Diagonal Cross Member Ass This part replaces 518333270.

518331725

$119.99

910

Deep Black, RH Diagonal Cross Member Ass This part replaces 518333271.

518331726

$119.99

920

Pan Head Torx Screw M8 X 12

250000887

$1.90

1100

Upper Colomn Support

518329974

$22.49

1110

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

1120

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1130

Hex. Flange Screw M6 X 25

207662556

$4.44

1140

Hex. Flange Screw M6 X 20

207662046

$2.11

1300

Rear Bumper | Includes 1300 to 1300c

518331043

$111.49

1700

Front Protector

518329982

$18.49

1710

Pop Rivet 3/16”

293150108

$1.19

3040

Dart

293730079

$2.09
