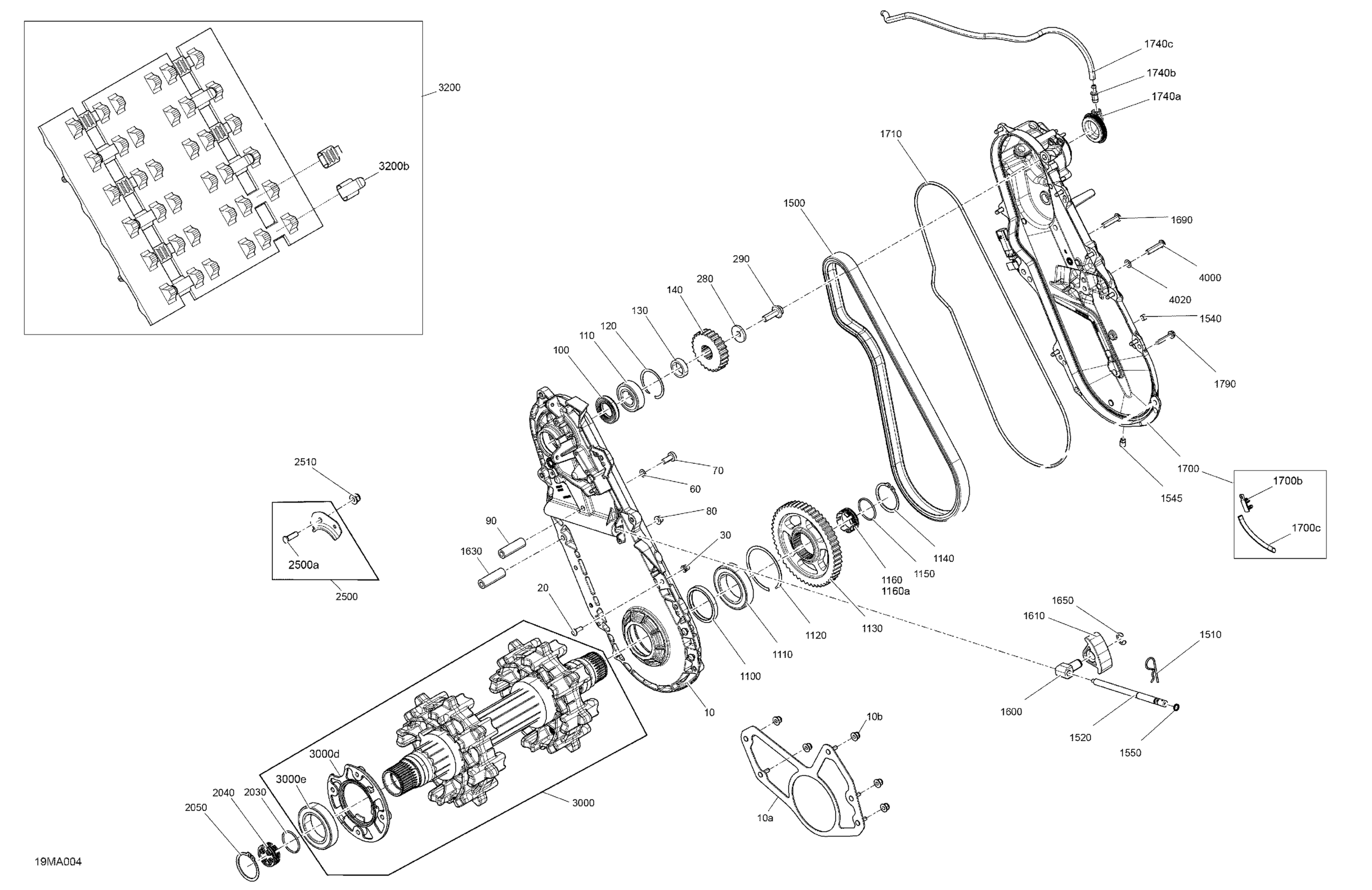

Ski-Doo SKANDIC SPORT 600 EFI - 2021 Drive - System Diagram

#

Description
Price

10

Black, Chain Case Ass'y | Includes 10 to 10b

504154227

$96.99

10

Black, Chain Case Ass'y | Includes 10 to 10b

504154227

$96.99

10a

Plate Ass'y

504153560

$79.99

10a

Plate Ass'y

504153560

$79.99

10b

Flange Elastic Nut M6

233261434

$4.44

10b

Flange Elastic Nut M6

233261434

$4.44

20

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

20

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

30

Collar Huck Magna-Grip 6.4

293150149

$0.48

30

Collar Huck Magna-Grip 6.4

293150149

$0.48

60

Washer

504082900

$2.64

60

Washer

504082900

$2.64

70

Torx Screw Button Head M8 x 70

250001052

$5.03

70

Torx Screw Button Head M8 x 70

250001052

$5.03

80

Flange Elastic Nut M6

233261434

$4.44

80

Flange Elastic Nut M6

233261434

$4.44

90

Spacer

504153929

$3.49

90

Spacer

504153929

$3.49

100

Oil Seal

293200168

$14.49

100

Oil Seal

293200168

$14.49

110

Ball Bearing

293350115

$12.11

110

Ball Bearing

293350115

$12.11

120

Circlip

504152576

$9.99

120

Circlip

504152576

$9.99

130

Shim

504152628

$10.99

130

Shim

504152628

$10.99

140

Sprocket, 19 Teeth

504152031

$109.99

140

Sprocket, 19 Teeth

504152031

$109.99

280

Spring Washer M10

504152784

$7.65

280

Spring Washer M10

504152784

$7.65

290

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.96

290

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.96

1100

Oil Seal

293200159

$16.25

1100

Oil Seal

293200159

$16.25

1110

Ball Bearing

293350059

$30.99

1110

Ball Bearing

293350059

$30.99

1120

Circlip

504152582

$9.99

1120

Circlip

504152582

$9.99

1130

Sprocket 53 Teeth

504153998

$49.99

1130

Sprocket 53 Teeth

504153998

$49.99

1140

Circlip

504152572

$6.95

1140

Circlip

504152572

$6.95

1150

O-Ring

293300201

$1.01

1150

O-Ring

293300201

$1.01

1160

Magnetic Cap | Includes 150c to 150c2

504154019

$26.49

1160

Magnetic Cap | Includes 150c to 150c2

504154019

$26.49

1160a

Cap

504154043

$2.11

1160a

Cap

504154043

$2.11

1500

Drive Chain 116 Links

504153397

$227.99

1500

Drive Chain 116 Links

504153397

$227.99

1510

Hair Pin

414575600

$1.89

1510

Hair Pin

414575600

$1.89

1520

Adjustment Screw

504153760

$24.99

1520

Adjustment Screw

504153760

$24.99

1540

Hex. Countersunk Drain Plug

250500013

$7.89

1540

Hex. Countersunk Drain Plug

250500013

$7.89

1545

Hex. Countersunk Drain Plug

250500013

$7.89

1545

Hex. Countersunk Drain Plug

250500013

$7.89

1550

O-Ring

293300202

$1.01

1550

O-Ring

293300202

$1.01

1600

Tensioner

504153559

$18.99

1600

Tensioner

504153559

$18.99

1610

Slider Chain

504153312

$65.99

1610

Slider Chain

504153312

$65.99

1630

Spacer

504153929

$3.49

1630

Spacer

504153929

$3.49

1650

Circlip

293370105

$2.11

1650

Circlip

293370105

$2.11

1690

Hex. Flange Screw M8 X 85, Scotch Grip

207588544

$3.38

1690

Hex. Flange Screw M8 X 85, Scotch Grip

207588544

$3.38

1700

Chain Case Cover Ass'y | Includes 1700 to 1700c

504154077

$189.99

1700

Chain Case Cover Ass'y | Includes 1700 to 1700c

504154077

$189.99

1700b

Clip Connector

515178223

$2.09

1700b

Clip Connector

515178223

$2.09

1700c

Braided Sleeve

415130141

$55.99

1700c

Braided Sleeve

415130141

$55.99

1710

O-Ring

293300200

$13.16

1710

O-Ring

293300200

$13.16

1740a

Cap

504152860

$20.49

1740a

Cap

504152860

$20.49

1740b

Male Connector

414580700

$4.12

1740b

Male Connector

414580700

$4.12

1740c

Polyurethane Hose 10000Mm Long

219704410

$56.99

1740c

Polyurethane Hose 10000Mm Long

219704410

$56.99

1790

Hex. Flange Screw M6 X 35

250001015

$1.46

1790

Hex. Flange Screw M6 X 35

250001015

$1.46

2030

O-Ring

293300201

$1.01

2030

O-Ring

293300201

$1.01

2040

Cap

504154043

$2.11

2040

Cap

504154043

$2.11

2050

Circlip

504152572

$6.95

2050

Circlip

504152572

$6.95

2500

Bearing Housing Ass'y | Includes 2500 to 2500b

504153695

$19.49

2500

Bearing Housing Ass'y | Includes 2500 to 2500b

504153695

$19.49

2500a

Clinch Stud, M8 X 25

250300028

$4.44

2500a

Clinch Stud, M8 X 25

250300028

$4.44

2510

Hex. Flange Elastic Nut M8

233281414

$1.47

2510

Hex. Flange Elastic Nut M8

233281414

$1.47

3000

Drive Axle Ass'y | Includes 3000 to 3000f

504154435

$381.49

3000

Drive Axle Ass'y | Includes 3000 to 3000f

504154435

$381.49

3000d

Retaining Ring

504153886

$21.99

3000d

Retaining Ring

504153886

$21.99

3000e

Ball Bearing

293350059

$30.99

3000e

Ball Bearing

293350059

$30.99

3200

Track 20 X 154 X 1,25 | Includes 3200 to 3200b

504154705

$1.00

3200

Track 20 X 154 X 1,25 | Includes 3200 to 3200b

504154705

$1.00

3200b

CLEAT - Call your local BRP dealership

M5318322

Unavailable

3200b

CLEAT - Call your local BRP dealership

M5318322

Unavailable

4000

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

4000

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

4020

Washer

504082900

$2.64

4020

Washer

504082900

$2.64
