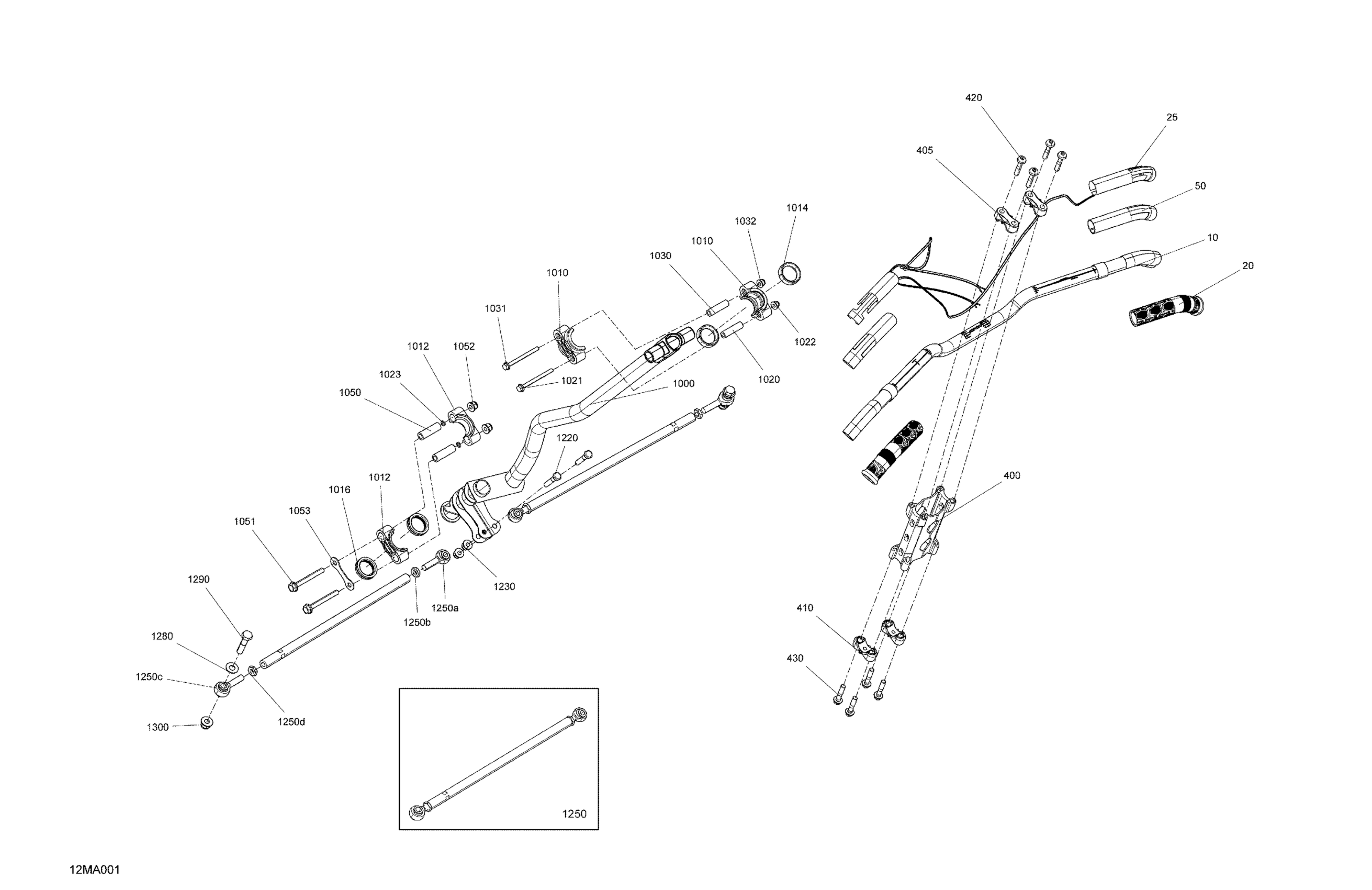

Ski-Doo 001 - SKANDIC SPORT 600 EFI - North America, 2021 03- Mechanic - Steering Diagram

Aluminum Handle Bar

506152825

$80.49

Grip 148mm

506152560

$16.88

Heated Film

506152856

$48.99

Thermal Insulation

506153176

$6.09

Riser Kit 145

860201718

$67.99

Steering Support

506152894

$14.49

Steering Support

506152894

$14.49

Button Head Torx Screw M8 X 38

250000904

$2.11

Hex. Flange Screw M8 X 1.25 x 40

250000852

$2.11

Main Tube

506153024

$189.99

Upper Half Housing

506152219

$1.79

Lower Half Housing

506153048

$6.92

Upper Vibration Ring

506152292

$0.74

Lower Vibration Ring

506152518

$4.79

Housing Bushing

506152297

$12.99

Hex. Flange Screw M6 x 75

250001114

$4.44

Elastic Flange Nut M6 X 1.0

233261416

$2.11

O-Ring

293300123

$1.03

Housing Bushing

506152297

$12.99

Hex. Flange Screw M6 x 75

250001114

$4.44

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Housing Bushing

506152937

$12.99

Hex. Flange Screw M8 X 70

207687044

$7.41

Hex. Elastic Flange Nut M8

233281416

$1.48

Stopper Plate

506152938

$12.99

Hex. Screw M8 X 40

207084044

$1.15

Hex. Elastic Flange Nut M8

233281416

$1.48

Tie Rod Ass'y | Includes 1250 to 1250d

506153104

$71.99

LH Thread Ball Joint

506152081

$41.49

LH Threaded Hex. Jam Nut M10

250100016

$0.74

RH Threaded Ball Joint

506152019

$41.49

RH Threaded Hex. Jam Nut M10

732610010

$0.74

Washer

506152582

$4.55

Hex. Screw M10 X 45

207004544

$1.69

Hex. Flange Elastic M10 x 1.5

233201464

$7.51
