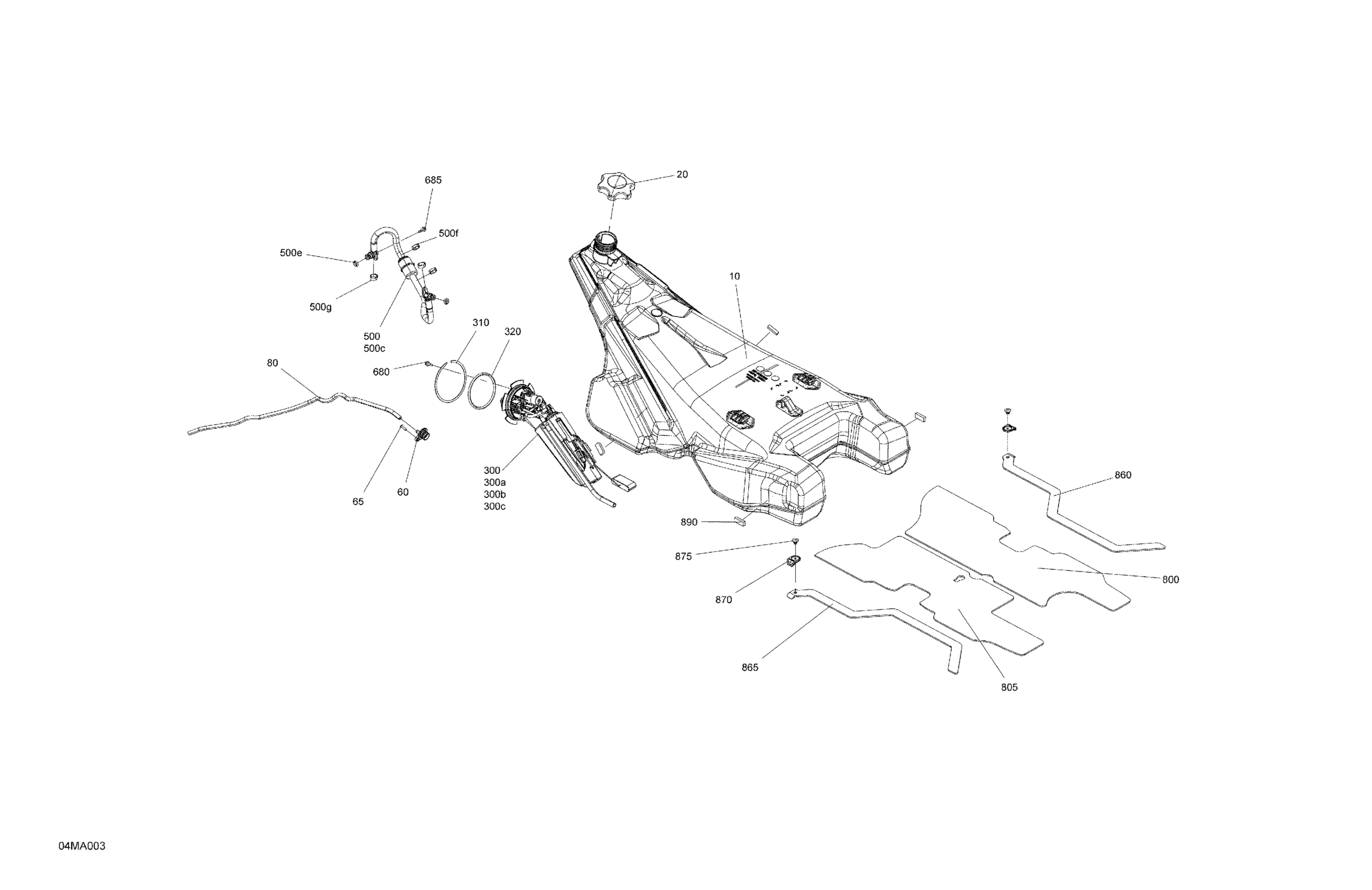

Ski-Doo 001 - SKANDIC SPORT 600 EFI - North America, 2021 02- Engine - Fuel Diagram

Description

Price

Fuel Tank

513034099

$349.99

Fuel Tank Cap

513033969

$26.99

Check Valve

513033849

$36.99

Truss Torx Screw K40 X 16

250000918

$2.11

Polyurethane Hose 10000Mm Long

219704410

$56.99

300

Fuel Pump Ass'y | Includes 300 to 300c

513034083

$259.99

300a

Fuel Filter

415131068

Unavailable

300b

Fuel Level Sensor

415130281

$149.99

300c

Canister

415130507

$85.99

310

Circlip

513033798

$13.99

320

O-Ring

513033862

$23.99

500

Hose Ass'y | Includes 500 to 500h

513034119

$73.99

500c

Fuel Filter

513034047

$21.99

500e

O-Ring

513033668

$10.99

500f

Oetiker Clamp

293650125

$3.29

500g

Crimp Clamp

293650053

$3.09

680

Hex. Flange Screw M5 X 16

250000911

$0.85

685

Hex. Flange Screw M5 X 16

250000911

$0.85

800

RH Insulated Foam

513034052

$12.49

805

LH Insulated Foam

513034053

$12.49

860

RH Foam

513033981

$4.69

865

LH Foam

513033982

$4.69

870

Retainer Plate

513033917

$0.57

875

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

890

Tank Guard

513034038

$4.39
