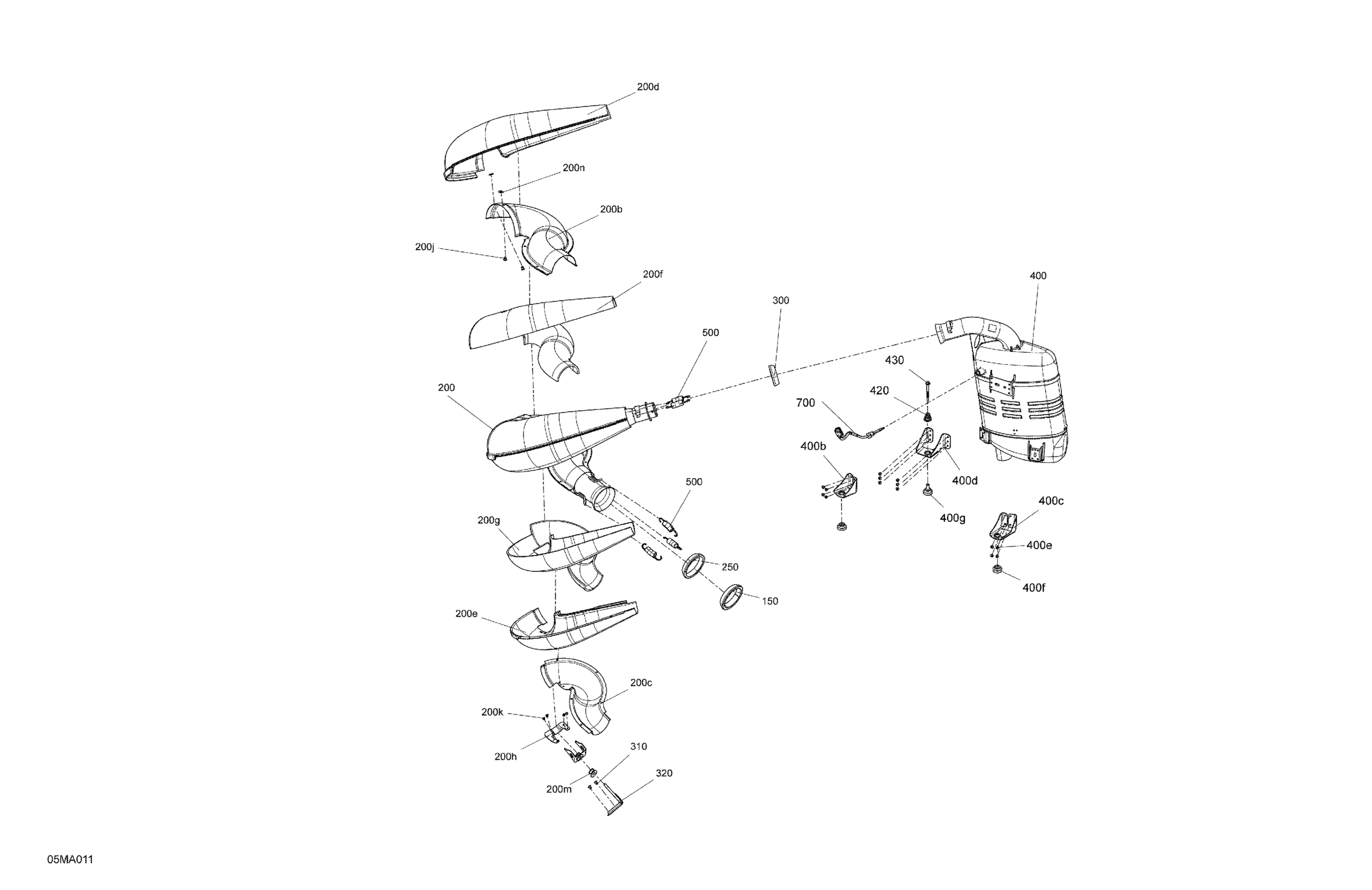

Ski-Doo SKANDIC SPORT 600 EFI - 2021 Engine - Exhaust Diagram

Description

Price

150

Exhaust Gasket

514053487

$26.49

200

Tuned Pipe | Includes 200 to 200p

514056320

$773.49

200b

Front Upper Aluminum Shell

514055222

$39.99

200c

Shell

514056282

$36.99

200d

Rear Upper Aluminum Shell

514055859

$82.99

200e

Rear Lower Aluminum Shell

514056141

$82.99

200f

Insulated Wool

514055715

$20.99

200g

Glass Wool

514056352

$7.90

200h

Plate

514055844

$5.90

200j

Avex Rivet

390909200

$0.30

200k

Avex Rivet

390909200

$0.30

200m

Rubber

514055632

$2.21

200n

Washer 3/16

514055537

$1.01

250

Seal

514055965

$19.49

300

Exhaust Gasket

514055294

$24.99

310

Hemlock Rivet, 6.5 mm

293150119

$4.29

320

Support

514055214

$11.54

400

Muffler Ass'y | Includes 400 to 400g

514055942

$847.99

400b

Front Muffler Support

514056022

$5.39

400c

Rear Muffler Support

514056038

$6.39

400d

Muffler Support

514056024

$18.49

400e

Pop Rivet 3/16"

390402200

$0.35

400f

Stopper

514055203

$20.49

400g

Stopper Ass'y

514056138

$13.22

420

Spring

514055282

$6.35

430

Hex. Flange Screw M6

250000926

$1.01

500

Spring

514055198

$6.35

700

Exhaust Temperature Sensor

514055896

$139.99
