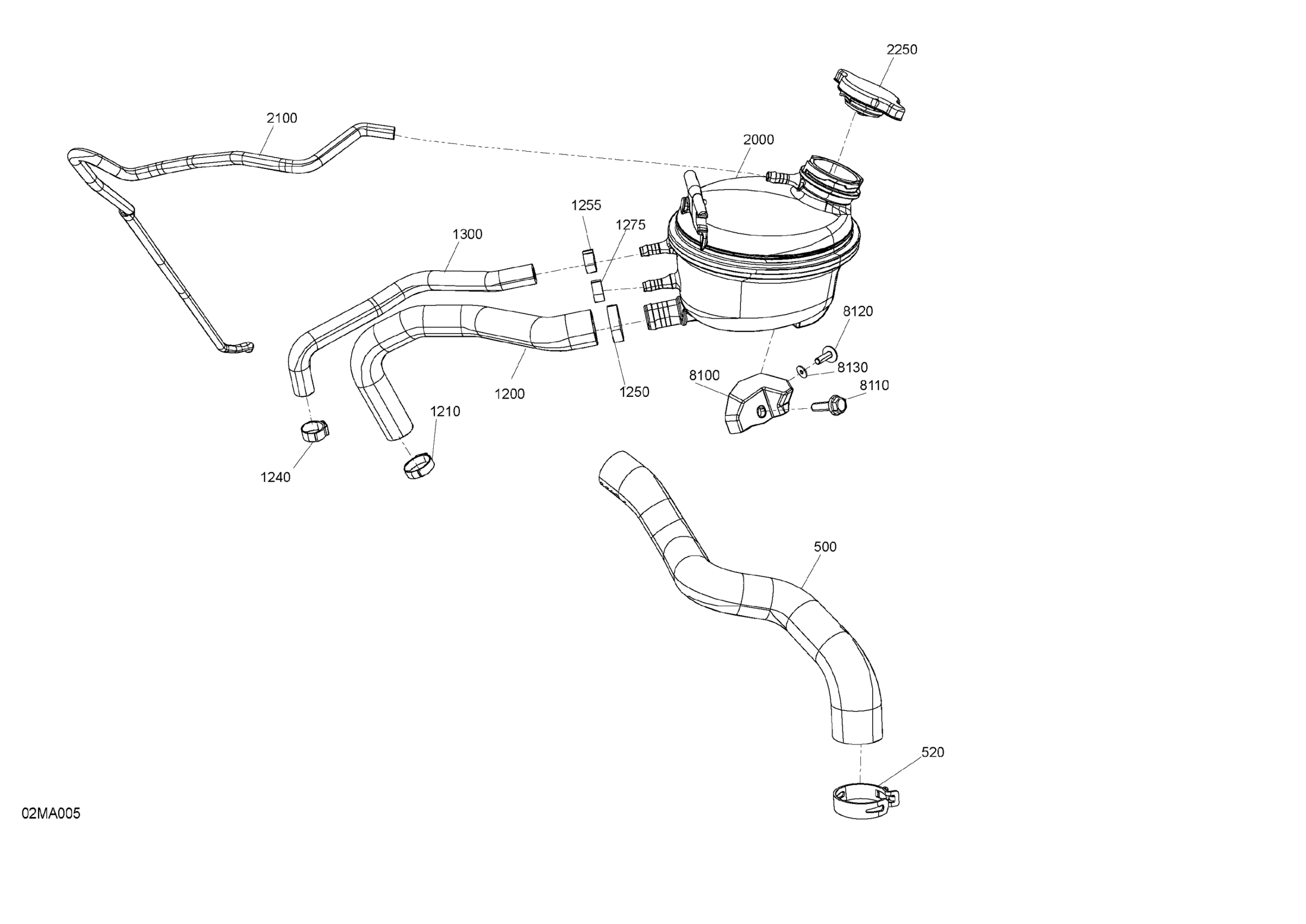

Ski-Doo SKANDIC SPORT 600 EFI - 2021 Engine - Cooling Diagram

Description

Price

500

Thermostat Hose | Includes 500 to 500a

509001413

$24.58

520

Norma Spring Clamp

293650264

$4.28

1190

Protector Tube 32 Mm 1000Mm Long

219704421

$25.35

1200

Hose

509001164

$15.35

1210

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

1240

Oetiker Clamp

293650046

$2.33

1250

Oetiker Clamp

509001041

$2.75

1255

Oetiker Clamp

293650046

$2.33

1275

Oetiker Clamp

293650046

$2.33

1300

Hose

509001457

$15.35

2000

Coolant Tank

509001260

$85.35

2100

Hose 6 Mm 15000Mm Long

219704360

$104.62

2105

Protector Tube

504153074

$12.58

2250

Radiator Pressure Cap

509000180

$11.69

8100

Support

509001259

$5.23

8110

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

8120

Torx Screw K50 X 16

250000720

$1.39

8130

Flat Washer

250200039

$0.72
