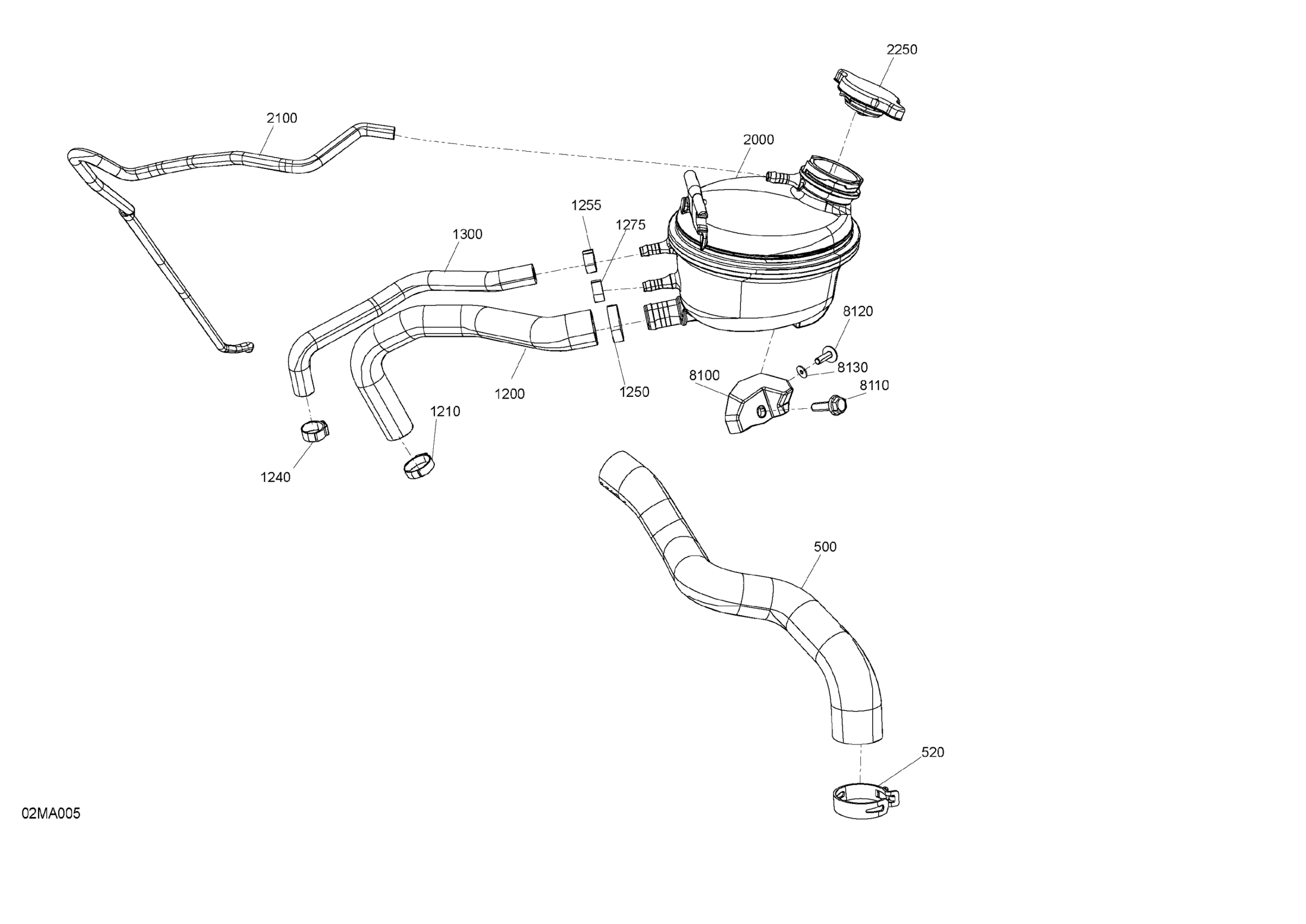

Ski-Doo 001 - SKANDIC SPORT 600 EFI - North America, 2021 02- Engine - Cooling Diagram

Description

Price

500

Thermostat Hose | Includes 500 to 500a

509001413

$24.99

520

Norma Spring Clamp

293650264

$4.44

1190

Protector Tube 32 Mm 1000Mm Long

219704421

$26.99

1200

Hose

509001164

$15.49

1210

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

1240

Oetiker Clamp

293650046

$2.89

1250

Oetiker Clamp

509001041

$2.09

1255

Oetiker Clamp

293650046

$2.89

1275

Oetiker Clamp

293650046

$2.89

1300

Hose

509001457

$15.88

2000

Coolant Tank

509001260

$90.99

2100

Hose 6 Mm 15000Mm Long

219704360

$132.49

2105

Protector Tube

504153074

$14.49

2250

Radiator Pressure Cap

509000180

$20.49

8100

Support

509001259

$6.39

8110

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

8120

Torx Screw K50 X 16

250000720

$1.69

8130

Flat Washer

250200039

$0.74
