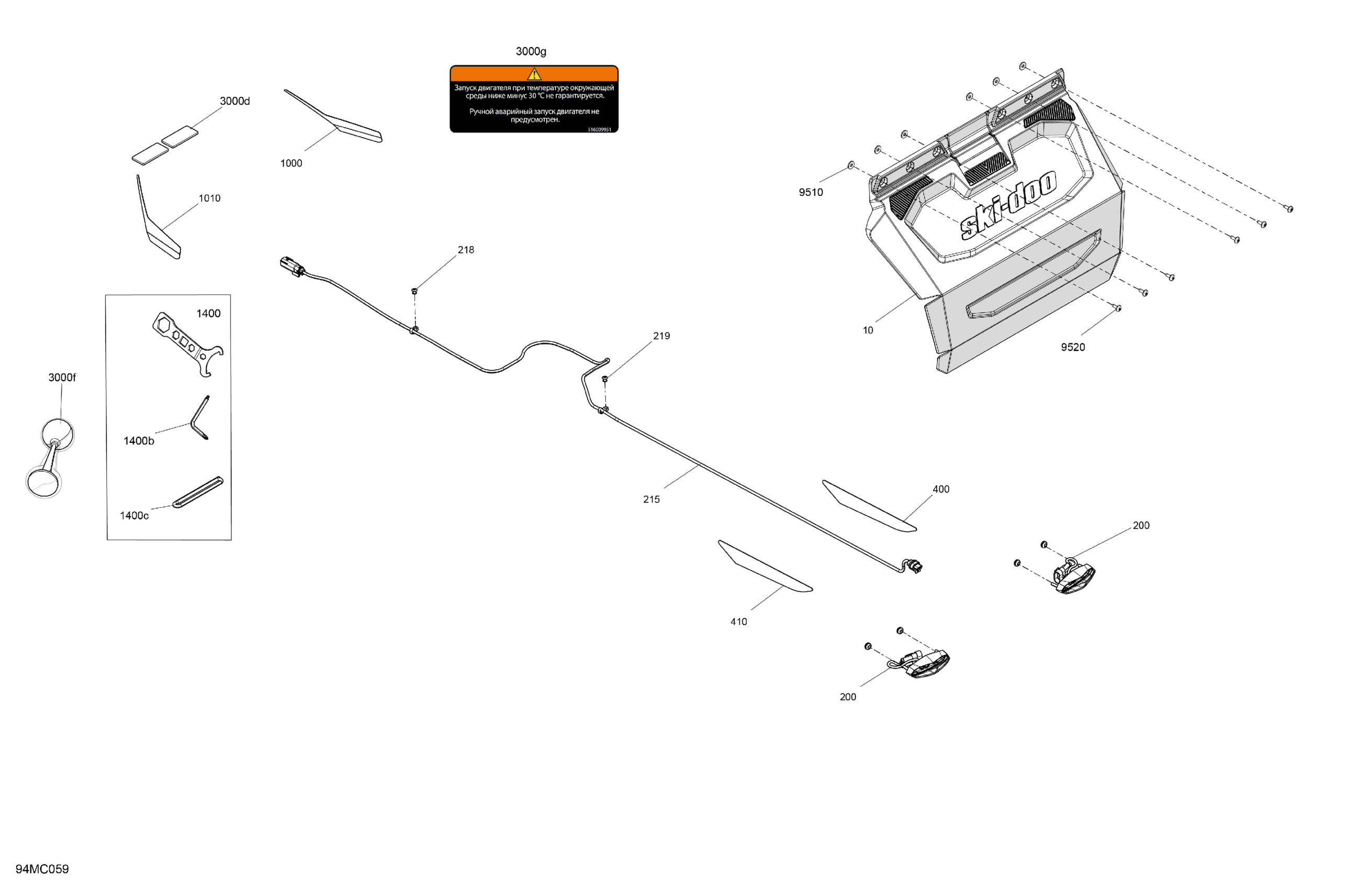

Ski-Doo 001 - SKANDIC SPORT 600 EFI - Europe, 2023 09- Miscellaneous - Utilities Diagram

Description

Price

Snow Guard

520002056

$106.99

Pop Rivet 3/16"

293150123

$4.29

200

Tail Light

520002636

$105.99

215

Wiring Harness

515178953

$26.99

218

Pop Rivet 3/16"

390402200

$0.35

219

Pop Rivet 3/16"

390402200

$0.35

400

Yellow, LH/RH Rear Reflector Kit

861805523

$26.99

410

Yellow, LH/RH Rear Reflector Kit

861805523

$26.99

1000

RH Front Reflector

520002444

$9.19

1010

LH Front Reflector

520002443

$9.19

1400

Tool Kit | Includes 1400 to 1400c

520001814

$27.99

1400b

Key

520001815

$11.79

1400c

Rope Starter

529017500

$1.17

3000c

Red, Reflector

705015551

$9.59

3000d

Amber, Reflector

520002680

$20.99

3000f

Horn

549011291

$35.99

3000g

Warning Decal, Security

516009951

Unavailable

9510

Washer M5

250200025

$0.74

9520

Forming Screw M5 x 16

250000676

$1.01
