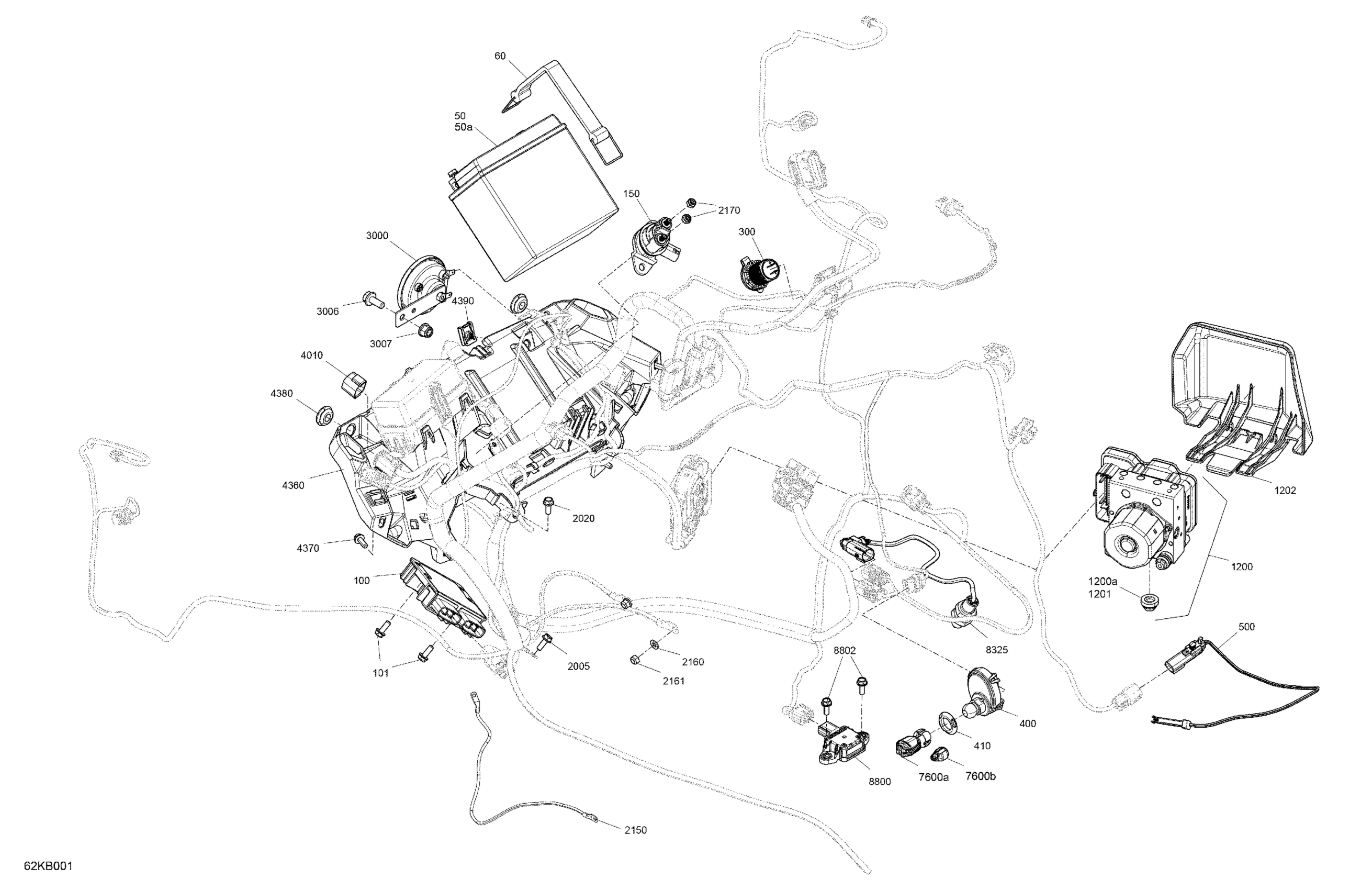

Can-Am RYKER STD 600 ACE - 2022 Electric - System Diagram

#

Description
Price

300

USB Outlet

219400510

$42.99

400

Terminal_Dess One-Wire Open

515179239

Unavailable

410

Safety Nut (DESS Switch)

278002963

$3.28

500

Passenger Footpeg Position Sensor

705601717

$29.99

7600a

Dess Key, RF Type

710006336

$63.49

7600b

Receptacle

705013894

$7.87

50

Battery 12 Amperes | Includes 50 to 50a

219800472

$144.99

50a

Battery Bolt Kit

515179142

$8.22

60

Holding Strap

293850112

$18.49

100

Voltage Regulator

710006002

$174.99

101

Hex. Flange Screw M6 X 16

210261650

$1.67

150

Starter Relay

278003012

$42.49

1200

VCM Wet Prog & Grommet Module Kit | Includes 8h to 8h2

219800502

$1,209.99

1200a

Shock Damper

710003279

$10.49

1201

Shock Damper

710003279

$10.49

1202

VCM Module Protector

710005542

$8.49

2005

Hex. Flange Screw M6 X 16

210261640

$2.11

2020

Hex. Flange Screw M6 X 16

210261640

$2.11

2150

Starter Cable

710007463

$8.19

2160

Stainless Flat Washer M6

234061600

$0.33

2161

Elastic Stop Nut M6

232561434

$1.99

2170

Hex. Elastic Stop Nut M6

232561600

$1.15

3000

Horn

710006157

$35.99

3006

Hex. Flange Screw M8 X 20

207682046

$1.90

3007

Hex. Elastic Flange Nut M8

233281416

$1.48

4010

Connector Plug

710004904

$8.79

4360

Front Electronic Component Support

710007891

$22.49

4370

Hex. Flange Screw M6 X 16

210261650

$1.67

4380

Grommet

705003264

$4.09

4390

Panel Nut M6 X 1.0

250100208

$1.46

8325

Brake Switch

710008326

$49.99

8800

Yaw Rate Sensor

710005658

$179.99

8802

Hex. Flange Screw M6 X 16

210261650

$1.67
