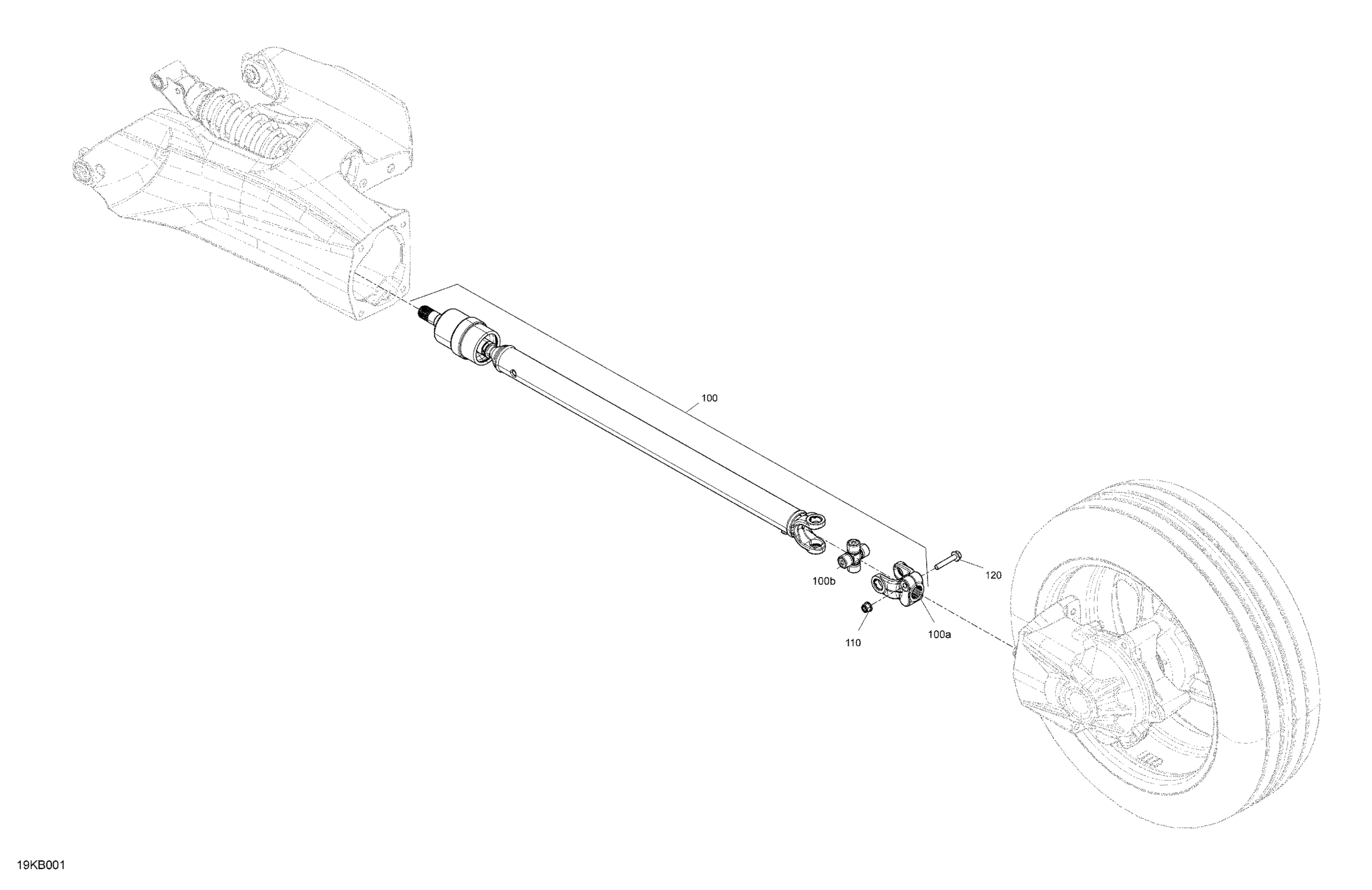

Can-Am RYKER STD 600 ACE - 2022 Drive - Rear Common Parts Diagram

#

Description
Price

100

LH Homocinetic Joint | Includes 100 to 100k

705502456

$280.49

100a

Yoke

715900914

$30.49

100b

Universal Joint Ass'y | Includes 100b to 100b1

219800424

$46.49

100b1

Circlip | Not shown

219800423

$1.37

100d

Dust cover | Not shown

219800426

$26.49

100f

Three Pin Joint | Not shown

219800433

$31.99

100g

Circlip | Not shown

219800427

$1.26

100j

Circlip Joint | Not shown

705401349

$6.50

100k

O-Ring | Not shown

219800429

$6.24

110

Hex. Elastic Flange Nut M8

233281416

$1.48

120

Hex. Flange Screw M6 X 45

250001028

$1.26
