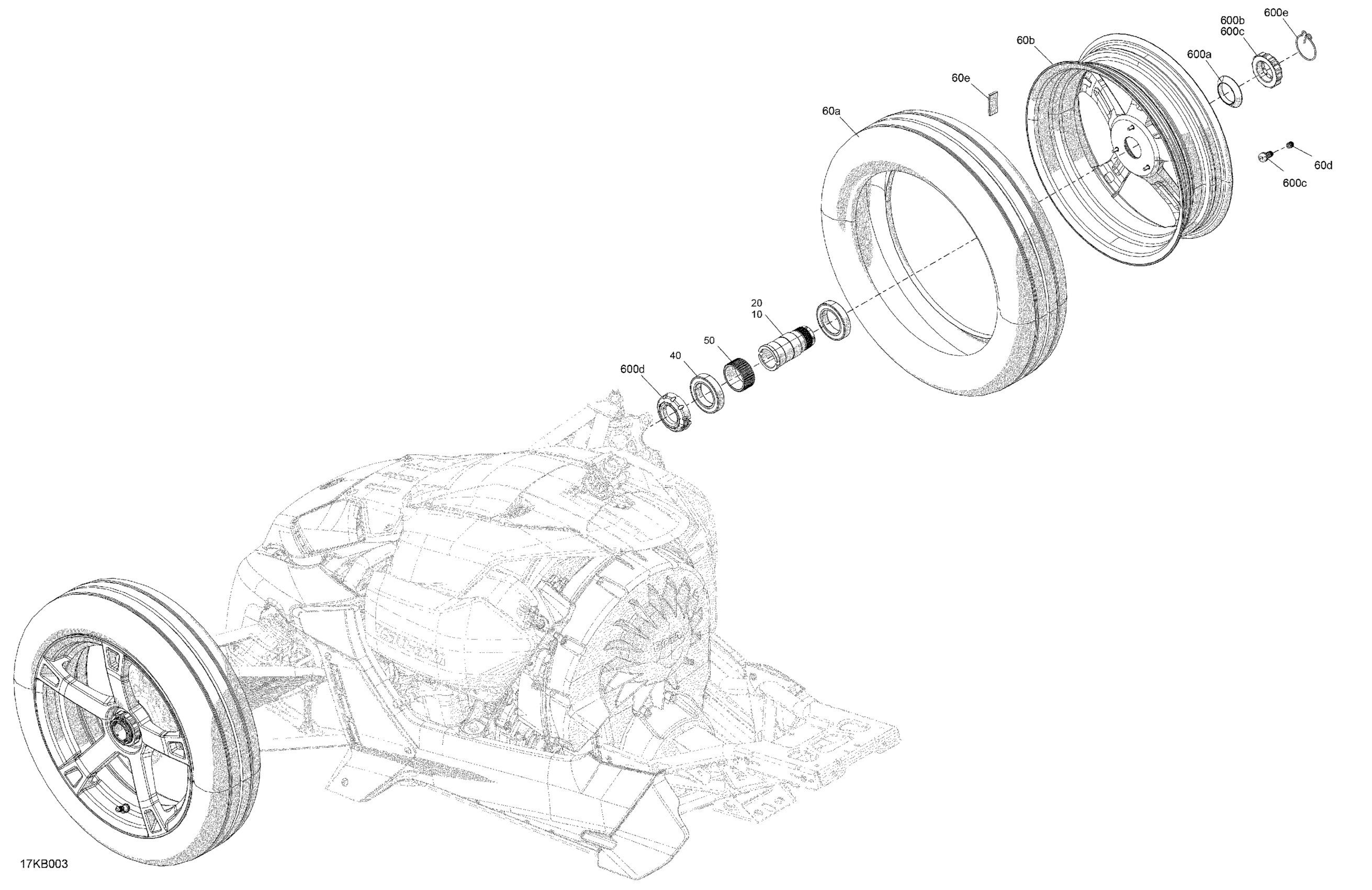

Can-Am RYKER STD 600 ACE - 2022 Drive - Front Wheels Diagram

Description

Price

LH Front Wheel Axle

706204864

$78.49

RH Front Wheel Axle

706204735

$76.99

Ball Bearing

293350059

$30.99

Tone Ring (trigger wheel) | Includes 60 to 60e

705601557

$38.99

60a

Front Tire 145/60R16

705403055

$105.99

60b

Carbon Black, 16 inch Rim

705403047

$389.99

60c

Rim Valve With Cap

705400193

$8.69

60d

Valve Cap

293000110

$1.59

60e

Balancing Weight

705503182

$4.69

600a

Conical Support Ring

705401983

$17.59

600b

RH Specialized Nut M45 LH Thread

705403012

$54.99

600c

Wheel Nut M45

705402730

$31.99

600d

Hub Cap

705402677

$6.39

600e

External Retaining Ring

293370168

$2.32
