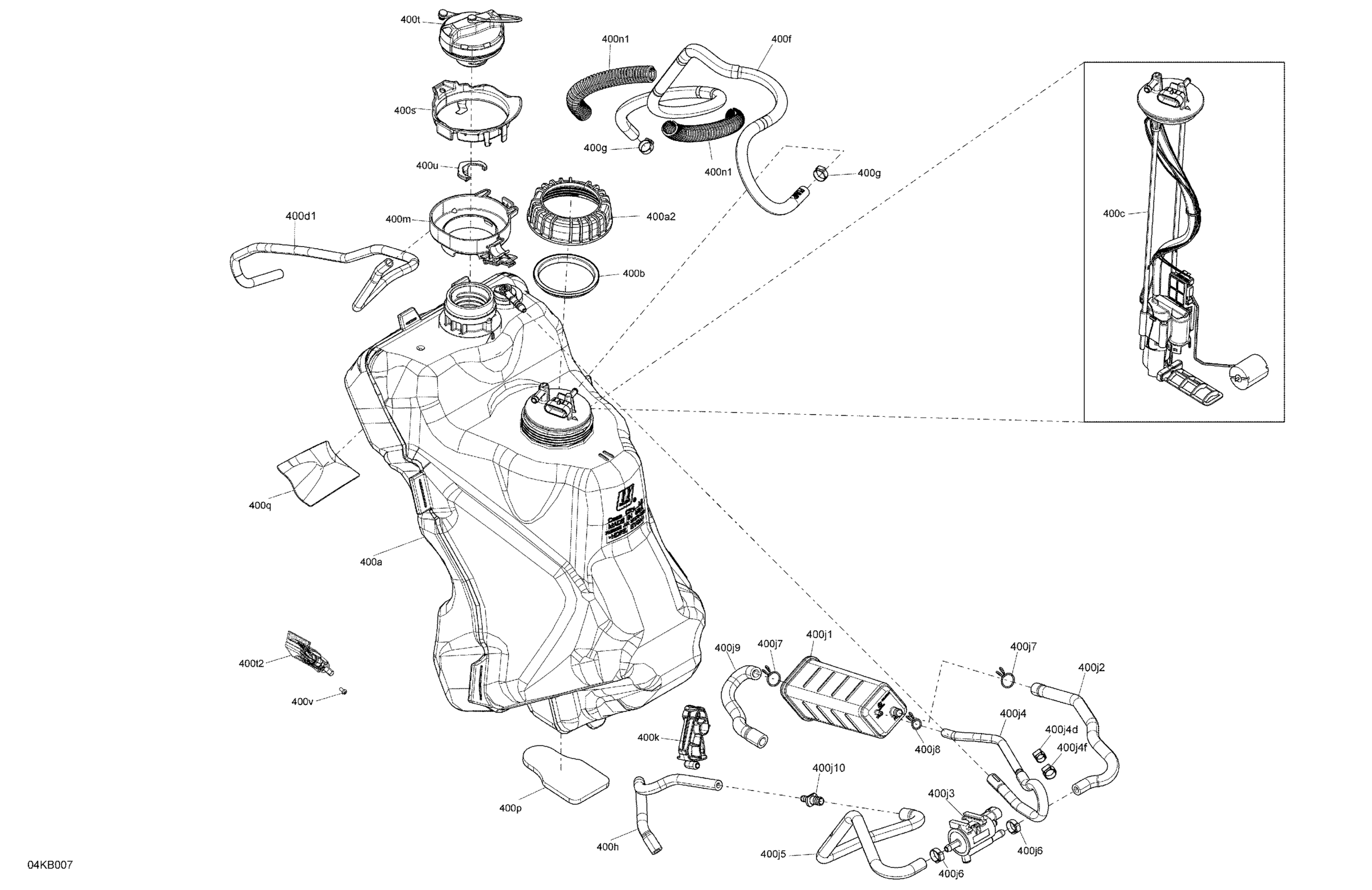

Can-Am RYKER STD 600 ACE - 2022 Engine - Fuel Diagram

#

Description
Price

400a

Fuel Tank Ass'y | Includes 400a to 400a2

709001172

$409.99

400a2

Fuel Pump Module Nut

709000328

$13.75

400b

Seal

709000208

$14.99

400c

Fuel Pump Module 2021-2026 | Includes 400c to 400c1

709001261

$340.99

400c1

Prefilter Fuel Pump Kit 125mm Long | Not shown

715900677

$79.49

400d1

Polyurethane Hose 1000Mm Long

219704391

$5.47

400f

Hose

709001138

$46.49

400g

Crimp Clamp, 15.3-706R

293650047

$3.29

400h

Hose Fuel Vapor

709001053

$33.99

400j1

Vapor Canister

709001217

$97.49

400j2

Hose Fuel Vapor

709000861

$33.99

400j3

Bleed Selenoid Valve

709000991

$45.99

400j4

Hose Fuel Vapor Ass'y | Includes 400j4 to 400j4f

709001006

$40.99

400j4d

Oetiker Clamp | Europe

293650044

$5.09

400j4f

Oetiker Gear Clamp

293650025

$3.09

400j5

Hose Fuel Vapor

709000863

$35.99

400j6

Crimp Clamp, 15.3-706R

293650047

$3.29

400j7

Hose Clamp 15.5mm-17.5mm (Spring Type)

293650294

$13.99

400j8

Hose Clamp 9.8mm-11.5mm (Spring Type)

293650295

$13.99

400j9

Hose Fuel Vapor

709000959

$15.99

400j10

Flow Reducer

709000705

$6.09

400k

Hose Holder

709001051

$2.99

400m

Anchorage Support

709001275

$15.49

400n1

Tubing 16 Mm 1000Mm Long

219704408

$7.49

400p

Rubber Pad

709001087

$14.23

400q

Tank Protector

709001115

$4.39

400s

Trim

709001202

$15.49

400t

Upper Latch Kit | Includes 400t to 400t2

219401147

$84.99

400t2

Padlock with Key

707000666

$25.99

400u

Deflector

709001263

$15.99

400v

Socket Head Screw M5 X 10

205951046

$2.43
