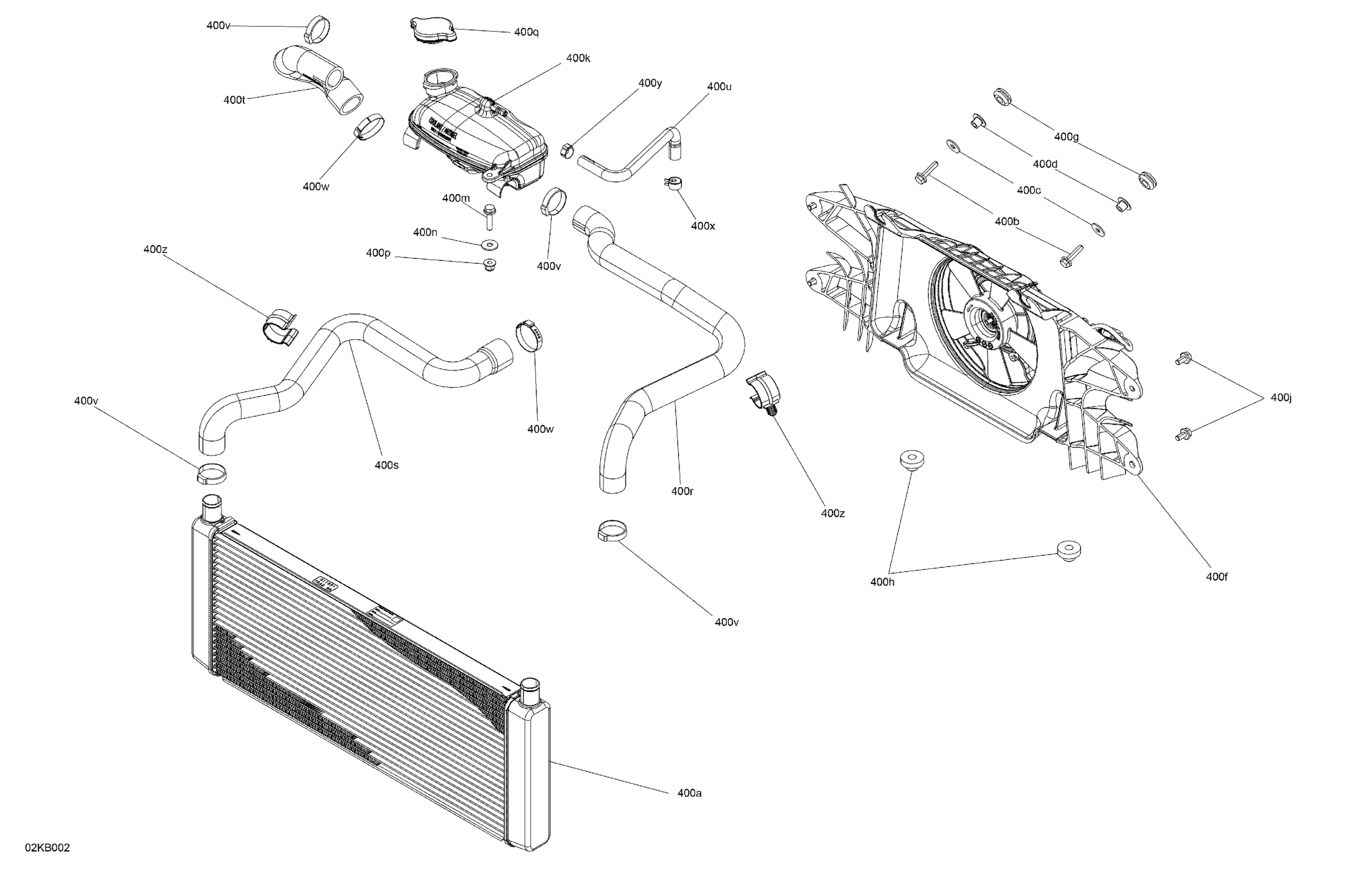

Can-Am RYKER STD 600 ACE - 2022 Engine - Cooling Diagram

Description

Price

400a

Radiator

709200724

$350.00

400b

Hex. Flange Screw M6 X 25

207662534

$1.74

400c

Flat Washer

250200082

$0.35

400d

Bushing

709001288

$7.71

400f

Fan Ass'y With Shroud

709200719

$220.00

400g

Grommet

709000582

$4.38

400h

Grommet

709200948

$7.09

400j

Hex. Flange Screw M6 X 12

207661244

$1.70

400k

Coolant Tank

709200963

$44.00

400m

Hex. Flange Screw M6 X 25

207662534

$1.74

400n

Flat Washer

250200082

$0.35

400p

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

400q

Radiator Pressure Cap

709200207

$18.82

400r

Formed Cooling Hose

709200682

$32.00

400s

Formed Cooling Hose

709200689

$32.00

400t

Formed Cooling Hose

709200690

$16.00

400u

Formed Cooling Hose

709200691

$12.00

400v

Oetiker Clamp

293650141

$4.28

400w

Oetiker Gear Clamp, 36.5-706R

509000529

Unavailable

400x

Universal Spring Clamp

513033029

$5.11

400y

Oetiker Clamp

293650046

$2.33

400z

Retainer

275500526

$3.73
