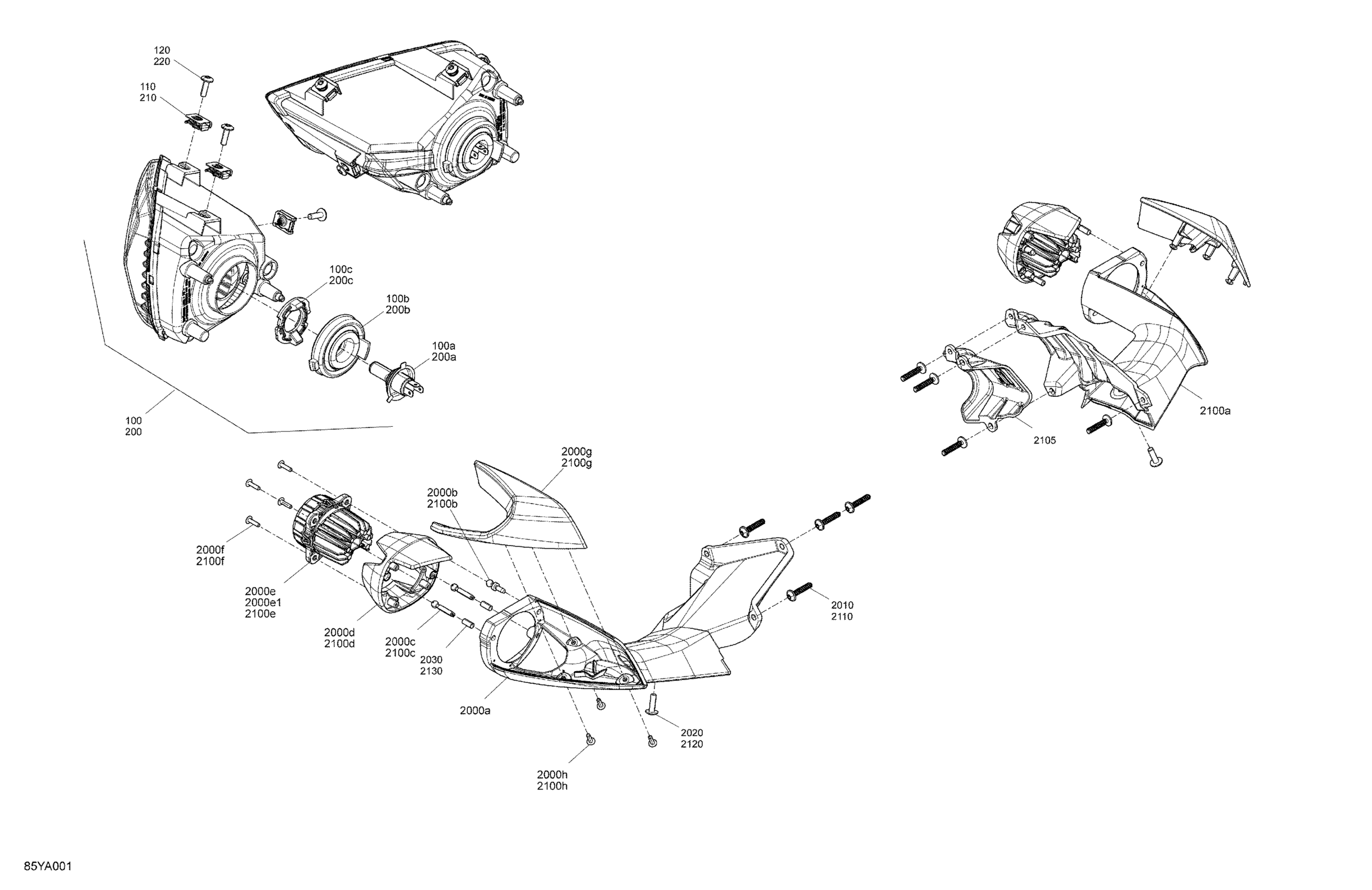

Can-Am RYKER STD 600 ACE 2021 Electric - Headlights Diagram

#

Description
Price

100

LH Headlight | Includes 300a to 300a3

710008173

$155.00

100a

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

100b

Rubber Cap Protector

219800457

$4.00

100c

Bulb Support

219800458

$2.00

110

Panel Nut M6 X 1.0

250100208

$1.07

120

Torx Screw M6 X 20

250000722

$1.34

200

RH Headlamp | Incl 200>200c

710005637

$155.00

200a

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

200b

Rubber Cap Protector

219800457

$4.00

200c

Bulb Support

219800458

$2.00

210

Panel Nut M6 X 1.0

250100208

$1.07

220

Torx Screw M6 X 20

250000722

$1.34

2000a

LH Headlamp Support | Includes 300x1 to 300x1a

705012655

$73.00

2000b

Ball Joint

705016154

$6.00

2000c

Ball Joint

705016155

$14.00

2000d

LH Mobile Support

705016397

$6.00

2000e

Low Beam Ass'y

710006007

$350.00

2000e1

Halogen Bulb

415129249

$39.97

2000f

Torx-Truss Pt K40 X 16

250000759

$1.74

2000g

LH Cover

705013632

$21.00

2000h

Torx-Truss Pt K40 X 16

250000759

$1.74

2010

Screw PT K60 X 30

250000949

$1.74

2020

Torx Screw M6 X 20

250000722

$1.34

2030

Cap

515176370

$4.43

2100a

RH Headlamp Support | Includes 300ab1 to 300ab1a

705012656

$73.00

2100b

Ball Joint

705016154

$6.00

2100c

Ball Joint

705016155

$14.00

2100d

RH Mobile Support

705016398

$6.00

2100e

Low Beam Ass'y

710006007

$350.00

2100f

Torx-Truss Pt K40 X 16

250000759

$1.74

2100g

RH Cover

705013633

$21.00

2100h

Torx-Truss Pt K40 X 16

250000759

$1.74

2105

Canister Holder

709001060

$5.00

2110

Screw PT K60 X 30

250000949

$1.74

2120

Torx Screw M6 X 20

250000722

$1.34

2130

Cap

515176370

$4.43
