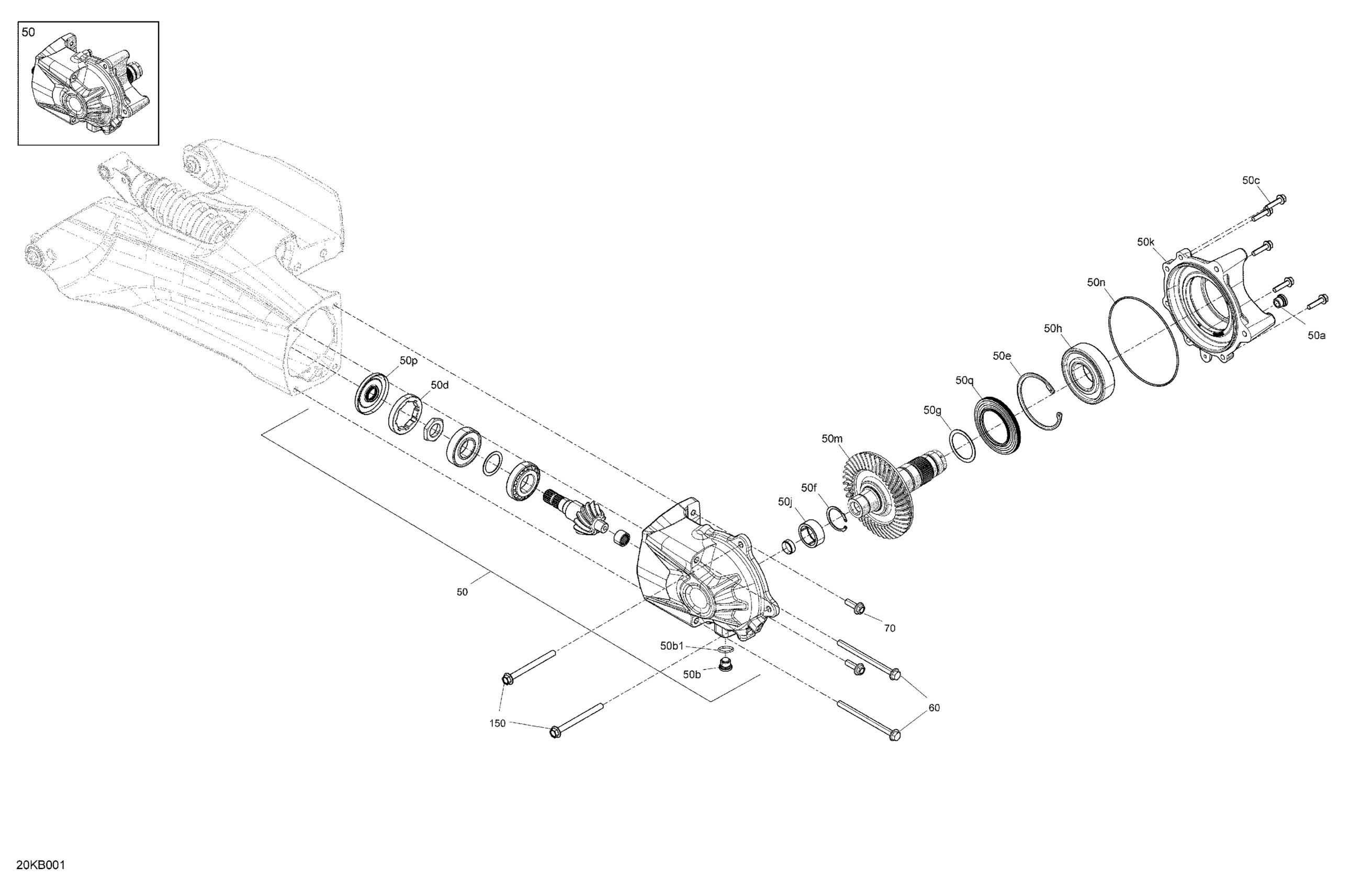

Can-Am RYKER STD 600 ACE 2021 Drive - Final Drive Unit Diagram

Description

Price

Final Drive Unit | Includes 50 to 50r

705503165

$1,420.49

50a

Fill Level Plug

705501889

$20.49

50b

Magnetic Plug Drain | Includes 50b to 50b1

705502851

$19.99

50b1

O-Ring

219800486

$9.21

50c

Hex. Flange Screw M8 X 1.25 x 35

705502849

$14.99

50d

Not Available As Spare Part - Friction Washer

Unavailable

50e

Retaining Ring OD 119mm

705502840

$20.99

50f

Retaining Ring OD 50.5mm

705502841

$20.99

50g

Shim 2.047po X 2.5po X 0.60po

705502843

$92.99

50h

Ball Bearing

705502845

$103.99

50j

Needle Bearing

705502852

$68.99

50k

Rear Cover Machined

705502508

$232.99

50m

Ring Gear FInal Drive Ass'y

705503168

Unavailable

50n

Oil Seal iDIA 6.737 oDIA 6.943

705501881

$9.27

50p

Oil Seal, Triple Lip 25 X 79 X 8

705401827

$19.99

50q

Oil Seal, Single Lip 68 X 110 X 8

705502847

$30.49

50r

O-Ring

219800486

$9.21

Hex. Flange Screw M10 X 140

230604056

$12.65

Screw-Hex.Flange M10 X 35 S.Grip

250001080

$2.11

150

Hex. Flange Screw M10 X 115 Scotch G.

250001127

$7.86
