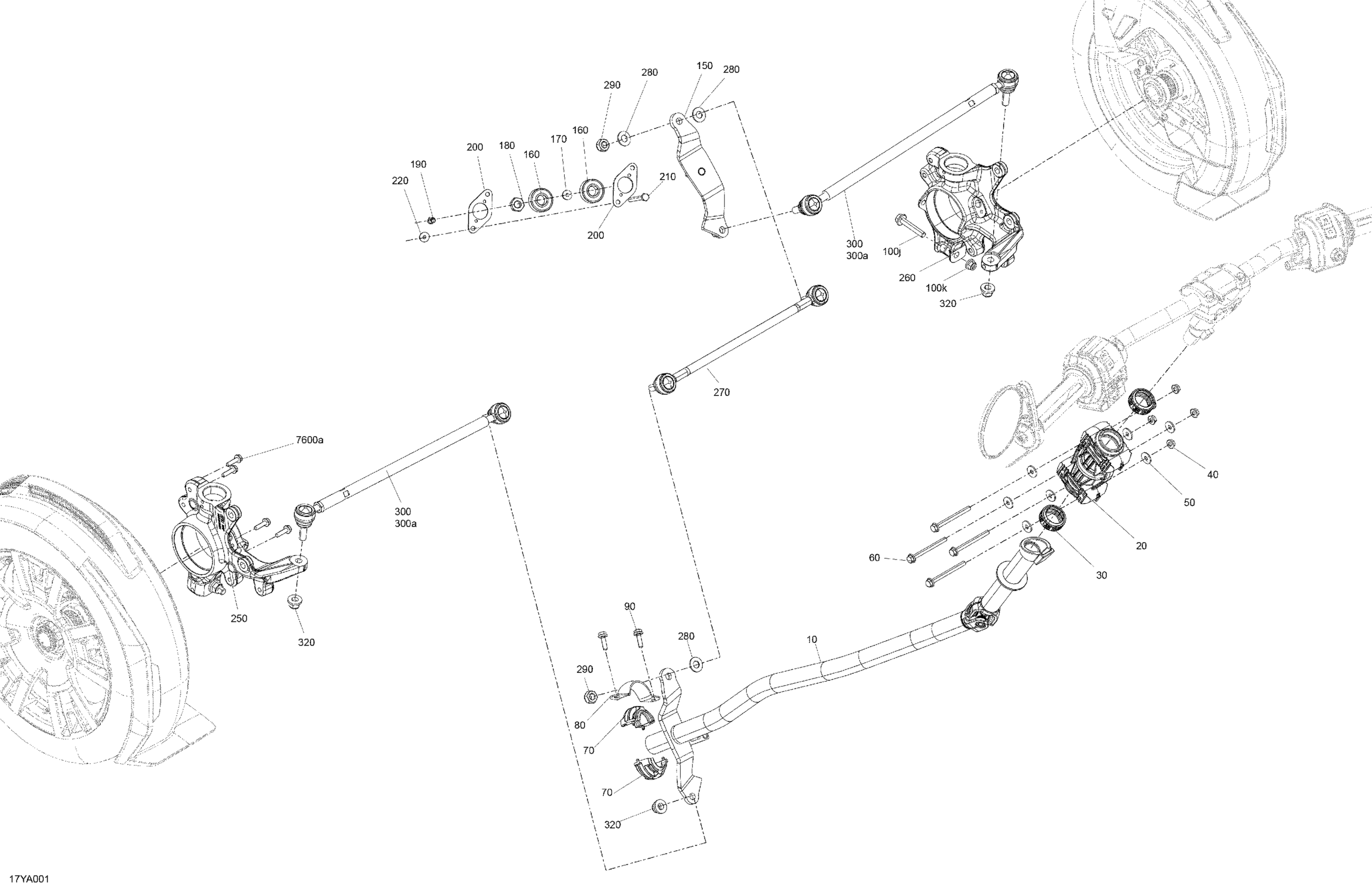

Can-Am On-Road 001 - RYKER STD 600 ACE 2021 03- Mechanic - Steering Column Diagram

#

Description
Price

10

Steering Shaft | Included 10 to 10a

709401876

$199.99

20

Steering Bushing

709403149

$9.75

30

Upper Anti-Vibration Gasket

709402094

$5.39

40

Hex. Flange Nut M6

233161414

$2.11

50

Flat washer M6

250200164

$1.01

60

Hex. Flange Screw M6x70, Scotch Grip

207567044

$2.11

70

Half Bushing

709402919

$4.12

80

RH Lower Column Attachment

709401969

$4.59

90

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

100j

Hex. Flange Screw M10 X 55

207605554

$7.62

100k

Flange Elastic Nut M10

233201466

$3.17

150

Pitman Arm Kit | Included 150 to 150a

219800520

$33.99

160

Bearing

709402450

$6.88

170

Spacer

709401976

$4.39

180

Hex. Jam Nut M12

250100216

$2.40

190

Sensor Sleave

709401527

$3.09

200

Sensor Support

709402096

$3.89

210

Hex. Screw M6 X 65

207066544

$0.46

220

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

250

LH Knuckle

709401922

$179.99

260

RH Knuckle

709401923

$179.99

270

Tie Rod Ass'y

709401954

$116.49

280

Washer

506152582

$4.55

290

Elastic Flange Nut M10

232501416

$1.48

300

Tie Rod Ass'y | Included 300 to 300a

709401953

$116.49

300a

RH Threaded Hex. Jam Nut M10

732610010

$0.74

320

Hex. Flange Elastic Nut M10

250100165

$0.85

7600a

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69
