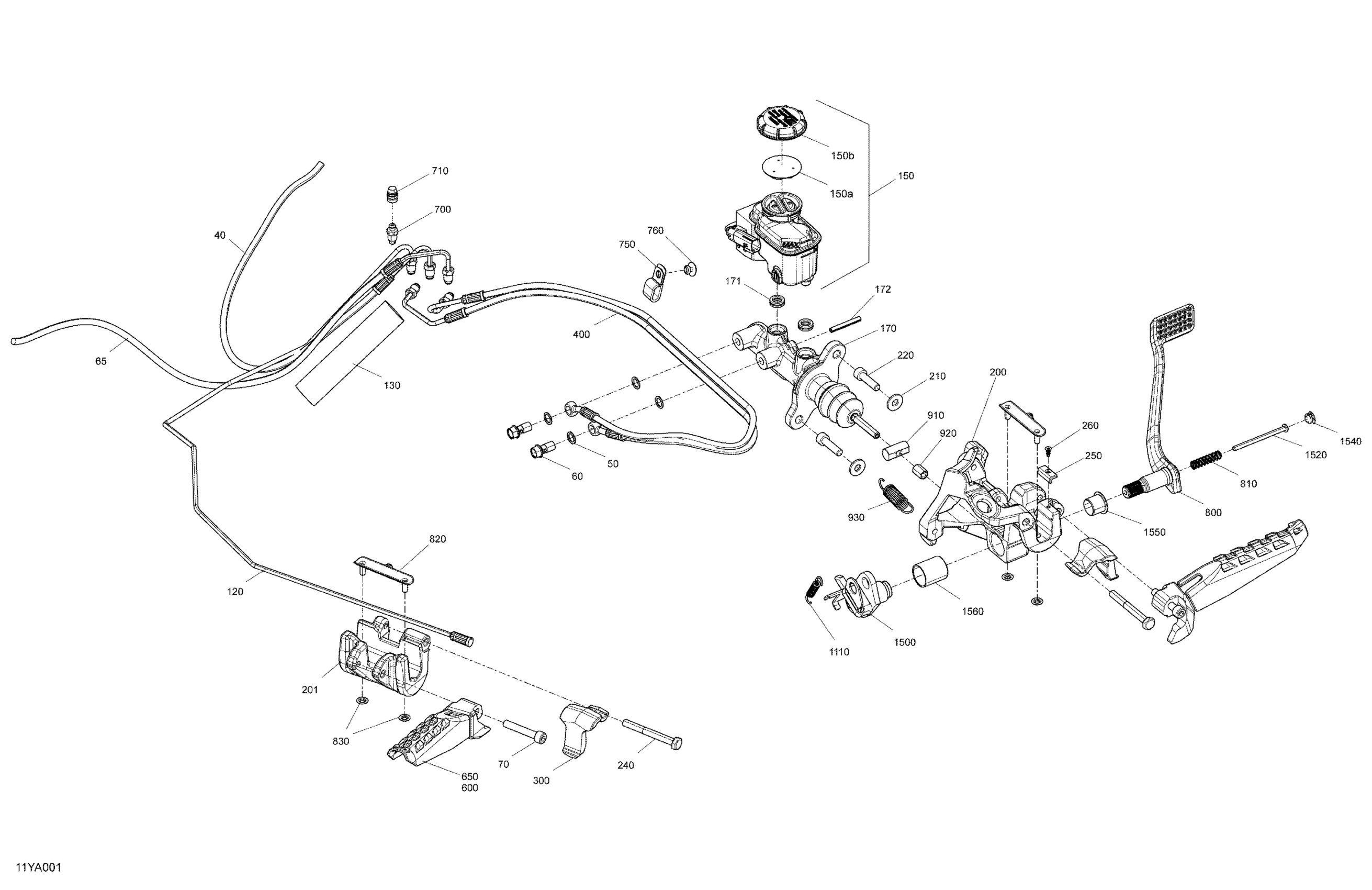

Can-Am RYKER STD 600 ACE 2021 Mechanic - Brake System Diagram

#

Description
Price

40

RH Front Caliper Hose

705601559

$78.49

50

Copper Washer

705601628

$4.44

60

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

65

LH Front Caliper Hose

705601560

$78.49

70

Socket Head Screw M8 x 45, Scotch Grip

250000988

$1.37

120

Rear Caliper Hose

705601561

$78.49

130

Tubing 25 MM 1000MM Long

219704402

$15.99

150

Brake Fluid Reservoir Ass'y | Included 400j to 400j3

705601918

$70.99

150a

Rubber Diaphragm (seal)

705601610

$17.59

150b

Brake Fluid Cap | Included 400j3 to 400j3b

705601943

$2.00

170

Master Cylinder Tandem Brake

705601580

$184.99

171

Seal Master Cylinder

705601715

$0.95

172

Spring Pin 5.3MM x 40MM

705601716

$1.16

200

RH Caliper Slider

705013422

$70.99

201

LH Caliper Slider

705013423

$70.99

210

Washer

506151245

$0.93

220

Screw-Socket Cap S.Grip M8 X 30

250001117

$1.90

240

Hex. Screw M8 X 70

207087044

$2.19

250

RH Sliding Block for Caliper Slider

705013976

$0.57

260

Torx Cutting Screw, M4 X 10

250000453

$3.89

300

Slider Clamp

705011404

$40.99

400

Hose Master Cylinder

705601562

$99.49

600

Deep Black, RH Footrest

705013464

$38.99

650

Deep Black, LH Footrest

705013465

$38.99

700

Bleeder Screw

705600502

$11.11

710

Bleeder Bolt Cap

705601190

$4.44

750

Open Clamp

515175507

$1.89

760

Pop Rivet 3/16"

390406500

$0.88

800

Deep Black, Pedal Brake

705601741

$98.99

810

Brake Pedal Spring

705601583

$2.09

820

Pad Footrest Ass'y

705013975

$4.09

830

Pressure Nut

250100163

$0.98

910

Socket Push Rod

705601585

$14.99

920

Jam Nut M8

705601586

$7.30

930

Spring

705006533

$18.49

1110

Brake Switch Spring

705601584

$3.17

1500

Rocker Ass'y

705601600

$35.99

1520

Hex. Screw M5 X 70

205457044

$4.21

1540

Black, Dart 10 mm

293730060

$4.55

1550

Plain Bearing DIA. 18 MM, Plastic

709402254

$2.11

1560

Plain Bearing DIA. 24 MM, Plastic

709402253

$5.71
