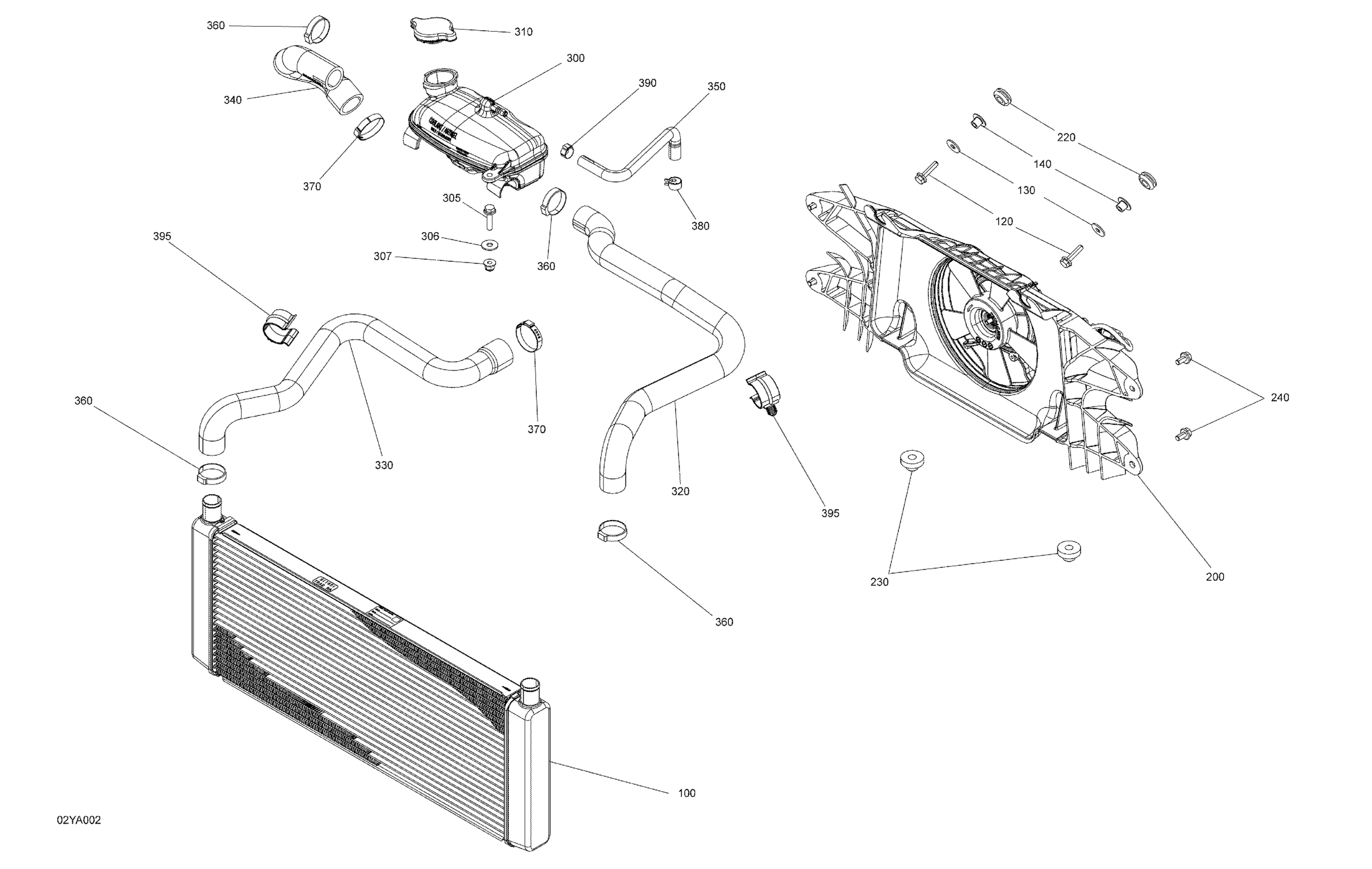

Can-Am RYKER STD 600 ACE 2021 Engine - Cooling Diagram

Description

Price

100

Radiator

709200724

$350.00

120

Hex. Flange Screw M6 X 25

207662534

$1.74

130

Flat Washer

250200082

$0.35

140

Bushing

709001288

$7.71

200

Fan Ass'y With Shroud

709200719

$220.00

220

Grommet

709000582

$4.38

230

Grommet

709200948

$7.09

240

Hex. Flange Screw M6 X 12

207661244

$1.70

300

Coolant Tank

709200963

$44.00

305

Hex. Flange Screw M6 X 25

207662534

$1.74

306

Flat Washer

250200082

$0.35

307

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

310

Radiator Pressure Cap

709200207

$18.82

320

Formed Cooling Hose

709200682

$32.00

330

Formed Cooling Hose

709200689

$32.00

340

Formed Cooling Hose

709200690

$16.00

350

Formed Cooling Hose

709200691

$12.00

360

Oetiker Clamp

293650141

$4.28

370

Oetiker Gear Clamp, 36.5-706R

509000529

Unavailable

380

Universal Spring Clamp

513033029

$5.11

390

Oetiker Clamp

293650046

$2.33

395

Retainer

275500526

$3.73
