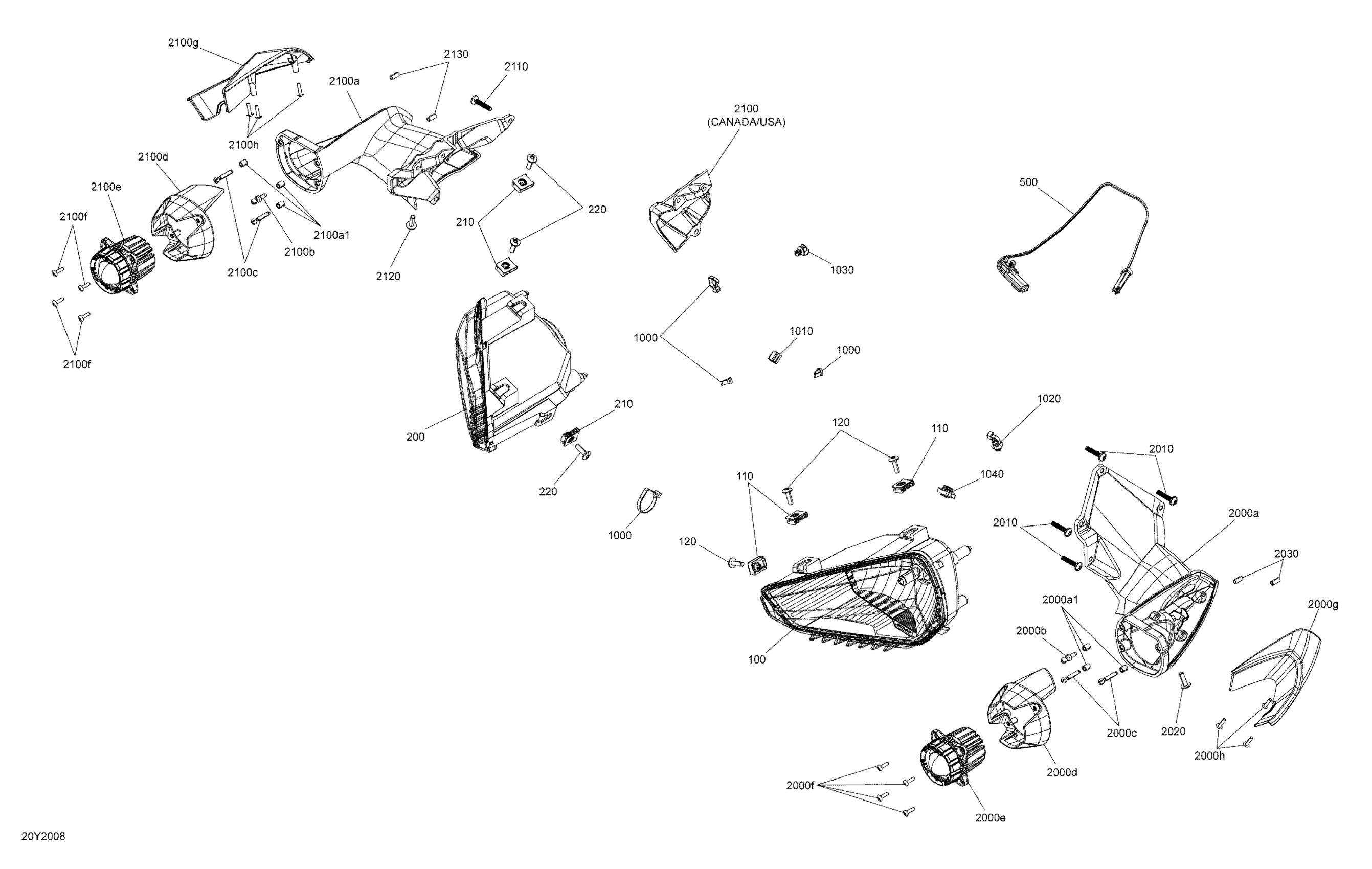

Can-Am RYKER STD 600 ACE, 2020 Electrical System Headlights and DESS Switch Diagram

LH Headlight | Includes 300a to 300a3

710008173

$154.99

Panel Nut M6 X 1.0

250100208

$1.46

Torx Screw M6 X 20

250000722

$1.68

RH Headlamp | Incl 200>200c

710005637

$154.99

Panel Nut M6 X 1.0

250100208

$1.46

Torx Screw M6 X 20

250000722

$1.68

Passenger Footpeg Position Sensor

705601717

$29.99

Tie Wrap 368 mm

293750008

$1.04

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

Christmas Tree Tie-Rap

710005237

$7.16

Dart Tie Rap 200MM

710003168

$7.09

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

Not Available As Spare Part - Friction Washer

Unavailable

LH Headlamp Support | Includes 300x1 to 300x1a

705012655

$72.99

Not Available As Spare Part - Friction Washer

Unavailable

Ball Joint

705016154

$6.29

Adjustment Ball Joint | International

705014431

$15.49

LH Mobile Support

705016397

$6.49

Low Beam Ass'y

710006007

$349.99

Torx-Truss Pt K40 X 16

250000759

$2.11

LH Cover

705013632

$20.99

Torx-Truss Pt K40 X 16

250000759

$2.11

Screw PT K60 X 30

250000949

$2.11

Torx Screw M6 X 20

250000722

$1.68

Cap

515176370

$4.69

Not Available As Spare Part - Friction Washer

Unavailable

RH Headlamp Support | Includes 300ab1 to 300ab1a

705012656

$72.99

Not Available As Spare Part - Friction Washer

Unavailable

Ball Joint

705016154

$6.29

Adjustment Ball Joint | International

705014431

$15.49

RH Mobile Support

705016398

$6.49

Low Beam Ass'y

710006007

$349.99

Torx-Truss Pt K40 X 16

250000759

$2.11

RH Cover

705013633

$20.99

Torx-Truss Pt K40 X 16

250000759

$2.11

Canister Holder

709001060

$4.59

Screw PT K60 X 30

250000949

$2.11

Screw PT K60 X 30

250000949

$2.11

Torx Screw M6 X 20

250000722

$1.68

Cap

515176370

$4.69
