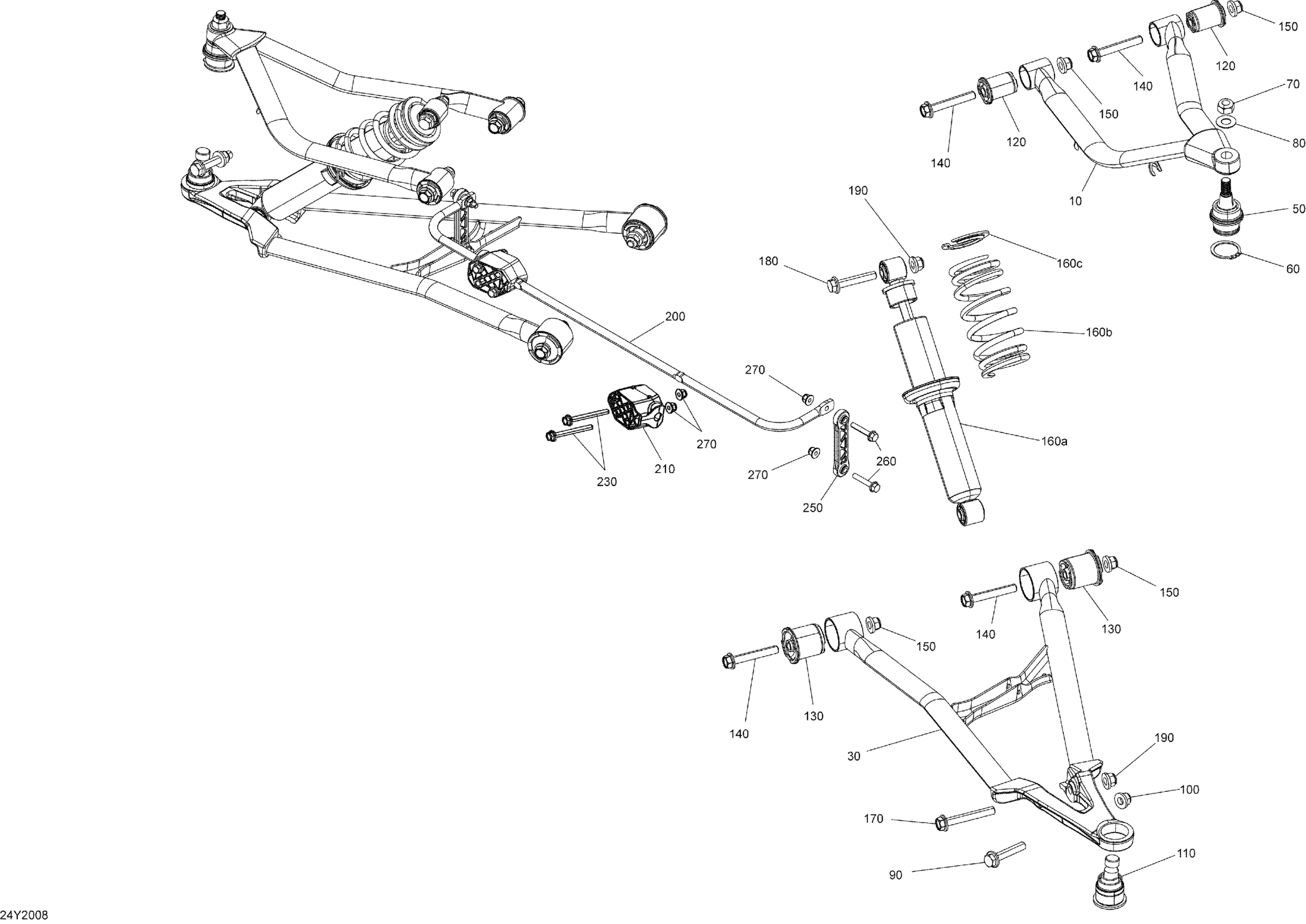

Can-Am RYKER STD 600 ACE, 2020 Suspension, Front - A Arms - Shocks Diagram

Description

Price

LH Upper Arm

706202644

$159.00

RH Upper Arm

706202645

$159.00

LH Lower Suspension Arm

706204700

$159.00

RH Lower Suspension Arm

706204701

$159.00

Ball Joint

706203147

$54.00

Circlip

293370035

$2.55

Hex Elastic Nut M12 X 1.25

232521464

$1.74

Hardened Washer

706200281

$2.34

Hex. Flange Screw M10 X 55

207605554

$8.00

100

Flange Elastic Nut M10

233201466

$2.63

110

Ball Joint

706202508

$42.00

120

Upper Suspension Arm Bushing

706202549

$14.00

130

Lower Suspension Arm Bushing

706203143

$14.00

140

Hex. Flange Screw M10 X 65

207606556

$4.00

150

Flange Elastic Nut M10

233201466

$2.63

160a

Shock

706002379

$137.00

160b

Carbon Black, Compression Spring

706206078

Unavailable

160c

Spring Stopper

706203670

$3.00

170

Hex. Flange Screw M10 X 70

207607056

$3.38

180

Hex. Flange Screw M10 X 55

207605554

$8.00

190

Flange Elastic Nut M10

233201466

$2.63

200

Sway Bar

706202710

$28.00

210

Bushing

706204465

$9.00

230

Hex. Flange Screw M6 X 60

207666044

$1.22

250

Sway Bar Double Joint Link

505072204

$19.20

260

Hex. Flange Screw M6 X 35

207663554

$1.74

270

Hex. Flange Elastic Nut M6

233261494

$1.26
