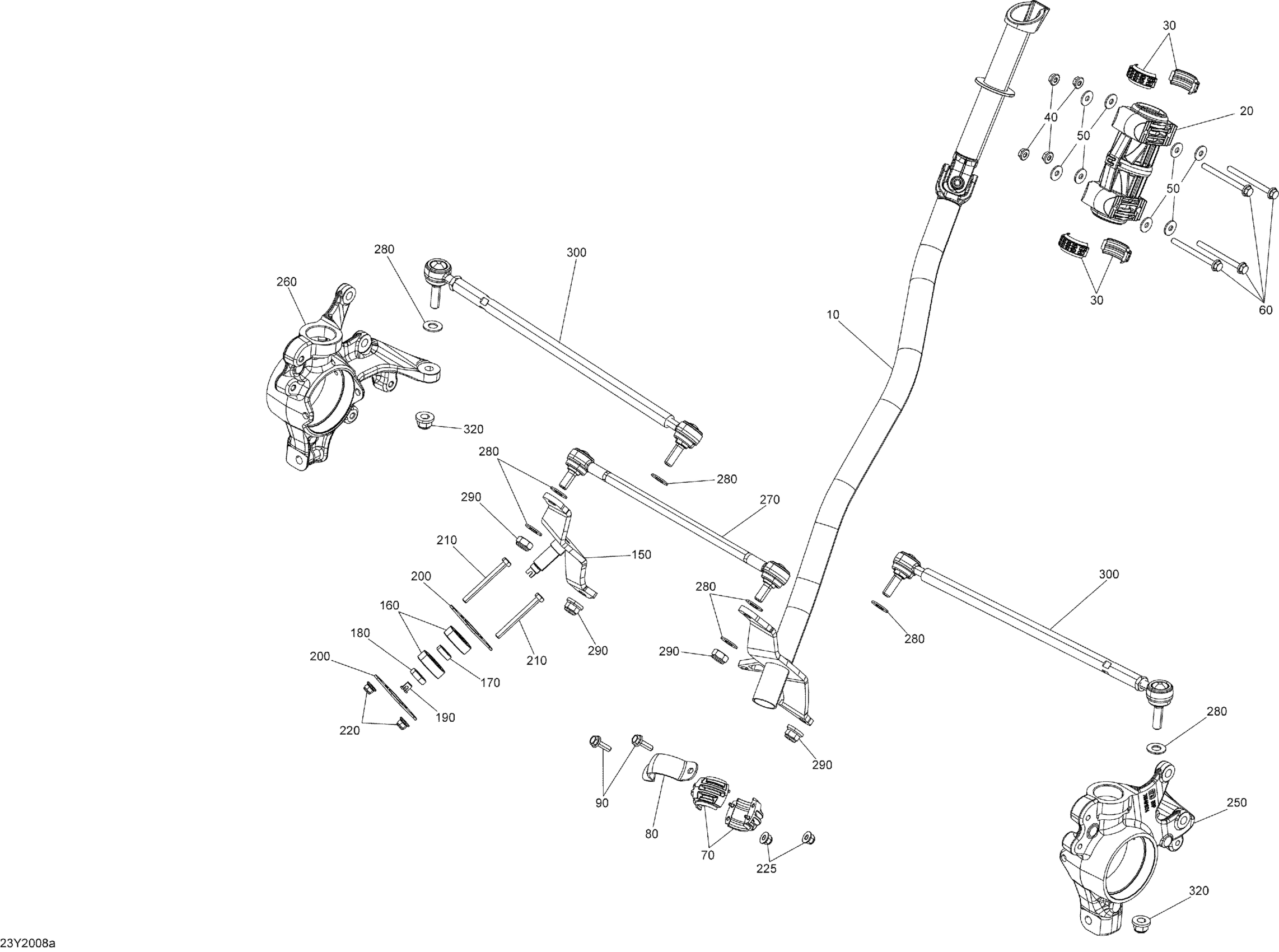

Can-Am RYKER STD 600 ACE, 2020 Steering Column - Tie Rods - Knuckles Diagram

Description

Price

Steering Shaft | Included 10 to 10a

709401876

$200.00

Steering Bushing

709403149

$10.00

Upper Anti-Vibration Gasket

709402094

$5.00

Hex. Flange Nut M6

233161414

$1.74

Flat washer M6

250200164

$0.83

Hex. Flange Screw M6x70, Scotch Grip

207567044

$1.74

Half Bushing

709402919

$4.00

RH Lower Column Attachment

709401969

$5.00

Hex. Flange Screw M6 X 20

207662054

$0.83

150

Pitman Arm Kit | Included 150 to 150a

219800520

$34.00

160

Bearing

709402450

$7.00

170

Spacer

709401976

$4.00

180

Hex. Jam Nut M12

250100216

$2.00

190

Sensor Sleave

709401527

$3.00

200

Sensor Support

709402096

$4.00

210

Hex. Screw M6 X 65

207066544

$0.46

220

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

225

Elastic Flange Nut M6 X 1.0

233261416

$1.74

250

LH Knuckle

709401922

$180.00

260

RH Knuckle

709401923

$180.00

270

Tie Rod Ass'y

709401954

$116.00

280

Washer

506152582

$4.42

290

Elastic Flange Nut M10

232501416

$1.25

300

Tie Rod Ass'y | Included 300 to 300a

709401953

$116.00

320

Hex. Flange Elastic Nut M10

250100165

$0.70
