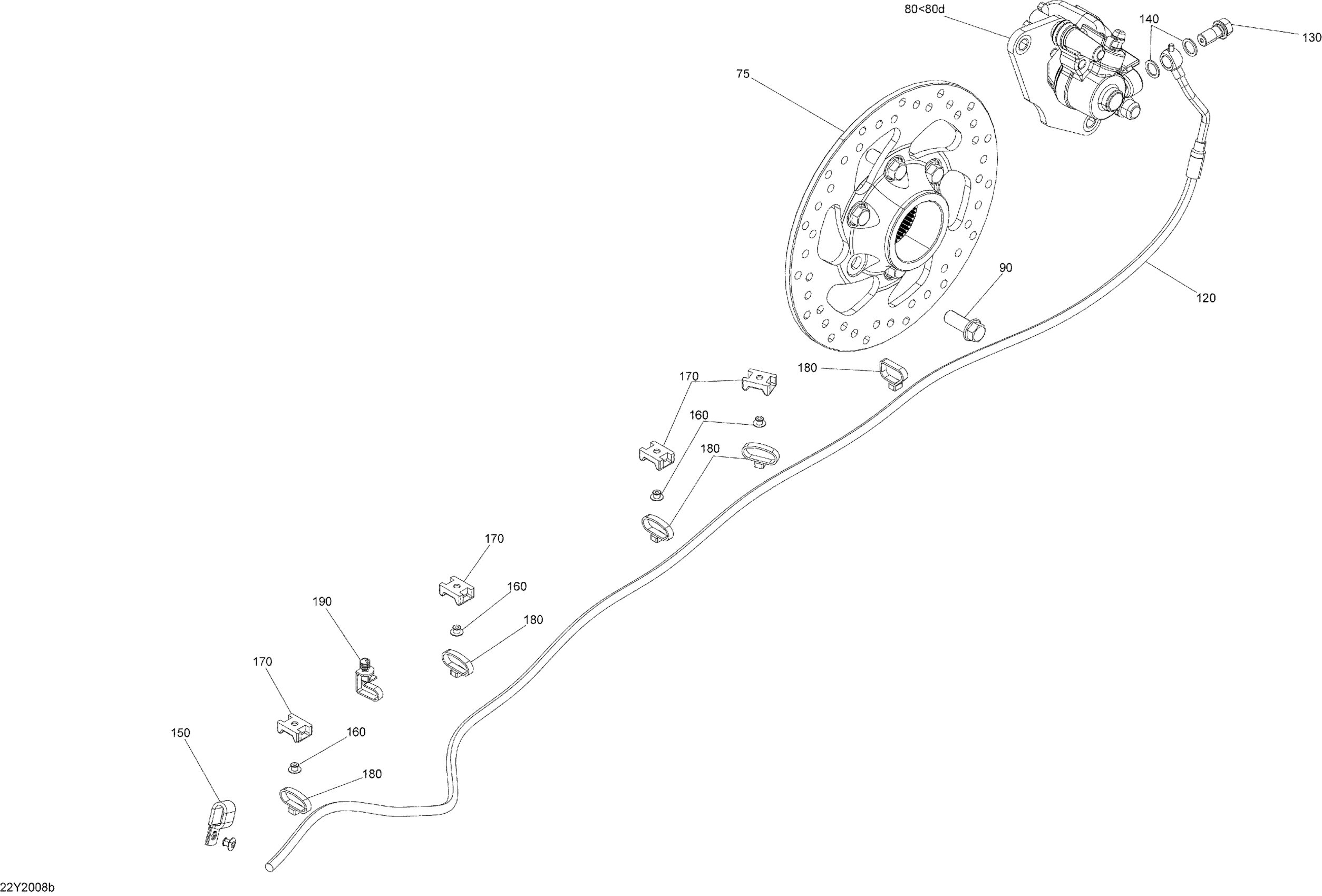

Can-Am RYKER STD 600 ACE, 2020 Hydraulic Brake, Rear Diagram

Description

Price

Rear Brake Disk

705601516

$128.00

80<80d

Rear Caliper | Included 400b to 400b5

705601566

$249.00

80a

Bleeding Screw

705600080

$15.22

80b

Sring/Boot/Bolt Kit

219800449

$24.00

80c

Rear Brake Pad Kit

219800448

$59.00

80d

Pin Set (2)

705600081

$19.20

Hex. Flange Screw M10 X 25

250001054

$12.48

130

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

140

Copper Washer

705601628

$4.34

150

Clamp

293650220

$0.85

160

Pop Rivet 3/16"

390402200

$0.26

170

Tie Rap Mount (screwable)

515176795

$5.11

180

Tie Wrap 368 mm

293750008

$0.85

190

Dart Tie Rap 200MM

710003168

$5.72
