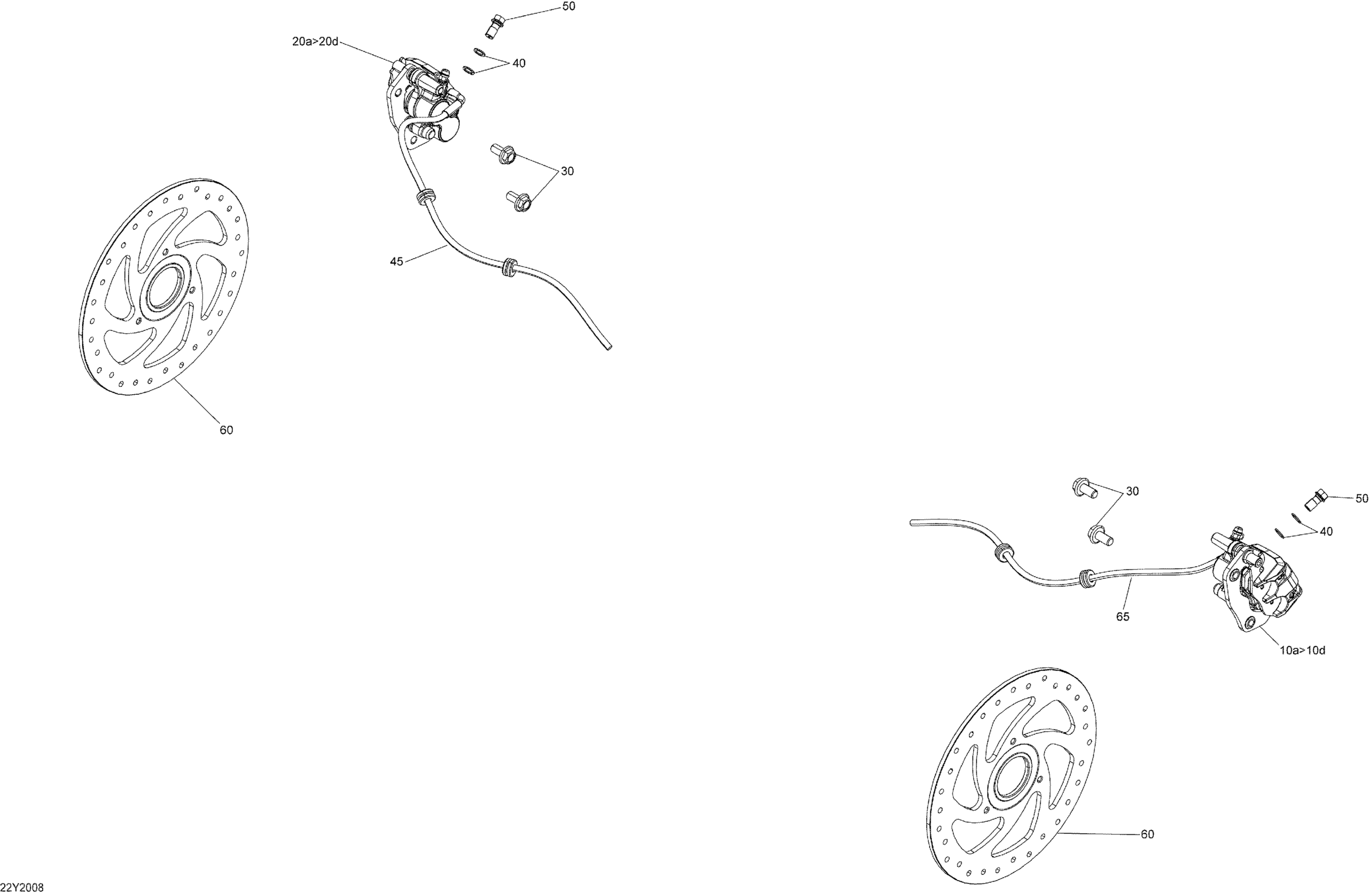

Can-Am RYKER STD 600 ACE, 2020 Hydraulic Brake - Front All Diagram

Description

Price

10<10d

LH Front Brake Caliper | Included 600a to 600a5

705601547

$232.99

10a

Sliding Pin Kit

715500337

$20.49

10b

LH Front Brake Pad Kit

219800445

$59.49

10c

Bleeding Screw

705600080

$16.87

10d

Spring-Boot and Bolt Kit

219800447

$23.99

20<20d

RH Front Brake Caliper | Included 600b to 600b5

705601548

$232.99

20a

Sliding Pin Kit

715500337

$20.49

20b

RH Front Brake Pad Kit

219800446

$59.49

20c

Bleeding Screw

705600080

$16.87

20d

Spring-Boot and Bolt Kit

219800447

$23.99

Hex. Flange Screw M10 X 20

250001134

$1.89

Copper Washer

705601628

$4.44

RH Front Caliper Hose

705601559

$78.49

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

Front Brake Disk

705601539

$87.49

LH Front Caliper Hose

705601560

$78.49
