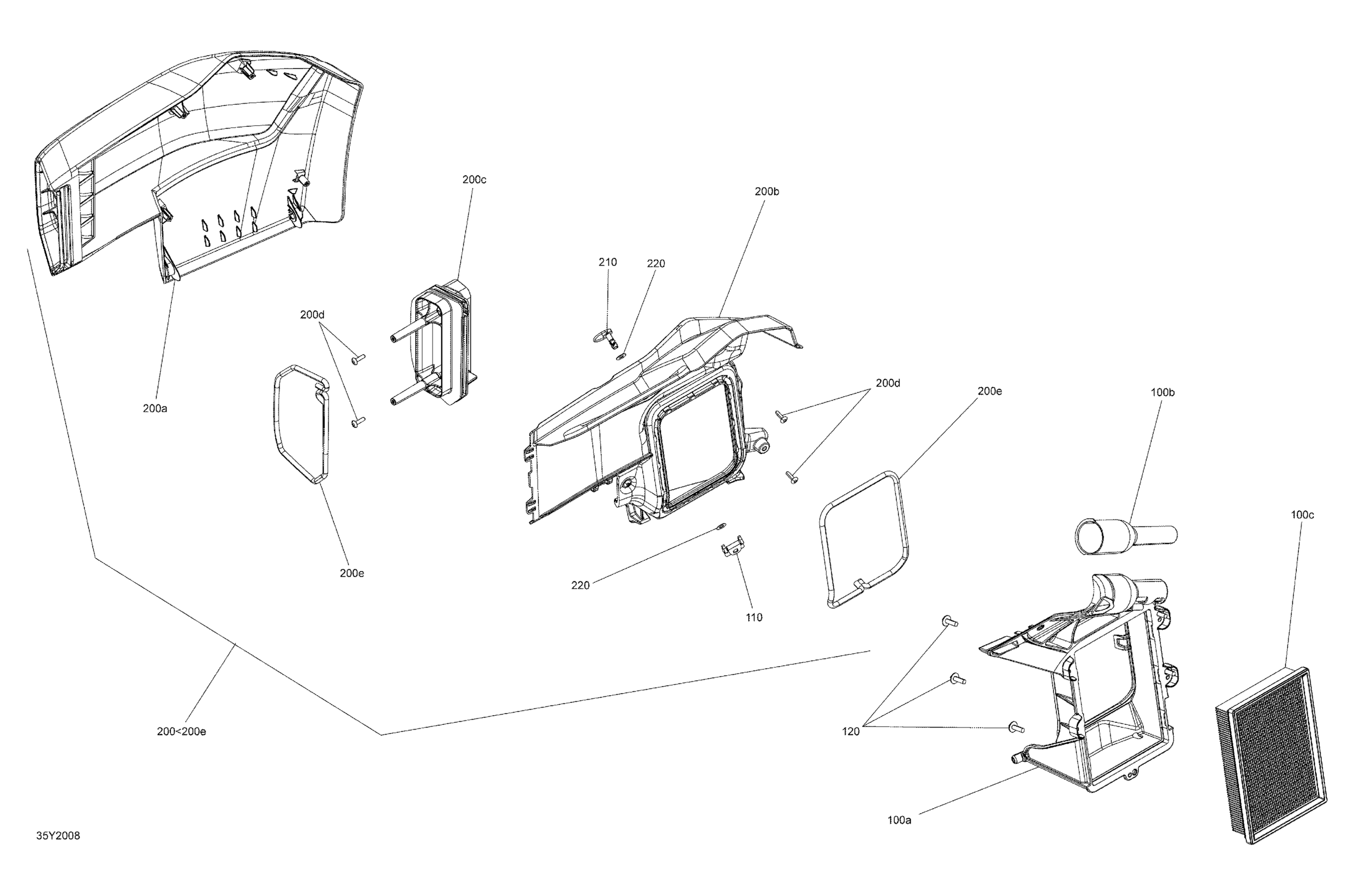

Can-Am RYKER STD 600 ACE, 2020 Air Intake CVT - Air Filter - Air Box Diagram

Description

Price

100a

Baseplate

706600370

$22.00

100b

Gaz Filler Neck

709001045

$22.00

100c

Air Filter

707800306

$46.00

110

Quarter Turn Nut

705002651

$3.84

120

Hex. Plastic Screw M4.8 X 16

243141630

$1.74

200<200e

Side Cover Ass'y

706600404

$145.00

200a

Not Available As Spare Part - Friction Washer

Unavailable

200b

Not Available As Spare Part - Friction Washer

Unavailable

200c

Not Available As Spare Part - Friction Washer

Unavailable

200d

Torx-Truss Pt K40 X 16

250000759

$1.74

200e

Neoprene Seal

707800817

$14.00

210

Quarter-Turn Screw

705013609

$15.00

220

Washer

705002650

$2.75
