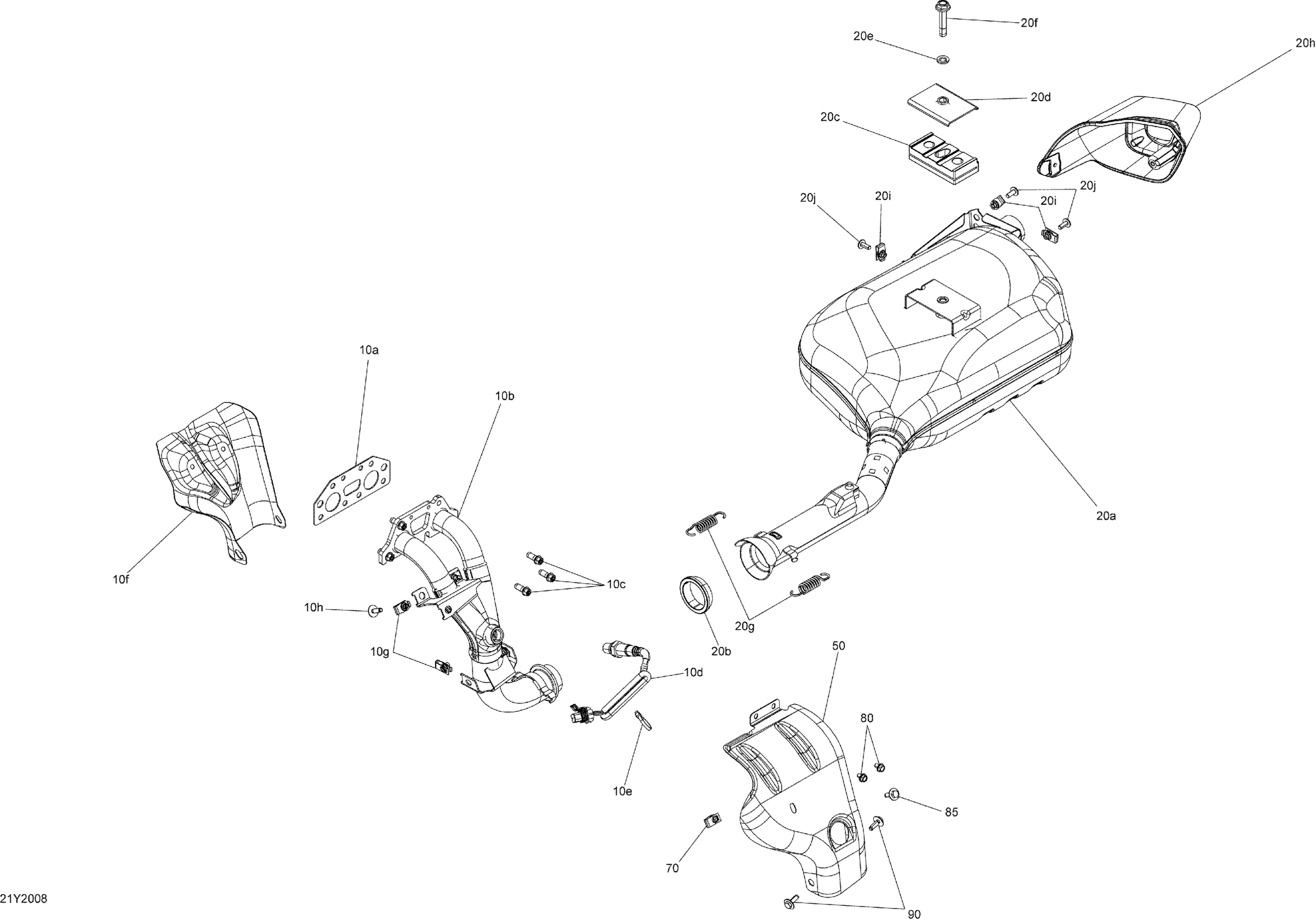

Can-Am RYKER STD 600 ACE, 2020 Exhaust System Diagram

#

Description
Price

10a

Exhaust Manifold Gasket

707601939

$7.94

10b

Exhaust Manifold

707601938

$154.99

10c

Hex. Flange Screw M8 X 20

250001089

$0.76

10d

Oxygen Sensor

707600872

$132.81

10e

Tie Wrap 368 mm

293750008

$0.97

10f

Deflector

707602311

$40.99

10g

Panel Nut M6 X 1.0

250100198

$1.99

10h

Hex Screw M6 X 20

250000965

$2.00

20a

Muffler

707602278

$1,091.99

20a

Muffler | Canada/USA

707602573

$1,091.99

20b

Exhaust Gasket

707601033

$13.04

20c

Vibration Damper

707603448

$15.28

20d

Plate Fastener

707602413

$17.59

20e

Helicoidal Lock Washer M10 | XT Models

234101601

$1.06

20f

Hex. Flange Screw M10 X 50

250001079

$2.19

20g

Spring

514055198

$6.01

20h

Carbon Black, Muffler End Piece

707602404

$23.99

20i

Panel Nut M6 X 1.0

250100198

$1.99

20j

Torx Truss Screw M6 X 16

250000348

$2.00

50

Deflector

707602313

$40.99

70

Panel Nut M6 X 1.0

250100198

$1.99

80

Hex. Forming Screw M6 X 10

210261050

$1.63

85

Hex Screw M6 X 20

250000965

$2.00

90

Hex Screw M6 X 20

250000965

$2.00
