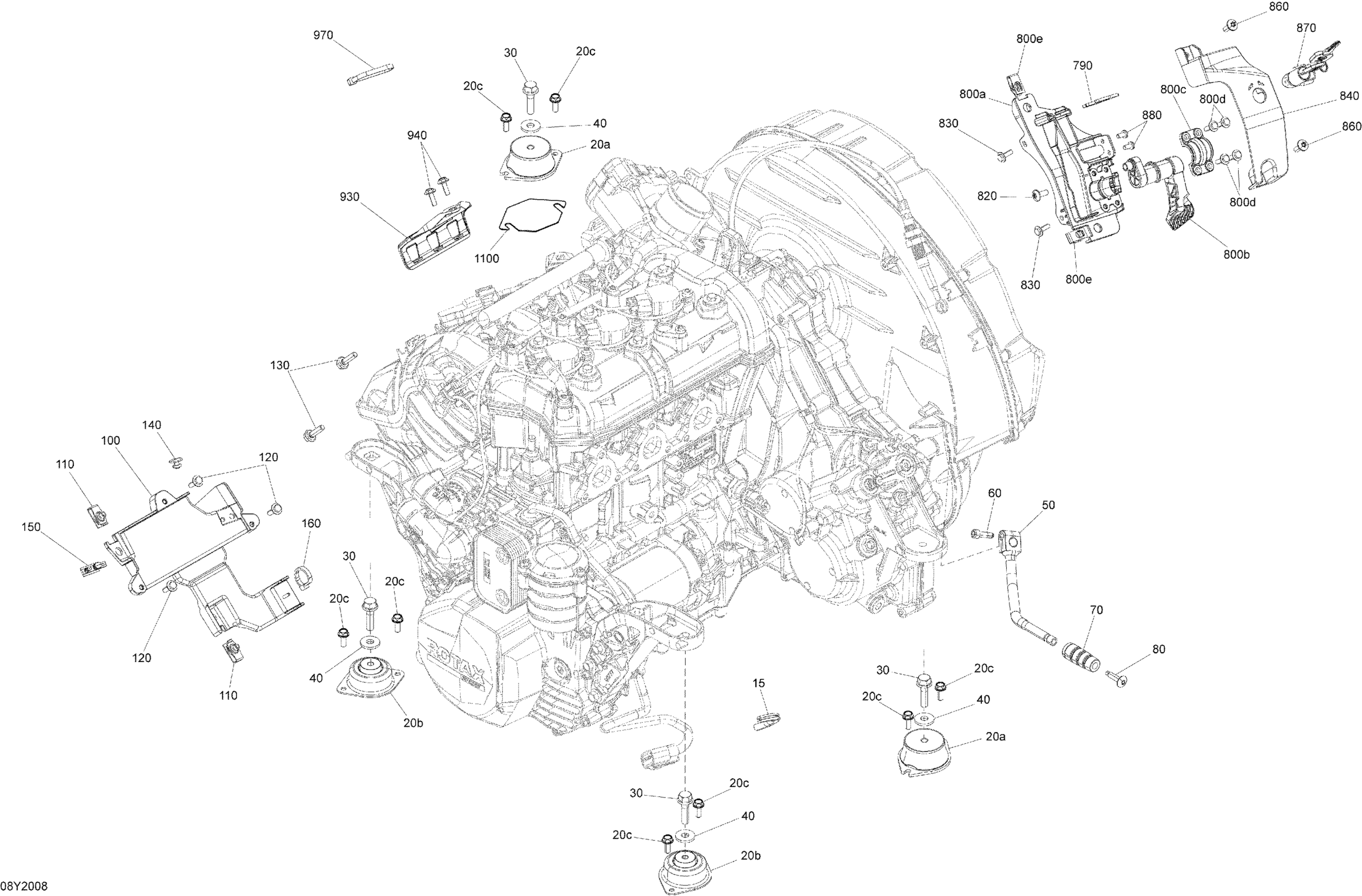

Can-Am RYKER STD 600 ACE, 2020 Engine Support and Park Diagram

#

Description
Price

15

Trim 1000Mm Long

219704354

$14.30

20a

Rubber Mount

512061145

$10.33

20b

Rubber Mount

512060448

$41.01

20c

Hex. Flange Screw M6 X 16

210261650

$1.40

30

Hex. Flange Screw S.GRIP M8 X 30

207583054

$1.70

40

Yellow, Washer

503183200

$2.91

50

Shift Lever

707002045

$88.99

60

Socket Head Screw Scotch Grip M6 X 20

250001077

$2.52

70

End Clutch Pedal

707000456

$8.89

80

Torx Screw M6 X 25 | XT Models

250000728

$4.15

100

Support Module

707002214

$10.49

110

Panel Nut M6 X 1.0

250100198

$1.99

120

Hex. Plastic Screw M4.8 X 16

243141630

$2.00

130

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

140

Pop Rivet 3/16"

390406500

$0.81

150

Clip Connector

515178223

$1.87

160

Tie Wrap 368 mm

293750008

$0.97

790

Bracket

707002273

$2.75

800a

Support Parking Brake

707002218

$15.49

800b

Lever Parking Brake

707002138

$19.09

800c

Clamp

707002240

$2.11

800d

Hex. Plastic Screw M4.8 X 16

243141630

$2.00

800e

Panel Nut M6 X 1.0

250100198

$1.99

820

Torx Head Screw M6 X 16

250000717

$2.00

830

Hex. Plastic Screw M4.8 X 16

243141630

$2.00

840

Cover

707002239

$4.23

840

Cover

707002241

$5.18

860

Torx Head Screw M6 X 16

250000717

$2.00

870

Padlock with Key

707000666

$23.10

880

Socket Head Screw M5 X 10

205951046

$2.31

930

Deflector

707002582

$16.49

940

Hex. Plastic Screw M4.8 X 16

243141630

$2.00

970

Tie Wrap 368 mm

293750008

$0.97

1100

Shim 1.0 MM

707002397

$2.43
