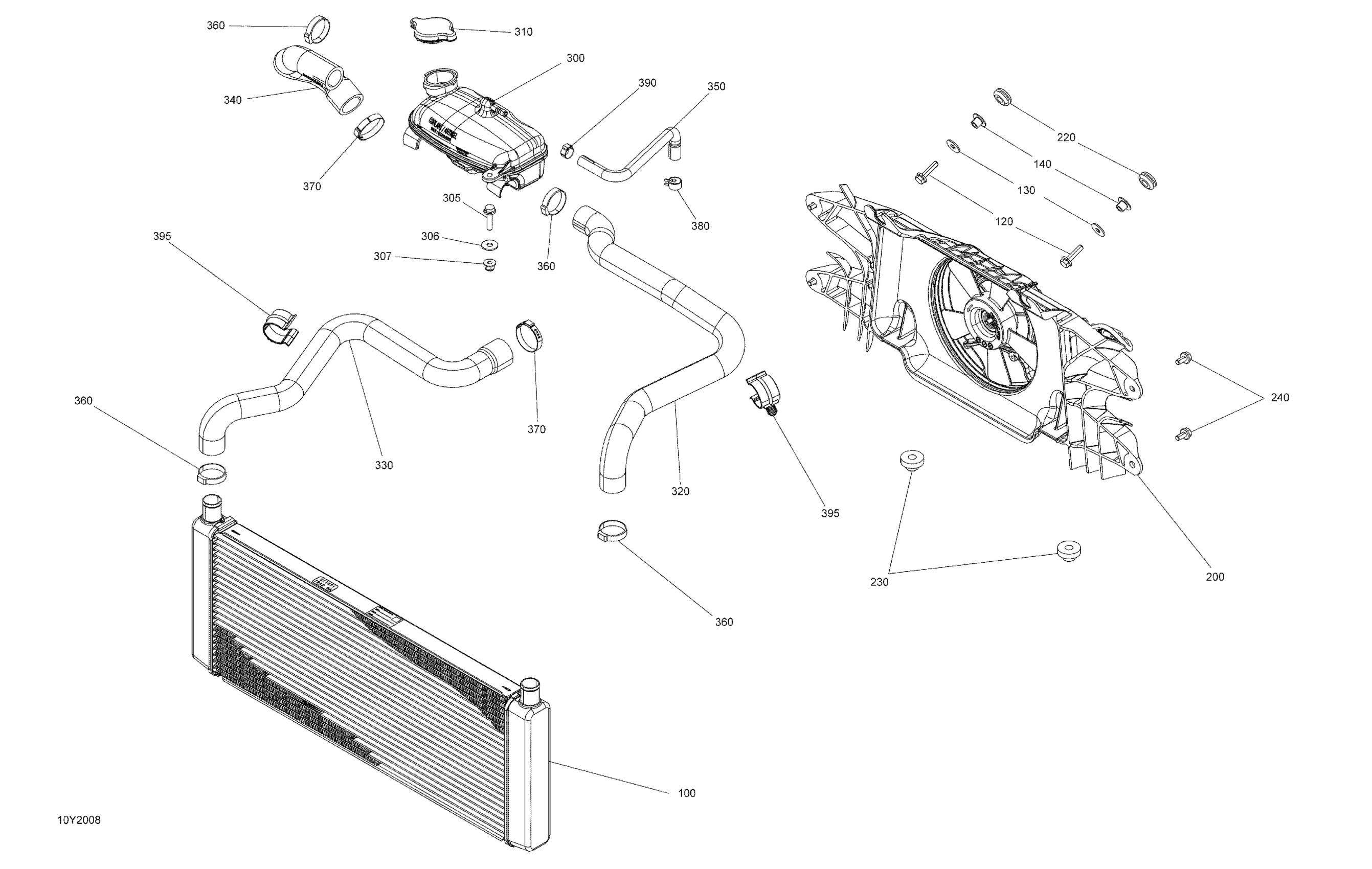

Can-Am On-Road 001 - RYKER STD 600 ACE, 2020 01- Cooling System Diagram

Description

Price

100

Radiator

709200724

$349.99

120

Hex. Flange Screw M6 X 25

207662534

$2.11

130

Flat Washer

250200082

$0.42

140

Bushing

709001288

$9.09

200

Fan Ass'y With Shroud

709200719

$219.99

220

Grommet

709000582

$4.69

230

Grommet

709200948

$8.89

240

Hex. Flange Screw M6 X 12

207661244

$2.11

300

Coolant Tank

709200963

$43.99

305

Hex. Flange Screw M6 X 25

207662534

$2.11

306

Flat Washer

250200082

$0.42

307

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

310

Radiator Pressure Cap

509000180

$20.49

320

Formed Cooling Hose

709200682

$31.99

330

Formed Cooling Hose

709200689

$31.99

340

Formed Cooling Hose

709200690

$15.99

350

Formed Cooling Hose

709200691

$12.49

360

Oetiker Clamp

293650141

$4.29

370

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

380

Universal Spring Clamp

513033029

$5.39

390

Oetiker Clamp

293650046

$2.89

395

Retainer

275500526

$4.55
