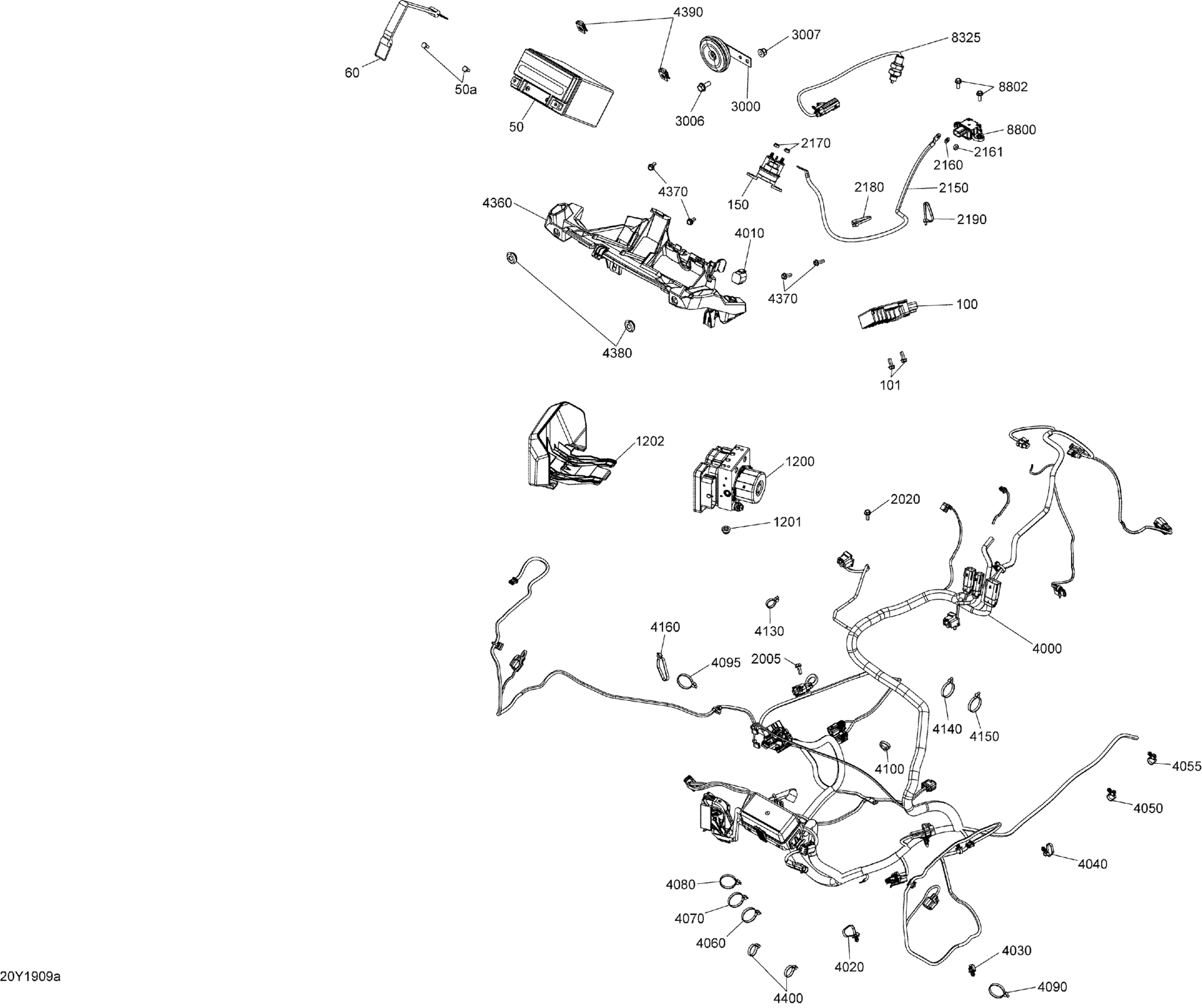

Can-Am RYKER STD 600 ACE, 2019 Electrical - System Diagram

#

Description
Price

50>50a

Battery 12 Amperes | Includes 50 to 50a

219800518

Unavailable

50a

Battery Bolt Kit

250000282

$2.95

60

Holding Strap

293850112

$14.27

100

Voltage Regulator

710006002

$175.00

101

Hex. Flange Screw M6 X 16

210261650

$1.22

150

Starter Relay

278003012

$35.07

1200

VCM Wet Prog & Grommet Module Kit | Includes 8h to 8h2

219800502

$1,210.00

1201

Shock Damper

710003279

$10.14

1202

VCM Module Protector

710005542

$8.00

2005

Hex. Flange Screw M6 X 16

210261640

$1.74

2020

Hex. Flange Screw M6 X 16

210261640

$1.74

2150

Starter Cable, #8

710005419

$8.00

2160

Stainless Flat Washer M6

234061600

$0.25

2161

Elastic Stop Nut M6

232561414

$1.55

2170

Hex. Elastic Stop Nut M6

232561600

$0.92

2180

Tie Wrap 368 mm

293750008

$0.85

2190

Tie Wrap 368 mm

293750008

$0.85

3000

Horn

710006157

$36.00

3006

Hex. Flange Screw M8 X 20

207682046

$1.82

3007

Hex. Elastic Flange Nut M8

233281416

$1.25

4000

Wiring Harness, Chassis

710006898

$630.00

4000

Wiring Harness, Chassis

710006897

$670.00

4010

Connector Plug

710004904

$8.55

4020

Dart Tie Rap 200MM

710003168

$5.72

4030

Dart Tie Rap 200MM

710003168

$5.72

4040

Dart Tie Rap 200MM

710003168

$5.72

4050

Dart Tie Rap 200MM

710003168

$5.72

4055

Dart Tie Rap 200MM

710003168

$5.72

4060

Tie Wrap 368 mm

293750008

$0.85

4070

Tie Wrap 368 mm

293750008

$0.85

4080

Tie Wrap 368 mm

293750008

$0.85

4090

Tie Wrap 368 mm

293750008

$0.85

4095

Tie Wrap 368 mm

293750008

$0.85

4100

Tie Wrap 368 mm

293750008

$0.85

4130

Tie Wrap 368 mm

293750008

$0.85

4140

Tie Wrap 368 mm

293750008

$0.85

4150

Tie Wrap 368 mm

293750008

$0.85

4160

Tie Wrap 368 mm

293750008

$0.85

4360

Front Electronic Component Support

710007891

$22.00

4370

Hex. Flange Screw M6 X 16

210261650

$1.22

4380

Grommet

705003264

$3.43

4390

Panel Nut M6 X 1.0

250100208

$1.07

4400

Tie Wrap 368 mm

293750008

$0.85

8325

Brake Switch

710008326

$50.00

8800

Yaw Rate Sensor

710005658

$166.12

8802

Hex. Flange Screw M6 X 16

210261650

$1.22
